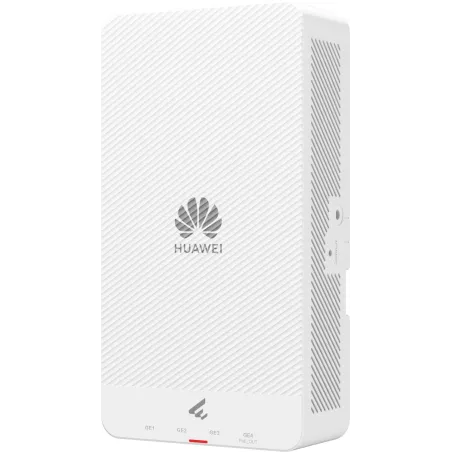

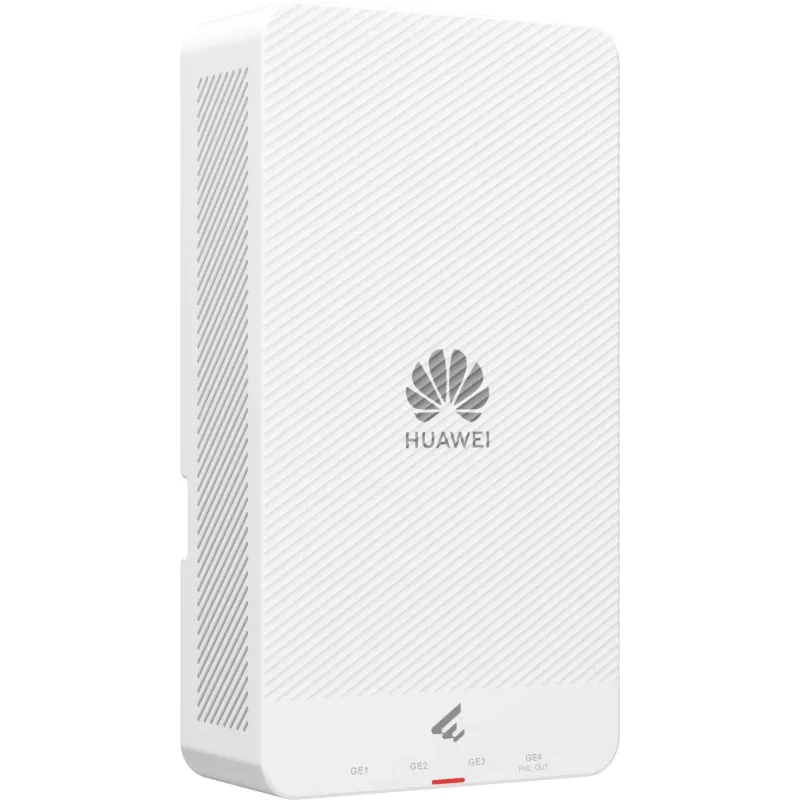

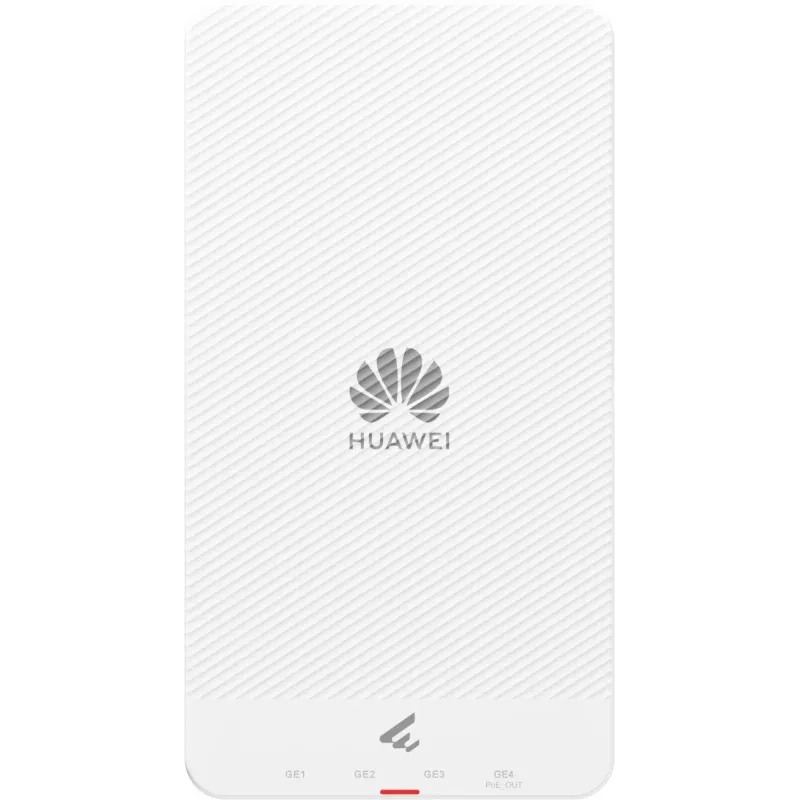

AP266 Huawei eKit Wall plate Access Point WIFI6 2x2 MIMO 2.975Gbps

AP266 Huawei eKit Product Specification

Product Overview

Huawei eKit AP266 Wall plate Wireless Access Point 802.11ax 2.975 Gbps Dual-radio Smart antenna, 1 Port POE Out, รองรับการ Managed ผ่าน Cloud

รองรับการ Managed ผ่าน Cloud/Stanalone

Technical specifications

Installation Type

Desk,Wall,Ceiling,Junction Box

Dimensions (Diameter x Height)

160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.)

Weight

0.23 kg

LED indicator

Indicates the power-on, startup, running, alarm, and fault states of the system.

Maximum power consumption [W]

9.4 W (excluding PoE OUT)

Power supply mode

PoE

Rated input voltage [V]

-

Input voltage range [V]

PoE: 802.3af

Service port surge protection [kV]

PoE ports: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B Non-PoE ports: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B

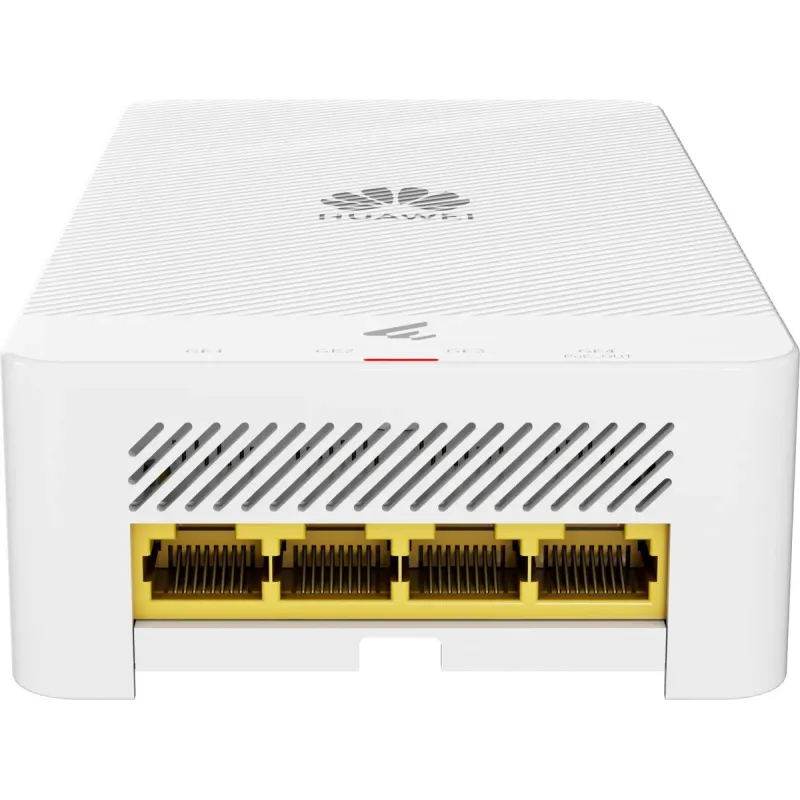

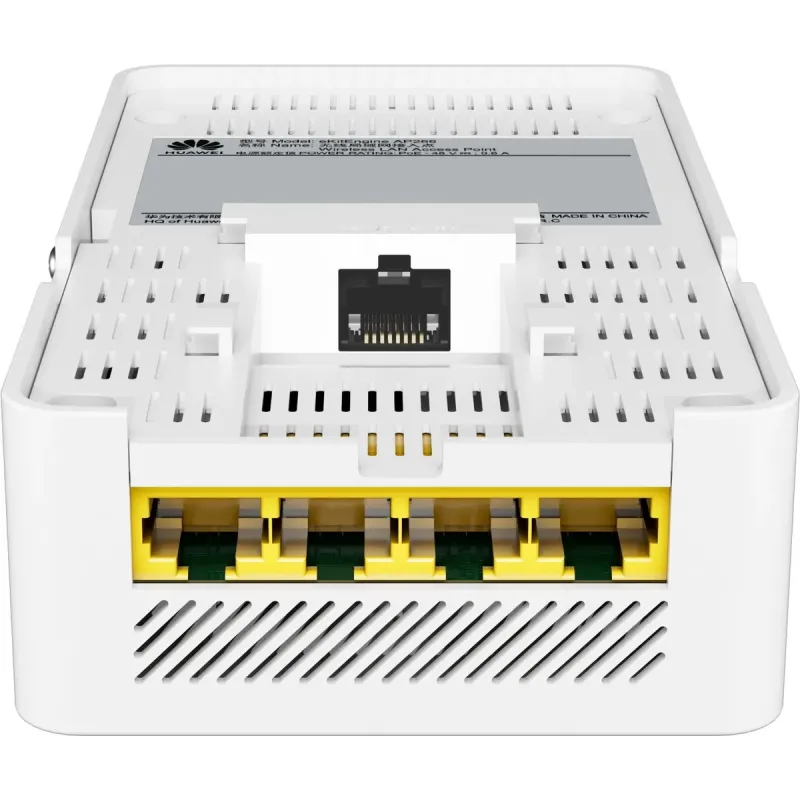

Physical ports on the entire device

Uplink: 1 x 10M/100M/GE electrical port
Downlink: 4 x 10M/100M/GE electrical ports

Bluetooth

-

Operating temperature

-10°C to +40°C

Storage temperature

-40°C to +70°C

Radio specifications

Radio number

Operating frequency band

2.4GHz,5GHz

MIMO spatial streams

-

Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax
5 GHz: 802.11a/n/ac/ac Wave 2/ax

Antenna type

Built-in smart antennas

Antenna gain

2.4 GHz: 4 dBi
5 GHz: 4 dBi

Maximum transmit power

2.4 GHz: 23 dBm (combined power)
5 GHz: 23 dBm (combined power)

Maximum number of SSIDs for each radio

16

Maximum number of users

≤ 128
NOTE: The actual number of users varies according to the environment.

Cloud-based management mode

WLAN features

Compliance with IEEE 802.11ax and compatibility with IEEE 802.11a/b/g/n/ac/ac Wave 2
Maximum ratio combining (MRC)
Space time block code (STBC)
Cyclic Delay Diversity (CDD)/Cyclic Shift Diversity (CSD)
Beamforming
Multi-user multiple-input multiple-output (MU-MIMO)
Orthogonal frequency division multiple access (OFDMA)
Compliance with 1024-quadrature amplitude modulation (QAM) and compatibility with 256-QAM, 64-QAM, 16-QAM, 8-QAM, quadrature phase shift keying (QPSK), and binary phase shift keying (BPSK)
Target wake time (TWT)
Low-density parity-check (LDPC)
Frame aggregation, including A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
802.11 dynamic frequency selection (DFS)
Priority mapping and scheduling that are compliant with Wi-Fi multimedia (WMM) to implement priority-based data processing and forwarding
Automatic and manual rate adjustment (the rate is adjusted automatically by default)
WLAN channel management and channel rate adjustment
NOTE
For detailed management channels, see the Country Codes & Channels Compliance.
Automatic channel scanning and interference avoidance
Service set identifier (SSID) hiding
Signal sustain technology (SST)
Unscheduled automatic power save delivery (U-APSD)

Network features

Compliance with IEEE 802.3ab
Auto-negotiation of the rate and duplex mode and automatic switchover between the Media Dependent Interface (MDI) and Media Dependent Interface Crossover (MDI-X)
Compliance with IEEE 802.1q
SSID-based VLAN assignment
DHCP client, obtaining IP addresses through DHCP
STA isolation in the same VLAN
Access control lists (ACLs)
Unified authentication on the Cloud management platform
Network Address Translation (NAT)

QoS features

Priority mapping and scheduling that are compliant with WMM to implement priority-based data processing and forwarding
WMM parameter management for each radio
WMM power saving
Priority mapping for upstream packets and flow-based mapping for downstream packets
Queue mapping and scheduling
User-based bandwidth limiting
Airtime scheduling
Air interface HQoS scheduling

Security features

Open system authentication
WEP authentication/encryption using a 64-bit, 128-bit, 152-bit or 192-bit encryption key
WPA2-PSK authentication and encryption (WPA2-Personal)
WPA2-802.1X authentication and encryption (WPA2-Enterprise)
WPA3-SAE authentication and encryption (WPA3-Personal)
WPA3-802.1X authentication and encryption (WPA3- Personal)
WPA-WPA2 hybrid authentication
WPA2-WPA3 hybrid authentication
802.1X authentication, MAC address authentication, and Portal authentication
DHCP snooping
Dynamic ARP Inspection (DAI)
IP Source Guard (IPSG)

Maintenance features

Unified management and maintenance on the Cloud management platform
Automatic login and configuration loading, and plug-and-play (PnP)
Batch upgrade
Telnet
STelnet using SSHv2
SFTP using SSHv2
Web-based local AP management through HTTP or HTTPS
Real-time configuration monitoring and fast fault locating using the NMS
System status alarm
Network Time Protocol (NTP)

รับประกัน

3 ปี
