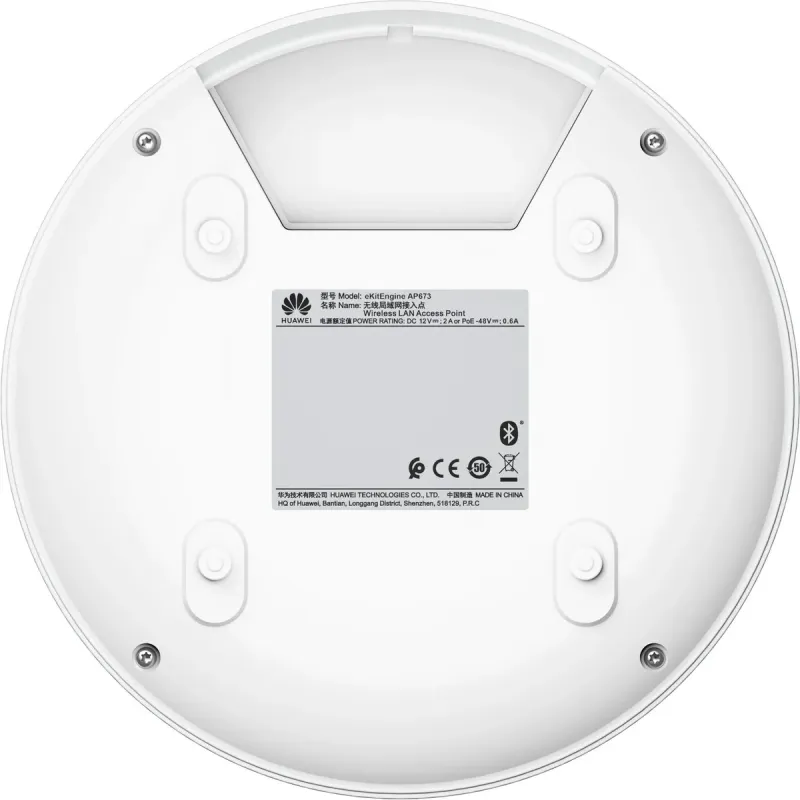

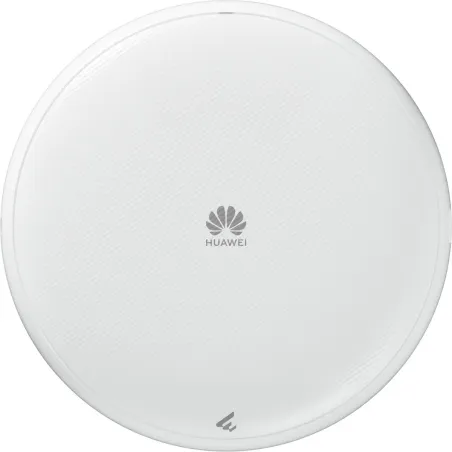

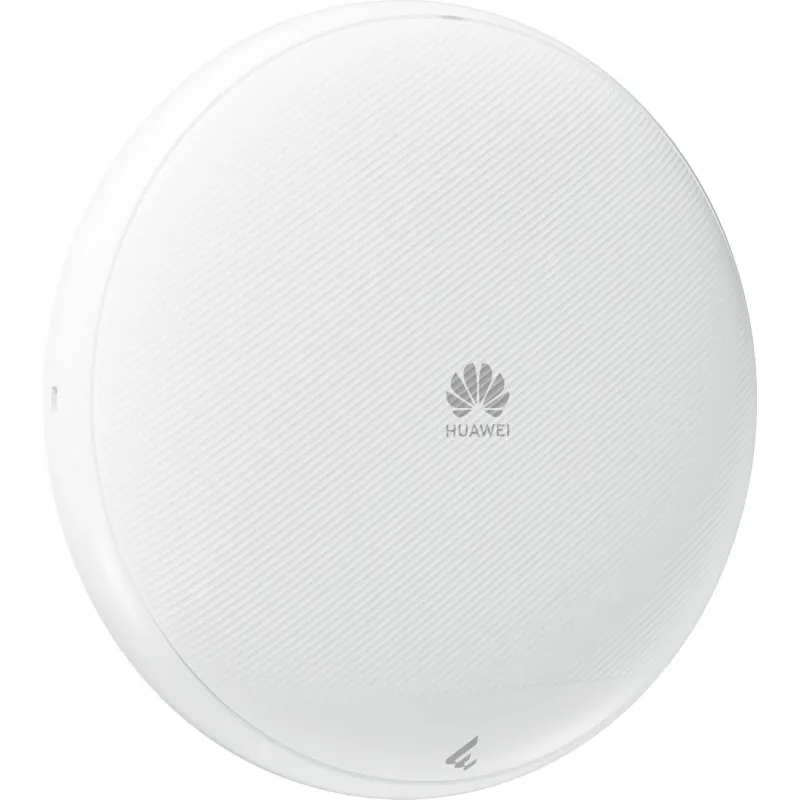

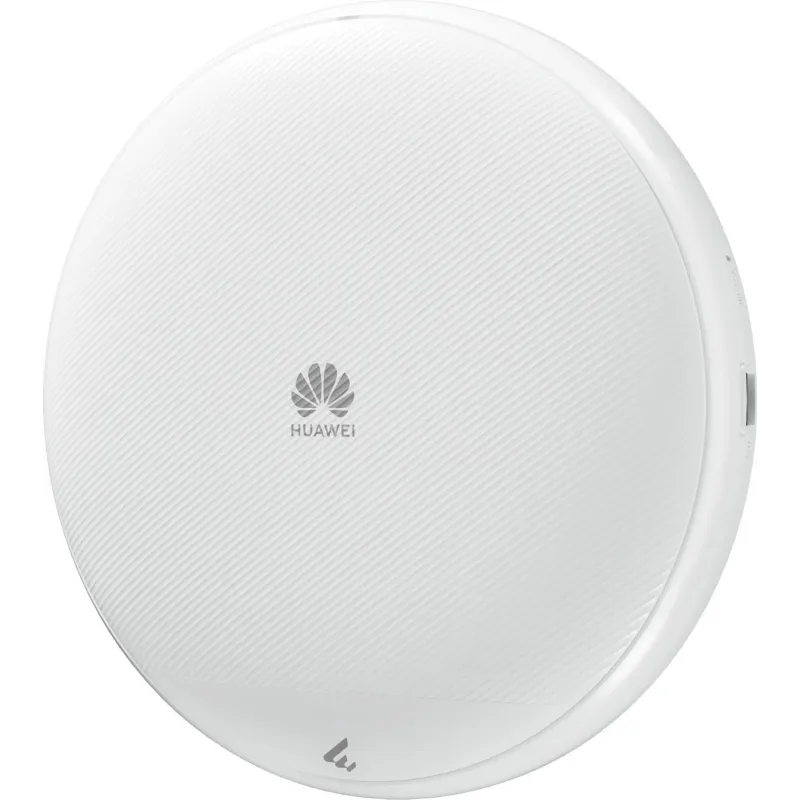

    AP673 Huawei eKit Access Point WIFI7 Tri-Radio 4x4 13.66Gbps

    Huawei

    Huawei eKit AP673 Wireless Access Point 802.11be Tri-Radio 2.4/5/6GHz 4x4 MIMO 13.66Gbps, Smart Antenna, Port LAN 5GE, Managed ผ่าน Cloud/Standalone

    ฿7,990.00
    ยังไม่ได้รวมภาษี
    จำนวน
    20 รายการ


    สอบถามข้อมูลสินค้าเพิ่มเติม

    LINE ID: @sysnet  โทร: 02 102 4284

    Click ต้องการใบเสนอราคา

    close

    แบบฟอร์มขอใบเสนอราคา



    Rating:
    (0)
    รายละเอียด

    Huawei eKitEngine AP673 Access Point Datasheet



    Huawei eKit AP673

    Settled AP | Wi-Fi 7 | 13.66 Gbps device rate | Tri-radio | 300 access users recommended | Max. 1024 access users | 26 dBm transmit power | 1 x 100M/GE/2.5GE/5GE electrical port, 1 x 10M/100M/GE electrical port, 1 x USB port | Smart antenna | 30 m optimal coverage range

    AP673 Huawei eKit Product Specification

    Product Overview

    Huawei eKit AP673 Huawei eKit AP673 Wireless Access Point 802.11be Tri-Radio 2.4/5/6GHz 13.66Gbps, Smart Antenna, Port LAN Multi-Gig 1/2.5/5GE

    รองรับการ Managed ผ่าน Cloud/Standalone

    Technical specifications

    Installation Type

    Wall,Ceiling,T-Rail

    Dimensions (Diameter x Height)

    220 mm x 45 mm (8.66 in. x 1.77 in.)

    Weight

    0.47 kg

    LED indicator

    Indicates the power-on, startup, running, alarm, and fault states of the system.

    Maximum power consumption [W]

    21.1 W (excluding USB)

    Power supply mode

    DC adapter,PoE

    Rated input voltage [V]

    12 V

    Input voltage range [V]

    DC: 12 V ± 10% PoE: 802.3at

    Service port surge protection [kV]

    PoE port: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion C

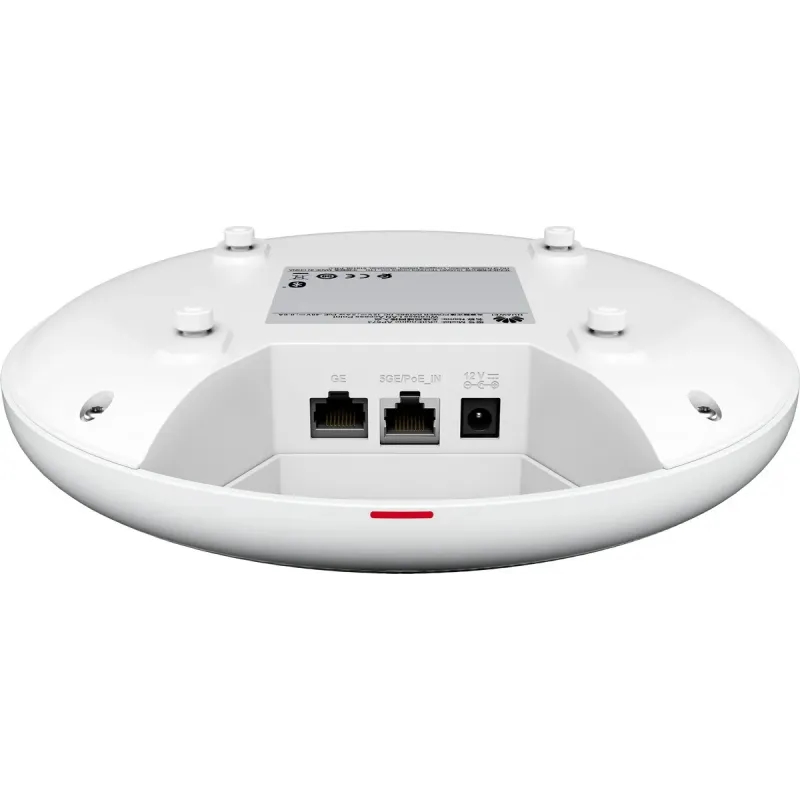

    Physical ports on the entire device

    1 x 100M/GE/2.5GE/5GE electrical port
    1 x 10M/100M/GE electrical port
    1 x USB port
    NOTE: The 5GE electrical port supports PoE IN.

    BLE

    BLE5.2

    Operating temperature

    -10°C to +50°C

    Storage temperature

    -40°C to +70°C

    Radio specifications

    Radio number

    3

    Operating frequency band

    2.4GHz,5GHz, 6GHz

    MIMO spatial streams

    Radio 0 (2.4 GHz): 2x2
    Radio 1 (5 GHz): 2x2
    Radio 2 (6 GHz): 4x4

    Wi-Fi standard

    2.4 GHz: 802.11b/g/n/ax/be
    5 GHz:802.11a/n/ac/ac Wave 2/ax/be

    Antenna type

    Built-in smart antennas

    Antenna gain

    2.4 GHz: 4 dBi
    5 GHz: 5 dBi
    6 GHz: 5 dBi

    Maximum transmit power

    2.4 GHz: 23 dBm (combined power)
    5 GHz: 23 dBm (combined power)
    6 GHz: 26 dBm (combined power)

    Maximum number of SSIDs for each radio

    30

    Maximum number of users

    ≤ 1024
    NOTE: The actual number of users varies according to the environment.

    Cloud-based management mode

    WLAN features

    Compliance with IEEE 802.11be and compatibility with IEEE 802.11a/b/g/n/ac/ax
    Maximum ratio combining (MRC)
    Space time block code (STBC)
    Cyclic Delay Diversity (CDD)/Cyclic Shift Diversity (CSD)
    Beamforming
    Multi-user multiple-input multiple-output (MU-MIMO)
    Orthogonal frequency division multiple access (OFDMA)
    Compliance with 4096-quadrature amplitude modulation (QAM) and
    compatibility with 1024-QAM, 256-QAM, 64-QAM, 16-QAM, 8-QAM, quadrature
    phase shift keying (QPSK), and binary phase shift keying (BPSK)
    Low-density parity-check (LDPC)
    Frame aggregation, including A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
    802.11 dynamic frequency selection (DFS)
    Short guard interval (GI) in 20 MHz, 40 MHz, 80 MHz, and 160 MHz modes
    Wi-Fi Multimedia (WMM) for priority-based data processing and forwarding
    WLAN channel management and channel rate adjustment
    NOTE
    For detailed management channels, see the Country Codes & Channels Compliance.
    Automatic channel scanning and interference avoidance
    Service set identifier (SSID) hiding configuration for each AP, supporting Chinese SSIDs
    Signal sustain technology (SST)
    Unscheduled automatic power save delivery (U-APSD)
    Automatic AP onboarding
    802.11k and 802.11v smart roaming
    802.11r fast roaming (≤ 50 ms)
    Advanced cellular coexistence (ACC), minimizing the impact of interference from cellular networks

    Network features

    Compliance with IEEE 802.3ab
    Auto-negotiation of the rate and duplex mode and automatic switchover between the Media Dependent Interface (MDI) and Media Dependent Interface Crossover (MDI-X)
    Compliance with IEEE 802.1q
    SSID-based VLAN assignment
    DHCP client, obtaining IP addresses through DHCP
    STA isolation in the same VLAN
    Access control lists (ACLs)
    Unified authentication on the Cloud management platform
    Network Address Translation (NAT)

    QoS features

    Priority mapping and scheduling that are compliant with WMM to implement priority-based data processing and forwarding
    WMM parameter management for each radio
    WMM power saving
    Priority mapping for upstream packets and flow-based mapping for downstream packets
    Queue mapping and scheduling
    User-based bandwidth limiting
    Airtime scheduling
    Air interface HQoS scheduling

    Security features

    Open system authentication
    WEP authentication/encryption using a 64-bit, 128-bit, 152-bit or 192-bit encryption key
    WPA2-PSK authentication and encryption (WPA2-Personal)
    WPA2-802.1X authentication and encryption (WPA2-Enterprise)
    WPA3-SAE authentication and encryption (WPA3-Personal)
    WPA3-802.1X authentication and encryption (WPA3- Personal)
    WPA-WPA2 hybrid authentication
    WPA2-WPA3 hybrid authentication
    802.1X authentication, MAC address authentication, and Portal authentication
    DHCP snooping
    Dynamic ARP Inspection (DAI)
    IP Source Guard (IPSG)

    Maintenance features

    Unified management and maintenance on the Cloud management platform
    Automatic login and configuration loading, and plug-and-play (PnP)
    Batch upgrade
    Telnet
    STelnet using SSHv2
    SFTP using SSHv2
    Web-based local AP management through HTTP or HTTPS
    Real-time configuration monitoring and fast fault locating using the NMS
    System status alarm
    Network Time Protocol (NTP)

    รับประกัน

    3 ปี



    รายละเอียดสินค้า
    20 รายการ

    ข้อมูลสินค้า

    ลักษณะงาน Wireless
    กระจายสัญญาณ WIFI
    ความเร็ว มาตรฐาน WIFI
    WIFI-7 (be) 11Gbps+
    ย่านความถี่
    Tri-Band 2.4/5/6GHz
    รองรับ Controller
    Cloud Controller
