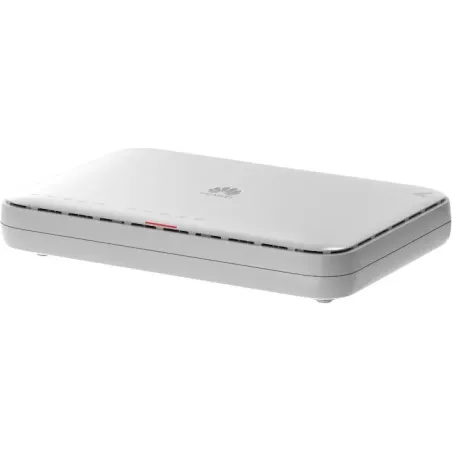

AR303 Router Huawei eKit Product Specification
|
|
Product Overview
|
Huawei eKit AR303 NetEngine Enterprise Router, รองรับ Bandwidth 1Gbps, 4 Port Lan Gigabit, Build-In Firewall, IPS, URL Filterling, VPN, 200 Device
|
| Packet forwarding rate |
1Mpps |
| Number of connected terminals |
200 |
| Installation type |
•Work bench
•Against the wall |
| Dimensions without packaging (H x W x D) [mm(in.)] |
•Basic dimensions: 38.0 mm x 240.0 mm x 161.5 mm (1.5 in. x 9.45 in. x 6.36 in.)
•Maximum dimensions: 41.4 mm x 240.0 mm x 161.5 mm (1.63 in. x 9.45 in. x 6.36 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] |
90 mm x 370 mm x 297 mm (3.54 in. x 14.57 in. x 11.69 in.) |
| Weight with packaging [kg(lb)] |
1.18 kg (2.60 lb) |
| Weight without packaging [kg(lb)] |
0.58 kg (1.28 lb) |
| Console port |
RJ45 |
| RTC |
Supported |
| Typical power consumption [W] |
9 W |
| Maximum power consumption [W] |
12 W |
| Power supply mode |
AC external |
| Number of power modules |
1 |
| Rated input voltage [V] |
110 V to 220 V, 50 Hz/60 Hz |
| Input voltage range [V] |
90 V to 270 V, 45 Hz to 65 Hz |
| Maximum input current [A] |
0.8 A |
| Maximum output power [W] |
24 W |
| LAN ports |
4 x GE electrical interfaces |
| WAN ports |
1 x GE Combo WAN |
| Long-term operating temperature [°C(°F)] |
0°C to 40°C (32°F to 104°F) NOTE: When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] |
-40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] |
5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] |
< 5000 m (16404.2 ft.) |
| IP rating |
IP20 |
| Environmental standards compliance |
RoHS REACH WEEE |
| Cloud Management |
Not Supported |
Software Features and Protocols
|
|
Basic functions
|
DHCP server/client/relay, PPPoE server/client, NAT, and sub-interface management
|
|
LAN
|
IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, VLAN management, VLAN aggregation, MAC address management, STP, etc.
|
|
IPv4 unicast routing
|
Static route, routing policy, RIP, OSPF, IS-IS, and BGP
|
|
IPv6 tunneling
|
Manual tunnel, automatic tunnel, GRE tunnel, IPv6 over IPv4 tunnel, 6to4 tunnel, and ISATAP
|
|
IPv6 unicast routing
|
Static routes, routing policy, RIPng, OSPFv3, IS-ISv6, and BGP4+
|
|
Multicast
|
IGMPv1, IGMPv2, IGMPv3, PIM SM, PIM DM, MSDP, MBGP, IPv6 PIM, and MLD
|
|
VPN
|
IPsec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, L2TPv3 VPN
|
|
QoS
|
DiffServ mode, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance, congestion management, HQoS, MQC (traffic classifier, traffic behavior, and traffic policy), level-3 traffic scheduling and shaping (HQoS), and smart application control (SAC)
|
|
Security
|
ACLv4/v6, domain-based stateful firewall, 802.1X authentication, MAC address authentication, Portal authentication, and AAA, RADIUS, HWTACACS, PKI,broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR,blacklist, SM series cryptographic algorithms, online behavior management, and URL filtering
|
|
Management and maintenance
|
Upgrade management, device management, Web, GTL, SNMPv1/v2c/v3, RMON, NTP, CWMP, Auto-Config, email/USB/DHCP-based deployment,NETCONF/YANG, CLI, NetStream, TWAMP Light, IP FPM, TCP FPM, IP accounting, and NQA
|
รับประกัน
|
3 ปี
|
