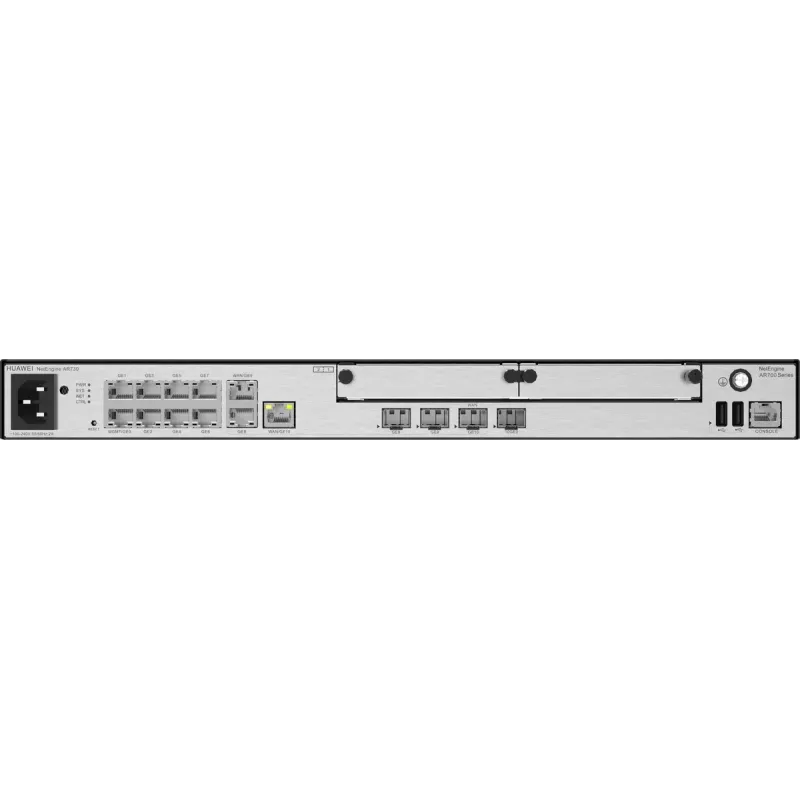

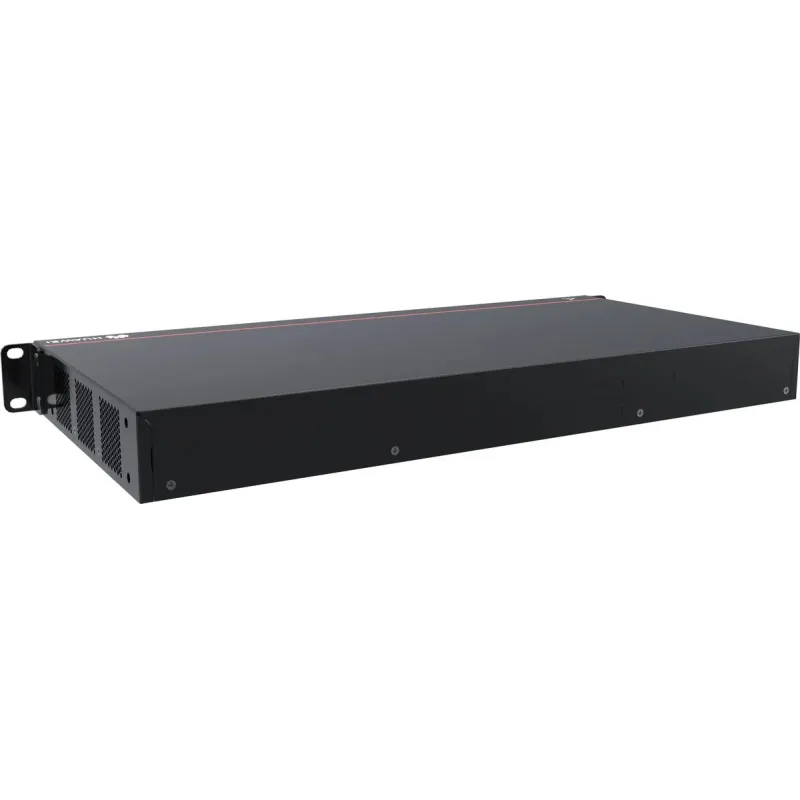

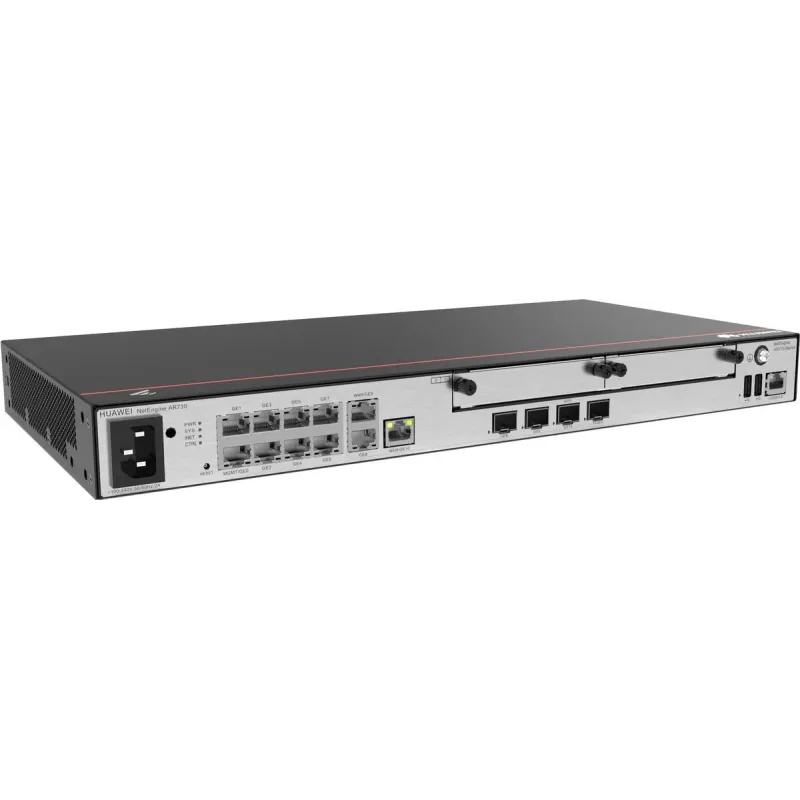

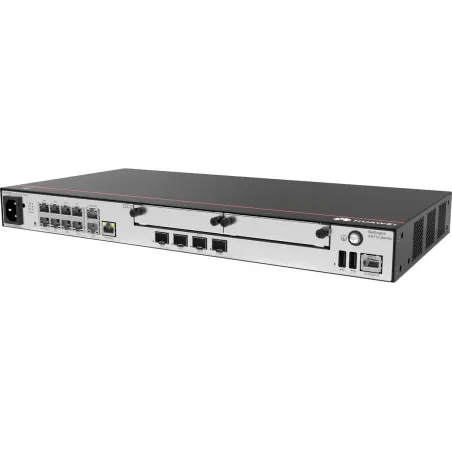

AR730 Huawei eKit Enterprise Router 2 WAN 6Gbps, Firewall, VPN

AR730 Router Huawei eKit Product Specification

Product Overview

Huawei eKit AR730 Enterprise Router 2 WAN, รองรับ Bandwidth 6Gbps, 8 Port Lan Gigabit, Build-In Firewall, IPS, URL Filterling, VPN

รองรับการ Managed ผ่าน Cloud

Technical specifications

Processor

ARM64 4-core

Forwarding performance

9 Mpps to 25 Mpps

Number of connected terminals

1200

Outbound bandwidth

6 Gbit/s

Fixed WAN ports

2 x GE combo ports, 1 x 10GE optical port (compatible with GE optical)

Fixed LAN ports

1*GE combo port, 8 x GE electrical ports (can be switched to WAN ports)

Serial auxiliary or console port

1 x RJ45 console serial port

USB ports

2 x USB ports

Memory

4 GB

Flash***

1 GB

Dimensions (H x W x D)

44.4 mm x 442.0 mm x 220.4 mm

Weight (unconfigured)

3.2 kg

Required space in a rack

1 U

Rated input voltage (AC)

100 V to 240 V

Maximum power consumption

33 W

Fan module

Built-in unpluggable fan module

Operating temperature

0°C to 45°C

Storage temperature

–40°C to +70°C

Software Features and Protocols

Basic functions

DHCP server/client/relay, PPPoE server/client, NAT, and sub-interface management

LAN

IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, VLAN management, VLAN aggregation, MAC address management, STP, etc.

WLAN (AC)

AP management (AC discovery, AP access, and AP management), CAPWAP protocol, WLAN user management, WLAN radio management (802.11a/b/g/n/ac), WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/key management)

IPv4 unicast routing

Routing policy, static route, RIP, OSPF, IS-IS, and BGP

IPv6 unicast routing

Static route, routing policy, RIPng, OSPFv3, IS-ISv6, and BGP4+

Basic IPv6 functions

IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, ICMPv6, DNSv6, and DHCPv6

IPv6 tunneling

Manual tunnel, automatic tunnel, GRE tunnel, 6over4 tunnel, 6to4 tunnel, and ISATAP

Multicast

IGMPv1, IGMPv2, IGMPv3, PIM SM, PIM DM, MSDP, MBGP, IPv6 PIM, and MLD

MPLS

LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, and TE FRR

VPN

IPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, and L2TPv3 VPN

QoS

DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance, congestion management, HQoS, MQC (traffic classifier, traffic behavior, and traffic policy), hierarchical QoS, and smart application control (SAC)

WAN optimization

Multi-fed and selective receiving, per-packet load balancing

WAN optimization

Multi-fed and selective receiving, per-packet load balancing

Security

ACLv4/v6, domain-based stateful firewall, 802.1X authentication, MAC address authentication, Portal authentication, AAA, RADIUS, HWTACACS, PKI, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, attack source tracing, online behavior management, IPS, and URL filtering

Management and maintenance

Upgrade management, device management, web system, GTL, SNMP (v1/v2c/v3), RMON, NTP, CWMP, Auto-Config, email/USB/DHCP-based deployment, NETCONF/YANG, CLI, NetStream, TWAMP, IP FPM, TCP FPM, IP accounting, and NQA

รับประกัน

3 ปี
