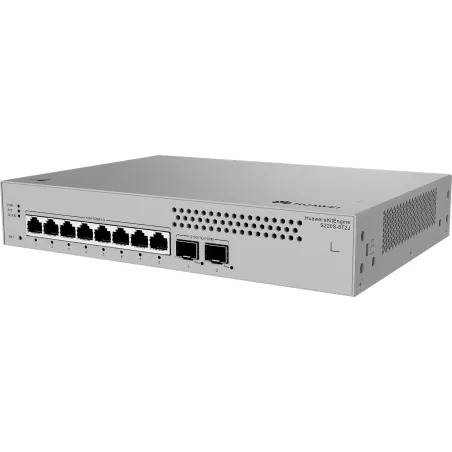

S220S-8T2J Huawei eKit L2-Managed Switch 8 Port Gigabit

S220S-8T2J Huawei eKit Product Specification

Product Overview

Huawei eKit S220S-8T2J L2-Managed Switch 8 Port Gigabit, 2 Port SFP 2.5Gbps, รองรับ VLAN, MSTP, IGMP Snooping, DHCP Snooping, ACL, Port Isolate

รองรับการ Managed ผ่าน Cloud, Standalone

Technical specifications

Switching capacity

26 Gbps

Packet forwarding rate

19 Mpps

Downlink port

8 x 10/100/1000BASE-T ports

Uplink port

2 x 2.5GE SFP ports

Dimensions (H x W x D)

43.6 mm x 250 mm x 180 mm

Chassis height

1 U

Maximum power consumption

10.94 W

Rated input voltage

AC input: 100 V AC to 240 V AC, 50/60 Hz

Long-term operating temperature

–5°C to +40°C (0 m to 1800 m)

Storage temperature

–40°C to +70°C

Operating humidity

5% RH to 95% RH, non-condensing

Service Feature

MAC address entry

Complies with the IEEE 802.1d standard
16K MAC address entries at maximum
Static, dynamic, and blackhole MAC address entries
Automatic MAC address learning and aging

VLAN features

4094 VLANs

Ethernet ring protection

ERPS (G.8032)
STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)

Multicast

IGMPv1/v2/v3 and IGMPv1/v2/v3 snooping

Reliability

Link Aggregation Control Protocol (LACP)
Storm control

QoS/ACL

Rate limiting on packets sent and received by an interface
IPv4 access control list (ACL)
Interface-based traffic policing
Eight queues on each interface
Packet filtering

Security features

Defense against DoS, ARP, and ICMP attacks
Secure Boot
Port isolation
Blackhole MAC address entries
AAA authentication
CPU protection
DHCP snooping

Management and maintenance

Cloud management
Web system
SSH v2.0
HTTPS
LLDP
System logs and multi-level alarms
IEEE 802.3az Energy Efficient Ethernet (EEE)
Port mirroring
Deployment through the registration query center

รับประกัน

3 ปี
