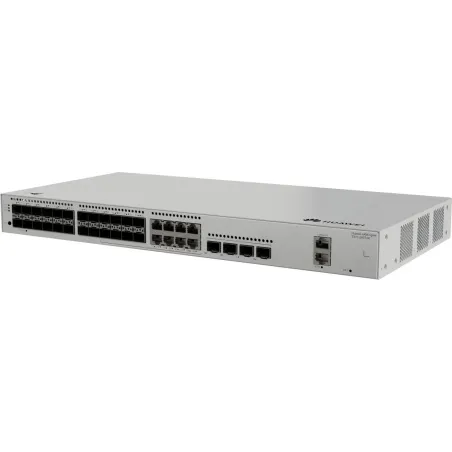

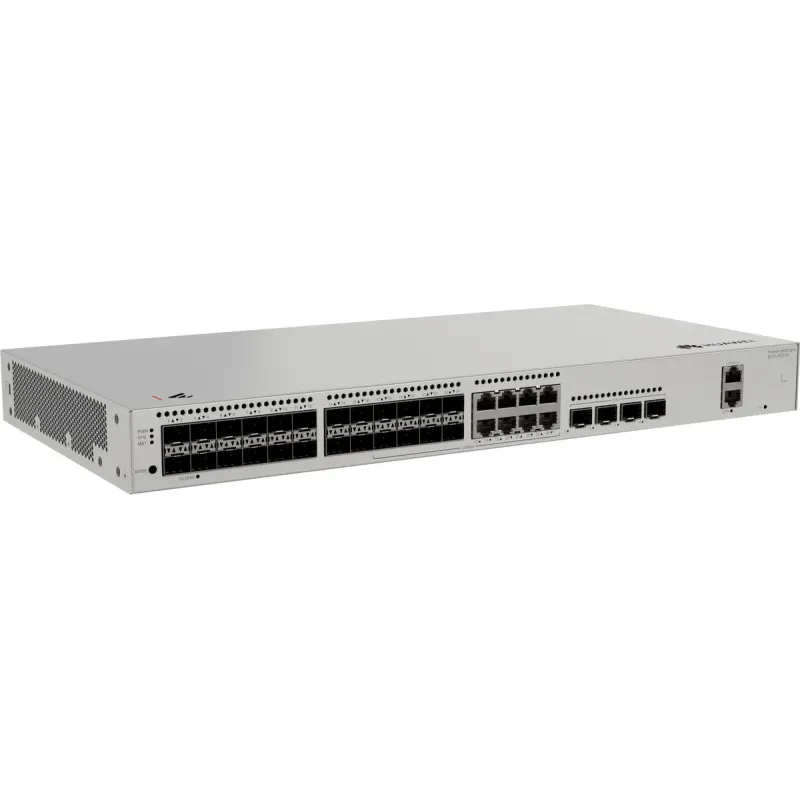

S310-24ST4X Huawei eKit L2+ Managed Switch 24 Port SFP, 4SFP+

S310-24ST4X Huawei eKit Product Specification

Product Overview

Huawei eKit S310-24ST4X L2+ Managed Switch 24 Port SFP, 4 SFP+ 10Gbps,  รองรับ VLAN, Static Route, PBR, IGMP, DHCP Snooping, LACP, VRRP, Port Security

รองรับการ Managed ผ่าน Cloud, Standalone

Technical specifications

Switching capacity

128 Gbps

Packet forwarding rate

96 Mpps

Downlink port

24 x GE SFP ports, 8 of which are dual-purpose 10/100/1000 or SFP
4 x 10GE SFP+ ports

Dimensions (H x W x D)

43.6 mm x 442 mm x 220 mm

Chassis height

1 U

Weight in full configuration
(including packaging materials)

3.55 kg

Power module type

Built-in AC power module

Maximum power consumption

41.7 W

Noise

Sound power at normal temperature: 38.1 dB (A)
Sound pressure at normal temperature: 26.1 dB (A)

Long-term operating temperature

–5°C to +50°C (0 m to 1800m)
When the altitude ranges between 1800 m and 5000 m, the operating temperature reduces by 1°C each time the altitude increases by 220 m.

Storage temperature

–40°C to +70°C

Relative humidity

5% to 95% (non-condensing)

Heat dissipation mode

Air cooling, intelligent fan speed adjustment

Service Feature

MAC address entry

Automatic MAC address learning and aging
16K MAC address entries at maximum
Static, dynamic, and blackhole MAC address entries
Source MAC address filtering
Limitation on the number of MAC addresses learned by an interface

VLAN features

4094 VLANs
Voice VLAN
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
VLAN stacking

Ethernet ring protection

Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protective switchover
G.8032 Ethernet Ring Protection Switching (ERPS)
STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
BPDU protection, root protection, and loop protection
BPDU tunnel

Multicast

IGMPv1/v2/v3 and IGMPv1/v2/v3 snooping

IP routing

Static routing and policy-based routing (PBR)
512 FIBv4 entries at maximum
512 FIBv6 entries at maximum

IPv6 features

Neighbor discovery (ND)
PMTU
IPv6 ping, IPv6 tracert, and IPv6 telnet

Reliability

Link Aggregation Control Protocol (LACP)
Virtual Router Redundancy Protocol (VRRP)
Bidirectional Forwarding Detection (BFD)
Link Layer Discovery Protocol (LLDP)

QoS/ACL

Traffic rate limiting in the inbound and outbound directions of a port
Packet redirection
Port-based traffic policing and two-rate three-color CAR
Eight queues on each port
DRR, SP and DRR+SP queue scheduling algorithms
Re-marking of the 802.1p and DSCP priorities for packets
Packet filtering on Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, or VLAN
Rate limiting in each queue and traffic shaping on ports
Network Slicing (VLAN)

Security features

Hierarchical user management and password protection
Defense against DoS, ARP, and ICMP attacks
Binding of the IP address, MAC address, port ID, and VLAN ID|
Port isolation, port security, and sticky MAC
Blackhole MAC address entries
Limitation on the number of learned MAC addresses
IEEE 802.1X authentication and limit on the number of users on a port
Multiple authentication modes including AAA, RADIUS, HWTACACS and NAC authentication
SSH v2.0
HTTPS
CPU defense
Blacklist and whitelist
DHCP client,DHCP server, DHCP snooping
DHCPv6 client

Management and maintenance

iStack
Cloud management based on NETCONF/YANG
Virtual cable test (VCT)
Remote configuration and maintenance by using Telnet
SNMPv1/v2/v3
RMON
Web system-based management
HTTPS
LLDP/LLDP-MED
System logs and alarms based on severities
802.3az: Energy Efficient Ethernet (EEE)
Port mirroring
Deployment through the registration query center

Interoperability

VBST, working with PVST, PVST+, and RPVST

รับประกัน

3 ปี
