S310-48T4X Huawei eKit Product Specification |

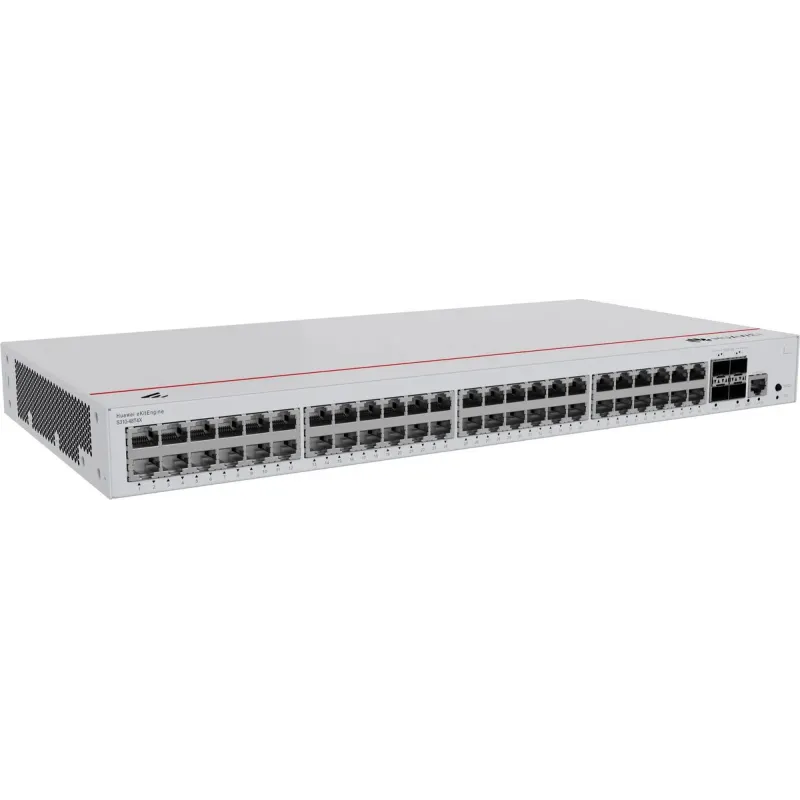

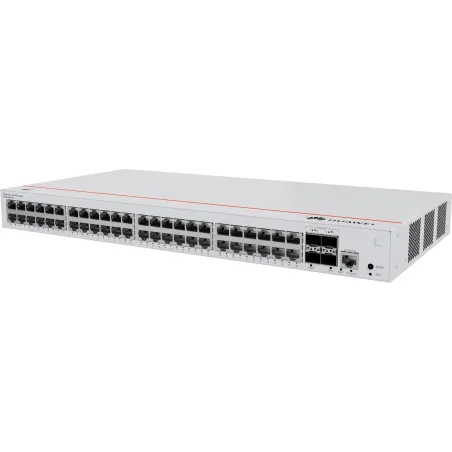

Product Overview | Huawei eKit S310-48T4X L2+ Managed Switch 48 Port Gigabit, 4 SFP+ 10Gbps, รองรับ VLAN, Static Route, PBR, IGMP, DHCP Snooping, LACP, VRRP, Port Security รองรับการ Managed ผ่าน Cloud, Standalone |
Technical specifications |
Switching capacity | 104 Gbps |
Packet forwarding rate | 77 Mpps |
Downlink port | 48 x 10/100/1000BASE-T ports
4 x 10GE SFP ports |
Dimensions (H x W x D) | 43.6 mm x 442 mm x 220 mm |
Chassis height | 1 U |
Weight in full configuration
(including packaging materials) | 3.59 kg |
Power module type | Built-in AC power module |
Maximum power consumption | 52.05 W |
Noise | Sound power at normal temperature: 46.6 dB (A)
Sound power at high temperature: 54.3 dB (A)
Sound pressure at normal temperature: 34.6 dB (A) |
Long-term operating temperature | –5°C to +50°C (0 m to 1800m)
When the altitude ranges between 1800 m and 5000 m, the operating temperature reduces by 1°C each time the altitude increases by 220 m. |
Storage temperature | –40°C to +70°C |
Relative humidity | 5% to 95% (non-condensing) |
Heat dissipation mode | Air cooling, intelligent fan speed adjustment |
Service Feature |
MAC address entry | Automatic MAC address learning and aging
16K MAC address entries at maximum
Static, dynamic, and blackhole MAC address entries
Source MAC address filtering
Limitation on the number of MAC addresses learned by an interface |
VLAN features | 4094 VLANs
Voice VLAN
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
VLAN stacking |
Ethernet ring protection | Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protective switchover
G.8032 Ethernet Ring Protection Switching (ERPS)
STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
BPDU protection, root protection, and loop protection
BPDU tunnel |
Multicast | IGMPv1/v2/v3 and IGMPv1/v2/v3 snooping |
IP routing | Static routing and policy-based routing (PBR)
512 FIBv4 entries at maximum
512 FIBv6 entries at maximum |
IPv6 features | Neighbor discovery (ND)
PMTU
IPv6 ping, IPv6 tracert, and IPv6 telnet |
Reliability | Link Aggregation Control Protocol (LACP)
Virtual Router Redundancy Protocol (VRRP)
Bidirectional Forwarding Detection (BFD)
Link Layer Discovery Protocol (LLDP) |
QoS/ACL | Traffic rate limiting in the inbound and outbound directions of a port
Packet redirection
Port-based traffic policing and two-rate three-color CAR
Eight queues on each port
DRR, SP and DRR+SP queue scheduling algorithms
Re-marking of the 802.1p and DSCP priorities for packets
Packet filtering on Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, or VLAN
Rate limiting in each queue and traffic shaping on ports
Network Slicing (VLAN) |
Security features | Hierarchical user management and password protection
Defense against DoS, ARP, and ICMP attacks
Binding of the IP address, MAC address, port ID, and VLAN ID|
Port isolation, port security, and sticky MAC
Blackhole MAC address entries
Limitation on the number of learned MAC addresses
IEEE 802.1X authentication and limit on the number of users on a port
Multiple authentication modes including AAA, RADIUS, HWTACACS and NAC authentication
SSH v2.0
HTTPS
CPU defense
Blacklist and whitelist
DHCP client,DHCP server, DHCP snooping
DHCPv6 client |
Management and maintenance | iStack
Cloud management based on NETCONF/YANG
Virtual cable test (VCT)
Remote configuration and maintenance by using Telnet
SNMPv1/v2/v3
RMON
Web system-based management
HTTPS
LLDP/LLDP-MED
System logs and alarms based on severities
802.3az: Energy Efficient Ethernet (EEE)
Port mirroring
Deployment through the registration query center |
Interoperability | VBST, working with PVST, PVST+, and RPVST |
รับประกัน | 3 ปี |
