    S310S-10PN4JX Huawei L2+ Managed POE Switch 8 Port Gigabit, POE 128W
    • S310S-10PN4JX Huawei L2+ Managed POE Switch 8 Port Gigabit, POE 128W
    • S310S-10PN4JX Huawei L2+ Managed POE Switch 8 Port Gigabit, POE 128W
    • S310S-10PN4JX Huawei L2+ Managed POE Switch 8 Port Gigabit, POE 128W
    • S310S-10PN4JX Huawei L2+ Managed POE Switch 8 Port Gigabit, POE 128W

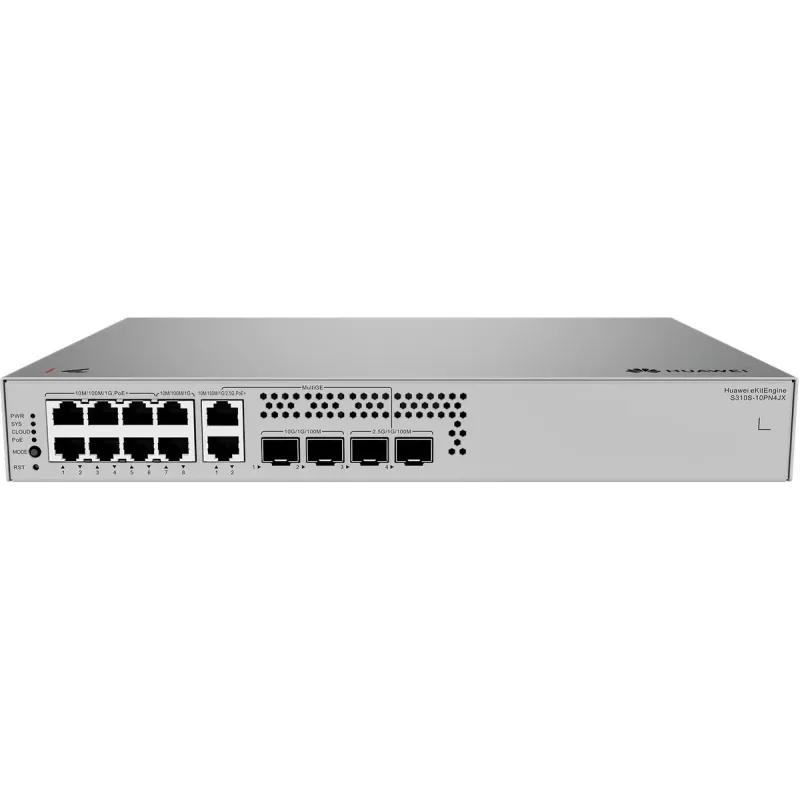

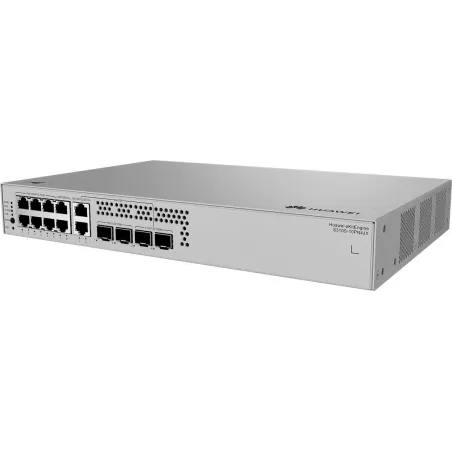

    S310S-10PN4JX Huawei eKit L2+ Managed POE Switch 8 Port Gigabit,POE 128W

    Huawei

    Huawei eKit S310S-10PN4JX L2+ Managed POE Switch 6 Port Gigabit, 2 Port Multi-Gig 2.5Gb, 2 SFP 2.5Gb, 2 SFP+, POE+ 128W, VLAN, Static Route, IGMP, DHCP Snooping, LACP, Cloud Managed

    ฿8,900.00
    ยังไม่ได้รวมภาษี
    จำนวน
    2 รายการ


    สอบถามข้อมูลสินค้าเพิ่มเติม

    LINE ID: @sysnet  โทร: 02 102 4284

    Click ต้องการใบเสนอราคา

    close

    แบบฟอร์มขอใบเสนอราคา



    Rating:
    (0)
    รายละเอียด

    Huawei eKitEngine L2 Managed Switch 310S Series Datasheet



    Huawei eKit S310S-10PN4JX

    6 x 10/100/1000BASE-T PoE+ ports, 2 x 10/100/1000BASE-T ports, 2 x 10M/100M/GE/2.5GE BASE-T PoE+ ports (multi-GE ports), 2 x 10GE SFP+ ports, 2 x 2.5GE SFP ports | Packet forwarding rate: 56 Mpps | Switching capacity: 76 Gbit/s

    S310S-10PN4JX Huawei eKit Product Specification

    Product Overview

    Huawei eKit S310S-10PN4JX L2+ Managed POE Switch 8 Port Gigabit, 2 SFP 2.5Gb, 2 SFP+ 10Gb, จ่ายไฟ POE มาตรฐาน 802.3af/at สูงสุด 128W, รองรับ VLAN, Static Route, IGMP, DHCP Snooping, LACP, ACL

    รองรับการ Managed ผ่าน Cloud, Standalone

    Technical specifications

    Switching capacity

    76 Gbps

    Packet forwarding rate

    56 Mpps

    Downlink port

    6 x 10/100/1000BASE-T ports (PoE+)
    2 x 10/100/1000BASE-T ports
    2 x 10M/100M/GE/2.5GE BASE-T PoE+ ports (multi-GE ports)

    Uplink port

    2 x 10GE SFP+ ports
    2 x 2.5GE SFP ports

    Dimensions (H x W x D)

    43.6 mm x 320 mm x 210 mm

    Chassis height

    1 U

    Maximum power consumption

    Without PoE: 24.03 W
    Full PoE load: 162.36 W (PoE: 128 W)

    Heat dissipation mode

    Fanless, natural heat dissipation

    Rated input voltage

    AC input: 100 V AC to 240 V AC, 50/60 Hz

    Long-term operating temperature

    –5°C to +40°C (0 m to 1800 m)

    Storage temperature

    –40°C to +70°C

    Operating humidity

    5% RH to 95% RH, non-condensing

    Service Feature

    MAC address entry

    Complies with the IEEE 802.1d standard
    16K MAC address entries at maximum
    Static, dynamic, and blackhole MAC address entries
    Automatic MAC address learning and aging

    VLAN features

    4094 VLANs

    Ethernet ring protection

    ERPS (G.8032)
    STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)

    Multicast

    IGMPv1/v2/v3 and IGMPv1/v2/v3 snooping

    Reliability

    Link Aggregation Control Protocol (LACP)
    Storm control

    QoS/ACL

    Rate limiting on packets sent and received by an interface
    IPv4 access control list (ACL)
    Interface-based traffic policing
    Eight queues on each interface
    Packet filtering

    IP features

    ARP
    DNS client
    DHCP client
    Static Routes
    Policy-based Routing
    NTP

    Security features

    Defense against DoS, ARP, and ICMP attacks
    Secure Boot
    Port isolation
    Blackhole MAC address entries
    AAA authentication
    CPU protection
    DHCP snooping

    Management and maintenance

    Cloud management
    Web system
    SSH v2.0
    HTTPS
    LLDP
    System logs and multi-level alarms
    IEEE 802.3az Energy Efficient Ethernet (EEE)
    Port mirroring
    Deployment through the registration query center

    รับประกัน

    3 ปี



    รายละเอียดสินค้า
    2 รายการ

    ข้อมูลสินค้า

    ประเภท Switch
    Ethenet Switch
    Switches Layer
    L2 Managed
    จำนวน Port Lan
    8 Port
    ความเร็ว Port Lan
    2.5Gbps (Multi-Gigabit)
    จำนวน Port จ่ายไฟ POE
    6 Port
    มาตรฐานจ่ายไฟ POE
    POE+ 802.3at (30W)
    จำนวน SFP+ Port 10Gigabit
    2 Port
