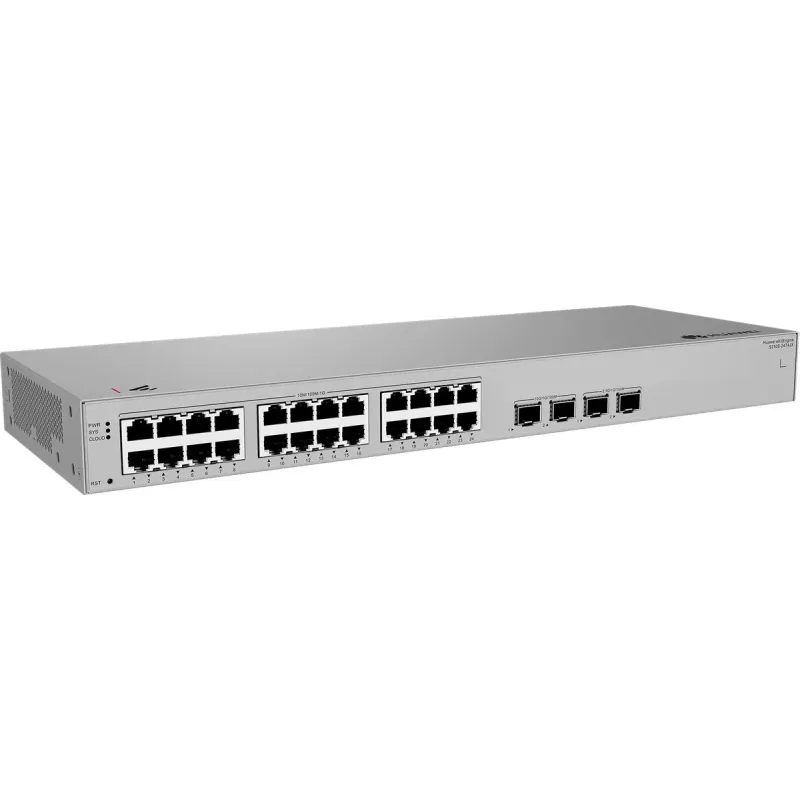

    S310S-24T4JX Huawei eKit L2+ Managed Switch 24 Port Gigabit,2SFP+

    Huawei

    Huawei eKit S310S-24T4JX L2+ Managed Switch 24 Port Gigabit, 2 Port SFP 2.5Gb, 2 Port SFP+ 10Gb, VLAN, Static Route, IGMP, DHCP Snooping, LACP, ACL, Cloud Managed

    ฿6,690.00
    ยังไม่ได้รวมภาษี
    จำนวน
    2 รายการ


    สอบถามข้อมูลสินค้าเพิ่มเติม

    LINE ID: @sysnet  โทร: 02 102 4284

    Click ต้องการใบเสนอราคา

    close

    แบบฟอร์มขอใบเสนอราคา



    Rating:
    (0)
    รายละเอียด

    Huawei eKitEngine L2 Managed Switch 310S Series Datasheet



    Huawei eKit S310S-24T4JX

    24 x 10/100/1000BASE-T ports,2 x 10GE SFP+ ports,2 x 2.5GE SFP ports | Packet forwarding rate: 73 Mpps | Switching capacity: 98 Gbit/s

    S310S-24T4JX Huawei eKit Product Specification

    Product Overview

    Huawei eKit S310S-24T4JX L2+ Managed Switch 24 Port Gigabit, 2 Port SFP 2.5Gb, 2 Port SFP+ 10Gb รองรับ VLAN, Static Route, IGMP, DHCP Snooping, LACP, ACL

    รองรับการ Managed ผ่าน Cloud, Standalone

    Technical specifications

    Switching capacity

    98 Gbps

    Packet forwarding rate

    73 Mpps

    Downlink port

    24 x 10/100/1000BASE-T ports

    Uplink port

    2 x 10GE SFP+ ports
    2 x 2.5GE SFP ports

    Dimensions (H x W x D)

    43.6 mm x 320 mm x 210 mm

    Chassis height

    1 U

    Maximum power consumption

    21.9 W

    Heat dissipation mode

    Fanless, natural heat dissipation

    Rated input voltage

    AC input: 100 V AC to 240 V AC, 50/60 Hz

    Long-term operating temperature

    –5°C to +40°C (0 m to 1800 m)

    Storage temperature

    –40°C to +70°C

    Operating humidity

    5% RH to 95% RH, non-condensing

    Service Feature

    MAC address entry

    Complies with the IEEE 802.1d standard
    16K MAC address entries at maximum
    Static, dynamic, and blackhole MAC address entries
    Automatic MAC address learning and aging

    VLAN features

    4094 VLANs

    Ethernet ring protection

    ERPS (G.8032)
    STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)

    Multicast

    IGMPv1/v2/v3 and IGMPv1/v2/v3 snooping

    Reliability

    Link Aggregation Control Protocol (LACP)
    Storm control

    QoS/ACL

    Rate limiting on packets sent and received by an interface
    IPv4 access control list (ACL)
    Interface-based traffic policing
    Eight queues on each interface
    Packet filtering

    IP features

    ARP
    DNS client
    DHCP client
    Static Routes
    Policy-based Routing
    NTP

    Security features

    Defense against DoS, ARP, and ICMP attacks
    Secure Boot
    Port isolation
    Blackhole MAC address entries
    AAA authentication
    CPU protection
    DHCP snooping

    Management and maintenance

    Cloud management
    Web system
    SSH v2.0
    HTTPS
    LLDP
    System logs and multi-level alarms
    IEEE 802.3az Energy Efficient Ethernet (EEE)
    Port mirroring
    Deployment through the registration query center

    รับประกัน

    3 ปี



    รายละเอียดสินค้า
    2 รายการ

    ข้อมูลสินค้า

    ประเภท Switch
    Ethenet Switch
    Switches Layer
    L2 Managed
    จำนวน Port Lan
    24 Port
    จำนวน SFP Port 2.5Gigabit
    มากกว่า 2 Port
    จำนวน SFP+ Port 10Gigabit
    2 Port
