S380-L4T2T Multi-Service Gateway Product Specification |

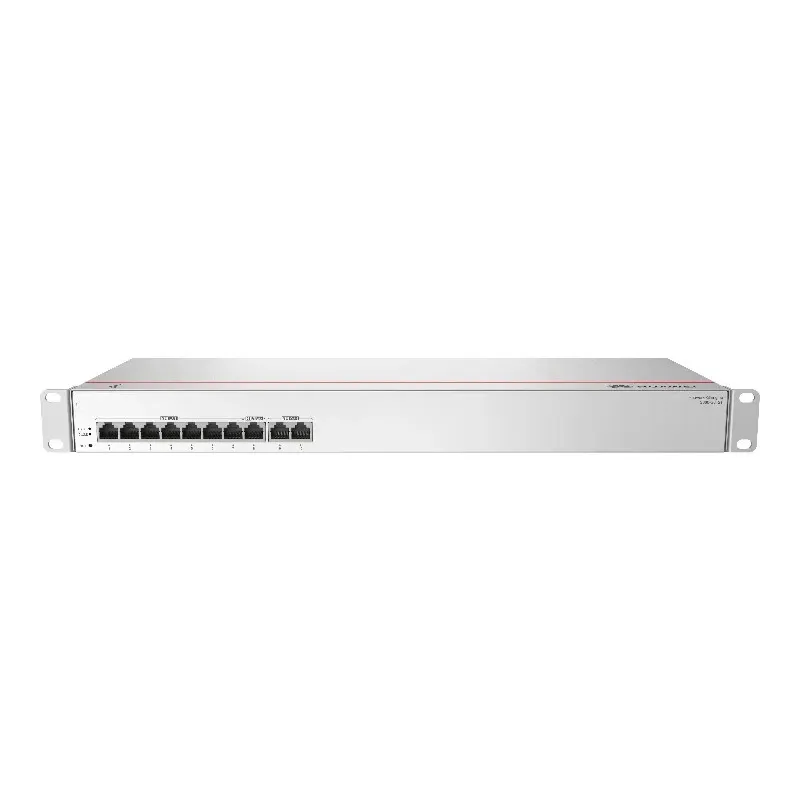

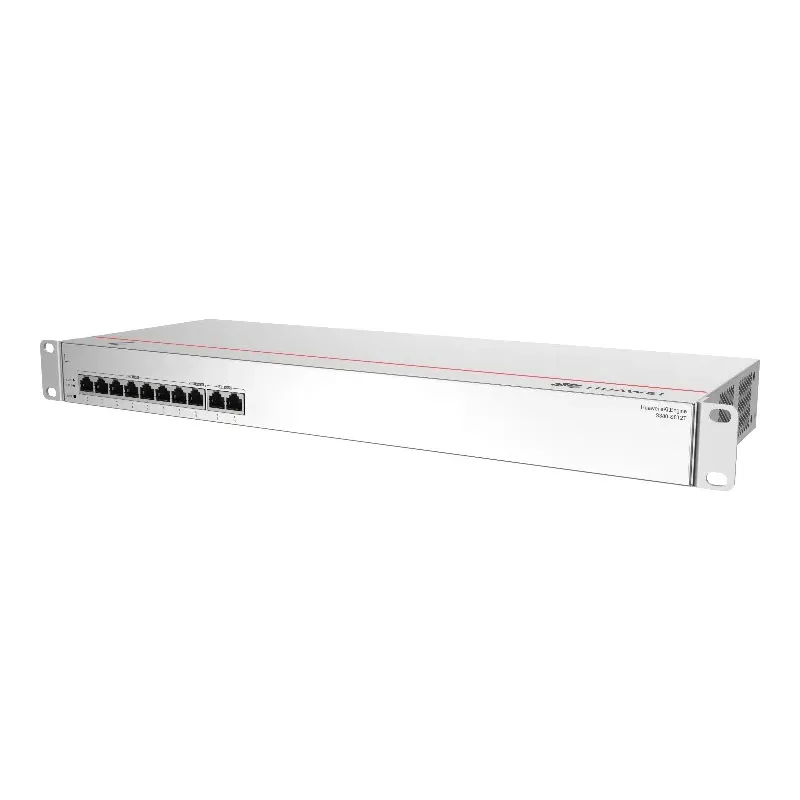

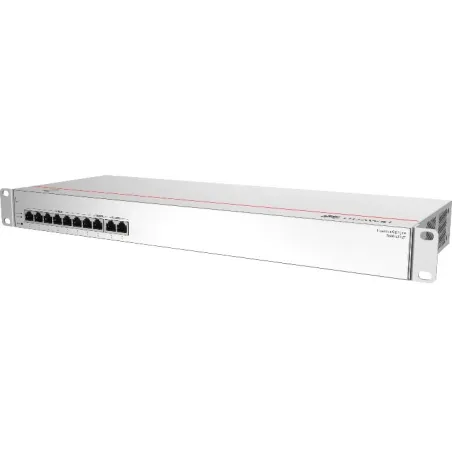

Product Overview | Huawei eKit S380-S8T2T Multi-Service Gateway 2WAN, รองรับ Bandwidth 2Gbps, 8 Port Lan Gigabit, Build-In Firewall, IPS, URL Filterling, VPN, 300 Device |
| Switching Capacity | 16Gbps |
| Packet forwarding rate | Upload:500 Kpps, download:420 Kpps |
| Egress bandwidth | 2Gbps |
| Maximum user | 300 |
| Managed APs | 64 |
| GE RJ45 | 10 (1G/100M/10M) |
| WAN ports | 2 x GE WAN |
| LAN ports | 8 x GE LAN |
| PoE | - |
| Maximum PoE power consumption [W] | - |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 150.0 mm x 275.0 mm x 200.0 mm (5.91 in. x 10.83 in. x 7.87 in.) |
| Installation type | Desk mounting,Wall mounting |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 1.6 kg (3.53 lb) |
| Weight with packaging [kg(lb)] | 2.1 kg (4.63 lb) |
| Typical power consumption [W] | 10.4 |
| Maximum power consumption [W] | 10.55 |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Power supply mode | Power adapter |
| Input voltage range [V] | Power adapter input: 90-290 V AC; 47-63 Hz |
| Power supply surge protection [kV] | Power adapter: ±6 kV in differential mode and ±6 kV in common mode |
| Heat dissipation mode | Natural heat dissipation |
| Certification | EMC certification Safety certification Manufacturing certification |
Software Features and Protocols |
Interface basics | VLAN
Jumbo frame
Port Up/Down detection
Port auto-negotiation
VLANIF interface |
Ethernet basics | 16 VLANs
Port types: access, trunk, and hybrid
Port-based VLAN assignment
Automatic MAC address learning
Automatic MAC address aging and static MAC address entries
MAC Filtering |
IPv4 unicast routing | Static routing |
WAN optimization | Load balancing: terminal IP address–based and connection-based |
User access | DHCP server/client, DNS client, PPPoE client,ACL, and NAT |
Device management | Web system
APP
SSH |
Device maintenance | Ping, tracert, and one-click diagnosis |
VPN | IPsec VPN |
รับประกัน | 3 ปี |
