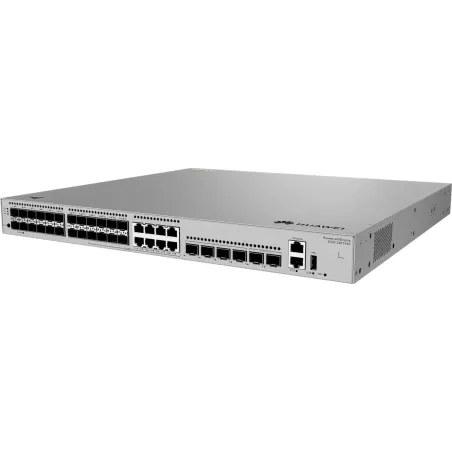

    S530-24ST4XE Huawei eKit L3 Managed Switch 24 Port SFP,4SFP+

    Huawei

    Huawei eKit S530-24ST4XE L3 Managed Switch 24 Port SFP, 4 SFP+ 10Gbps, Static/Dynamic Routing OSPF,BGP, VLAN, PBR, IGMP, 802.1x, Cloud Managed

    ฿24,520.00
    ยังไม่ได้รวมภาษี
    จำนวน
    2 รายการ


    สอบถามข้อมูลสินค้าเพิ่มเติม

    LINE ID: @sysnet  โทร: 02 102 4284

    Click ต้องการใบเสนอราคา

    close

    แบบฟอร์มขอใบเสนอราคา



    Rating:
    (0)
    รายละเอียด

    Huawei eKitEngine L3 Managed Switch 530 Series Datasheet

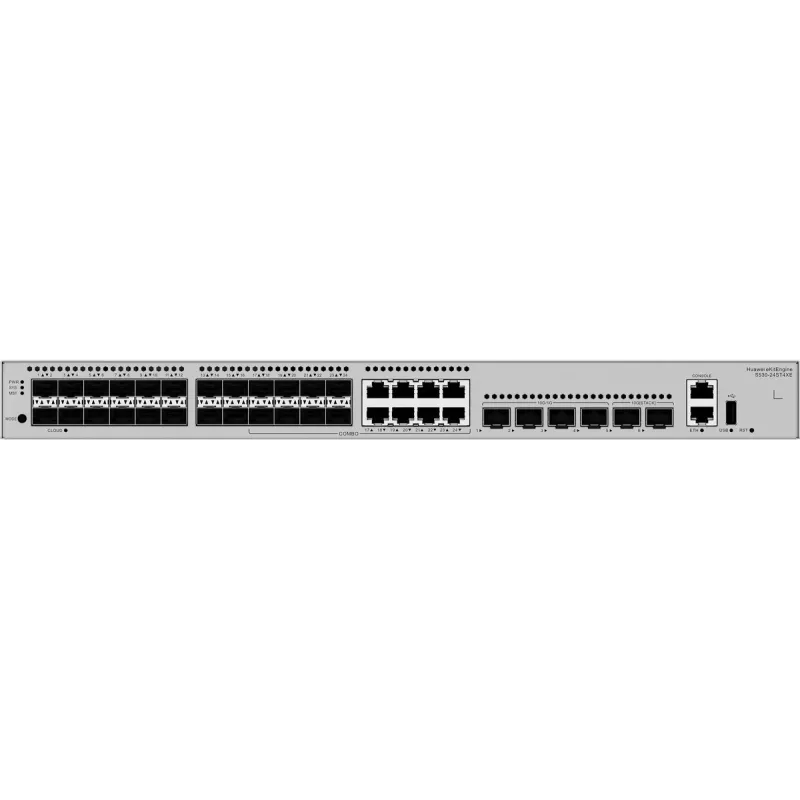

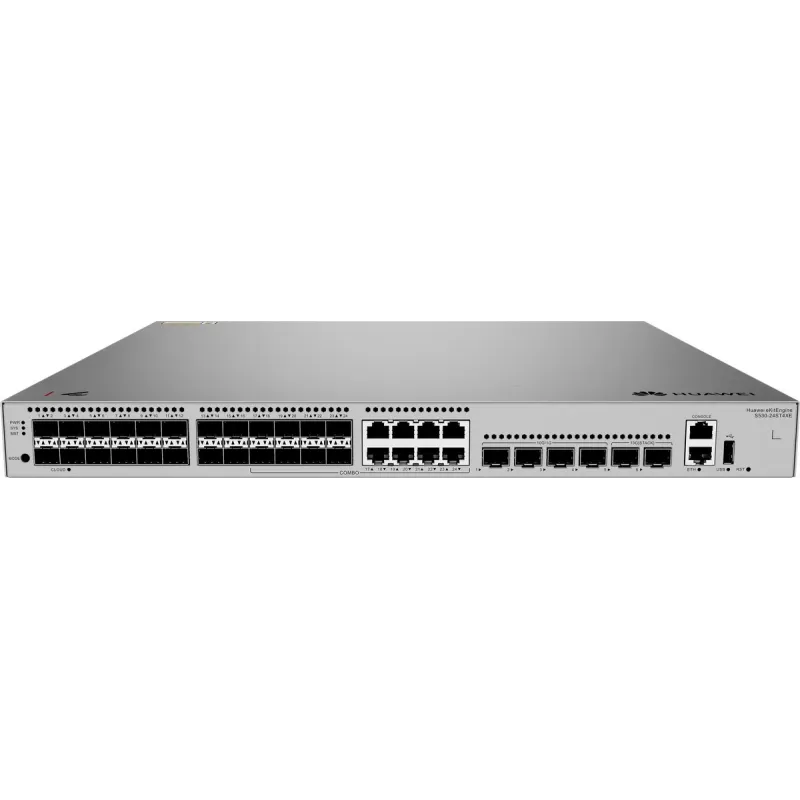

    Huawei eKit S530-24ST4XE

    24 x GE SFP ports, 8 of which are dual-purpose 10/100/1000 or SFP, 4 x 10GE SFP+ ports, 2 x 10GE stack ports | Packet forwarding rate: 132 Mpps | Switching capacity: 176 Gbit/s

    S530-24ST4XE Huawei eKit Product Specification

    Product Overview

    Huawei eKit S530-24ST4XE L3 Managed Switch 24 Port SFP, 4 SFP+ 10Gbps,  รองรับ Static/Dynamic Routing OSPF,BGP, VLAN, PBR, IGMP, 802.1x, รองรับ Cloud Managed/Statndalone

    รองรับการ Managed ผ่าน Cloud, Standalone

    Technical specifications

    Switching capacity

    176 Gbps

    Packet forwarding rate

    132 Mpps

    Downlink port

    24 x GE SFP ports, 8 of which are dual-purpose 10/100/1000 or SFP
    4 x 10GE SFP+ ports
    2 x 10 GE stack ports

    MAC address table

    32K MAC entries(MAX)

    Dimensions (H x W x D)

    43.6 mm x 442.0 mm x 420.0 mm

    Chassis height

    1 U

    Weight in full configuration
    (including packaging materials)

    8.0 kg (17.64 lb)

    Power module type

    80 W AC power modules
    1200 W DC power modules

    Maximum power consumption

    48.70 W (with two 80 W AC power modules)
    85.78 W (with two 180 W AC power modules)

    Noise

    Sound power at normal temperature: 38.1 dB (A)
    Sound pressure at normal temperature: 26.1 dB (A)

    Long-term operating temperature

    -5°C to +50°C

    Storage temperature

    –40°C to +70°C

    Relative humidity

    5% to 95% (non-condensing)

    Power port surge protection

    Differential mode: ±6 kV
    Common mode: ±6 kV

    Heat dissipation mode

    Air cooling, intelligent fan speed adjustment

    Service Feature

    MAC address entry

    32K MAC address entries at maximum
    Automatic MAC address learning and aging
    Static, dynamic, and blackhole MAC address entries
    Source MAC address filtering
    Limitation on the number of MAC addresses learned by an interface

    VLAN features

    4094 VLANs
    Voice VLAN
    MUX VLAN
    Basic QinQ & Selective QinQ

    Ethernet ring protection

    Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover
    ERPS (G.8032)
    STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
    BPDU protection, root protection, and loop protection
    LLDP

    Multicast

    PIM DM, PIM SM, PIM SSM
    IGMP v1/v2/v3, IGMP v1/v2/v3 snooping, MLD Snooping and IGMP fast leave
    Multicast load balancing among member ports of a trunk
    Port-based multicast traffic statistics
    Multicast VLAN

    IP routing

    Static Routing
    Dynamic Routing
    RIPv1/v2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, VRRP, VRRP6
    Routing Policy
    Policy-Based Routing

    IPv6 features

    ND (Neighbor Discovery)
    Path MTU (PMTU)
    IPv6 ping, IPv6 tracert, and IPv6 Telnet

    QoS/ACL

    Rate limiting on packets sent and received by a port
    Packet redirection
    Port-based traffic policing and two-rate three-color CAR
    Eight queues on each port
    DRR、SP and DRR+SP queue scheduling algorithms
    Re-marking of the 802.1p priority and DSCP priority
    Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID
    Rate limiting in each queue and traffic shaping on ports

    Security

    Hierarchical user management and password protection
    DoS attack defense, ARP attack defense, and ICMP attack defense
    Binding of the IP address, MAC address, port number, and VLAN ID
    Port isolation, port security, and sticky MAC
    Blackhole MAC address entries
    Limit on the number of learned MAC addresses
    IEEE 802.1x authentication and limit on the number of users on a port
    AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
    SSH v2.0
    HTTPS
    CPU defense
    Blacklist and whitelist
    IEEE 802.1x authentication, MAC address authentication
    DHCPv4 client/relay/server/snooping
    DHCPv6 client/relay/snooping

    Management and maintenance

    iStack
    Cloud management based on Netconf/Yang
    Virtual cable test
    SNMP v1/v2c/v3
    RMON
    Web-based NMS
    System logs and alarms of different levels
    Port mirroring
    Registration Center Deployment

    Interoperability

    VBST, working with PVST, PVST+, and RPVST

    รับประกัน

    3 ปี



    รายละเอียดสินค้า
    2 รายการ

    ข้อมูลสินค้า

    ประเภท Switch
    Ethenet Switch
    Switches Layer
    L2/L3 Managed
    จำนวน SFP Port 1Gigabit
    มากกว่า 4 Port
    จำนวน SFP+ Port 10Gigabit
    4 Port
