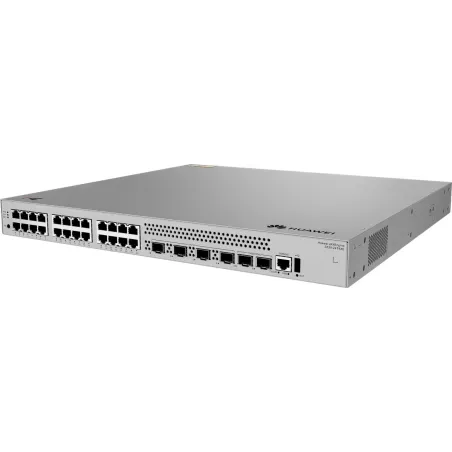

S530-24T4XE Huawei eKit L3 Managed Switch 24 Port Gigabit,4SFP+

Huawei

Huawei eKit S530-24T4XE L3 Managed Switch 24 Port Gigabit, 4 SFP+ 10G, 2 Port 10G Stack, Static/Dynamic Routing OSPF,BGP, VLAN, PBR, IGMP, 802.1x, Cloud Managed

฿20,430.00
ยังไม่ได้รวมภาษี
จำนวน
2 รายการ


สอบถามข้อมูลสินค้าเพิ่มเติม

LINE ID: @sysnet  โทร: 02 102 4284

Click ต้องการใบเสนอราคา

close

แบบฟอร์มขอใบเสนอราคา



Rating:
(0)
รายละเอียด

Huawei eKitEngine L3 Managed Switch 530 Series Datasheet



S530-24T4XE Huawei eKit

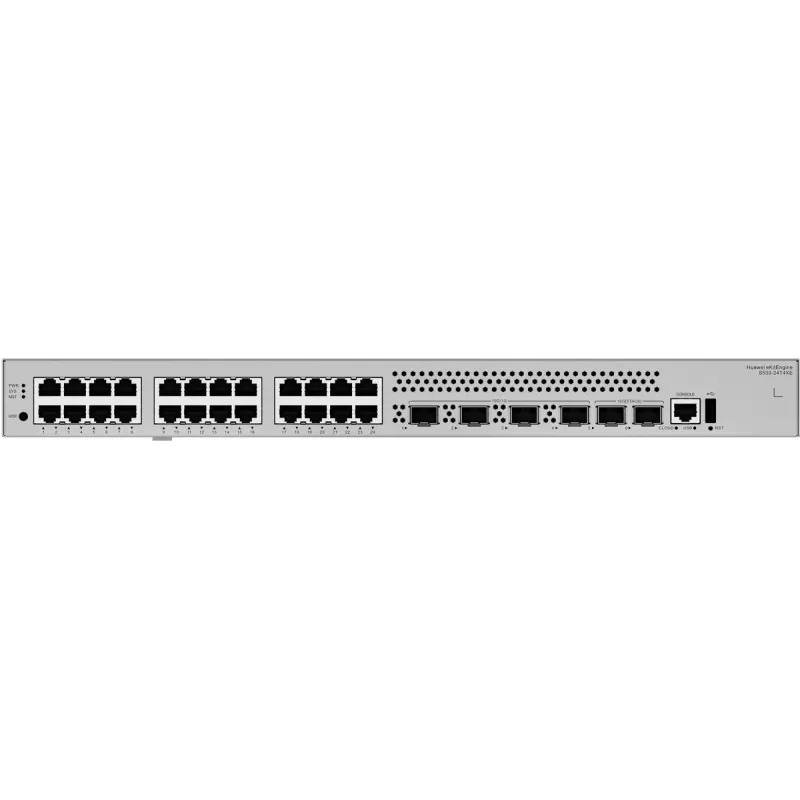

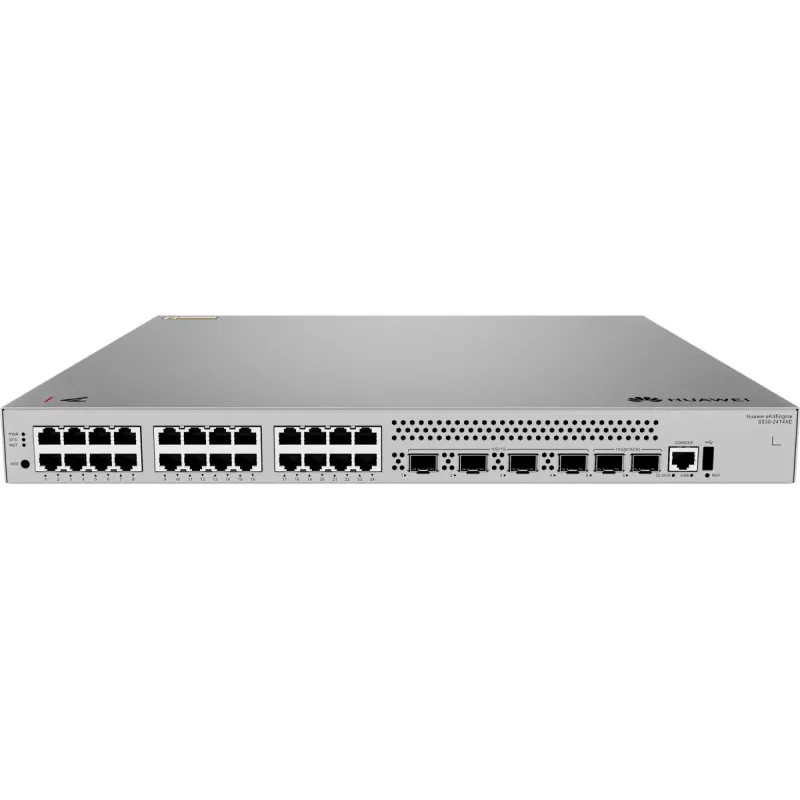

24 x 10/100/1000BASE-T ports, 4 x 10GE SFP+ ports, 2 x 10GE stack ports | Packet forwarding rate: 132 Mpps | Switching capacity: 176 Gbit/s

S530-24T4XE Huawei eKit Product Specification

Product Overview

Huawei eKit S530-24T4XE L3 Managed Switch 24 Port Gigabit, 4 SFP+ 10Gbps, 2 Port 10Gbps Stack รองรับ Static/Dynamic Routing OSPF,BGP, VLAN, PBR, IGMP, 802.1x

รองรับการ Managed ผ่าน Cloud, Standalone

Technical specifications

Switching capacity

176 Gbps

Packet forwarding rate

132 Mpps

Downlink port

24 x 10/100/1000Base-T ports
4 x 10 GE SFP+ ports
2 x 10 GE stack ports

MAC address table

32K MAC entries(MAX)

Dimensions (H x W x D)

43.6 mm x 442.0 mm x 420.0 mm

Chassis height

1 U

Weight in full configuration
(including packaging materials)

8.7 kg (19.18 lb)

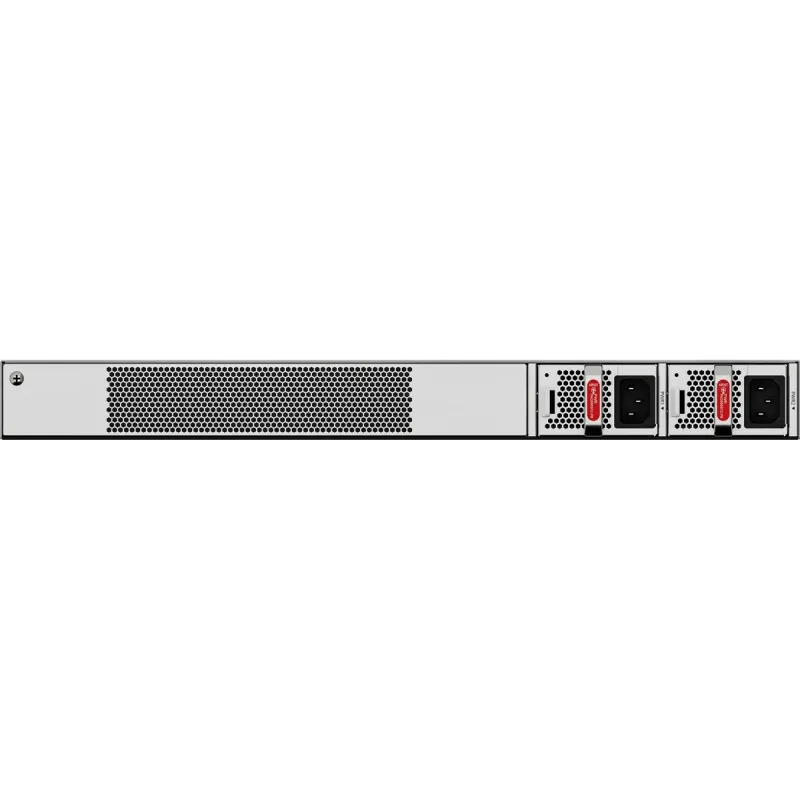

Power module type

80 W AC power modules
180 W AC power modules
1200 W DC power modules

Maximum power consumption

33.10 W (with two 80 W AC power modules)
45.75 W (with two 180 W AC power modules)
85.20 W (with two 1200 W DC power modules)

Noise

Sound power at normal temperature: 47 dB (A)
Sound pressure at normal temperature: 35 dB (A)

Long-term operating temperature

-5°C to +50°C

Storage temperature

–40°C to +70°C

Relative humidity

5% to 95% (non-condensing)

Power port surge protection

Differential mode: ±6 kV
Common mode: ±6 kV

Heat dissipation mode

Air cooling, intelligent fan speed adjustment

Service Feature

MAC address entry

32K MAC address entries at maximum
Automatic MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Source MAC address filtering
Limitation on the number of MAC addresses learned by an interface

VLAN features

4094 VLANs
Voice VLAN
MUX VLAN
Basic QinQ & Selective QinQ

Ethernet ring protection

Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover
ERPS (G.8032)
STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
BPDU protection, root protection, and loop protection
LLDP

Multicast

PIM DM, PIM SM, PIM SSM
IGMP v1/v2/v3, IGMP v1/v2/v3 snooping, MLD Snooping and IGMP fast leave
Multicast load balancing among member ports of a trunk
Port-based multicast traffic statistics
Multicast VLAN

IP routing

Static Routing
Dynamic Routing
RIPv1/v2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, VRRP, VRRP6
Routing Policy
Policy-Based Routing

IPv6 features

ND (Neighbor Discovery)
Path MTU (PMTU)
IPv6 ping, IPv6 tracert, and IPv6 Telnet

QoS/ACL

Rate limiting on packets sent and received by a port
Packet redirection
Port-based traffic policing and two-rate three-color CAR
Eight queues on each port
DRR、SP and DRR+SP queue scheduling algorithms
Re-marking of the 802.1p priority and DSCP priority
Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID
Rate limiting in each queue and traffic shaping on ports

Security

Hierarchical user management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, port number, and VLAN ID
Port isolation, port security, and sticky MAC
Blackhole MAC address entries
Limit on the number of learned MAC addresses
IEEE 802.1x authentication and limit on the number of users on a port
AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
SSH v2.0
HTTPS
CPU defense
Blacklist and whitelist
IEEE 802.1x authentication, MAC address authentication
DHCPv4 client/relay/server/snooping
DHCPv6 client/relay/snooping

Management and maintenance

iStack
Cloud management based on Netconf/Yang
Virtual cable test
SNMP v1/v2c/v3
RMON
Web-based NMS
System logs and alarms of different levels
Port mirroring
Registration Center Deployment

Interoperability

VBST, working with PVST, PVST+, and RPVST

รับประกัน

3 ปี



รายละเอียดสินค้า
2 รายการ

ข้อมูลสินค้า

ประเภท Switch
Ethenet Switch
Switches Layer
L2/L3 Managed
จำนวน Port Lan
24 Port
ความเร็ว Port Lan
1Gbps (Gigabit)
มี Uplink Port Lan 10Gbps
Yes
จำนวน SFP+ Port 10Gigabit
4 Port
