Product Detail |

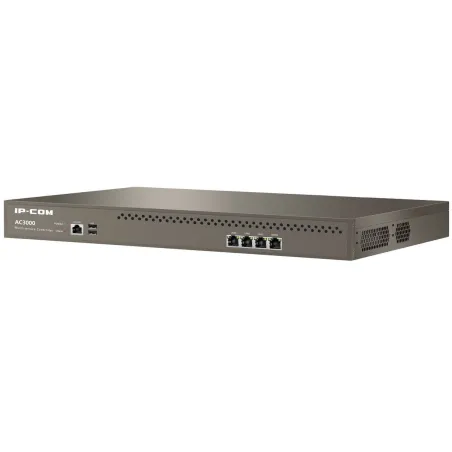

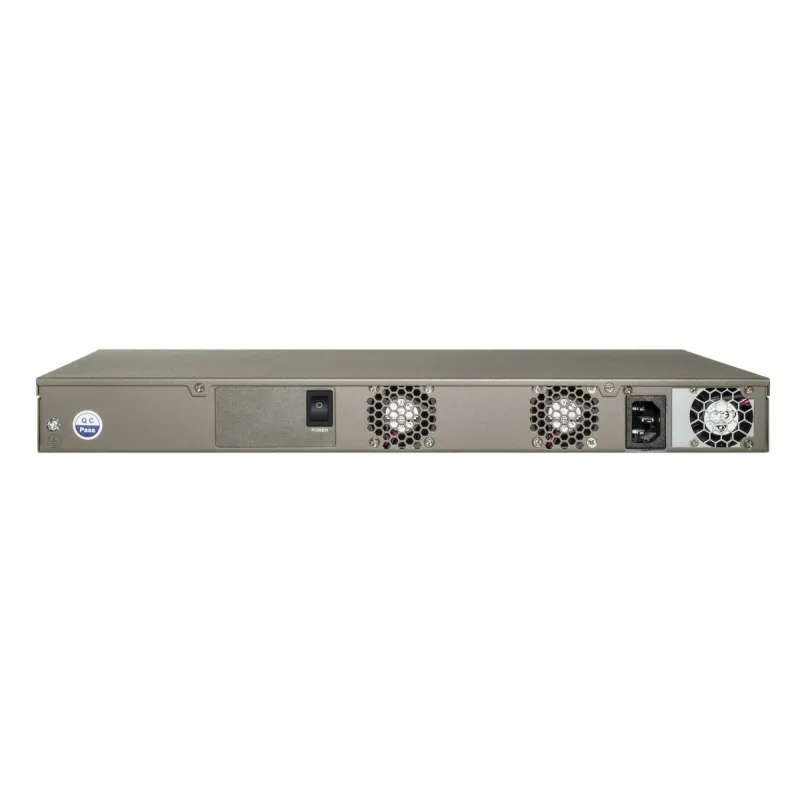

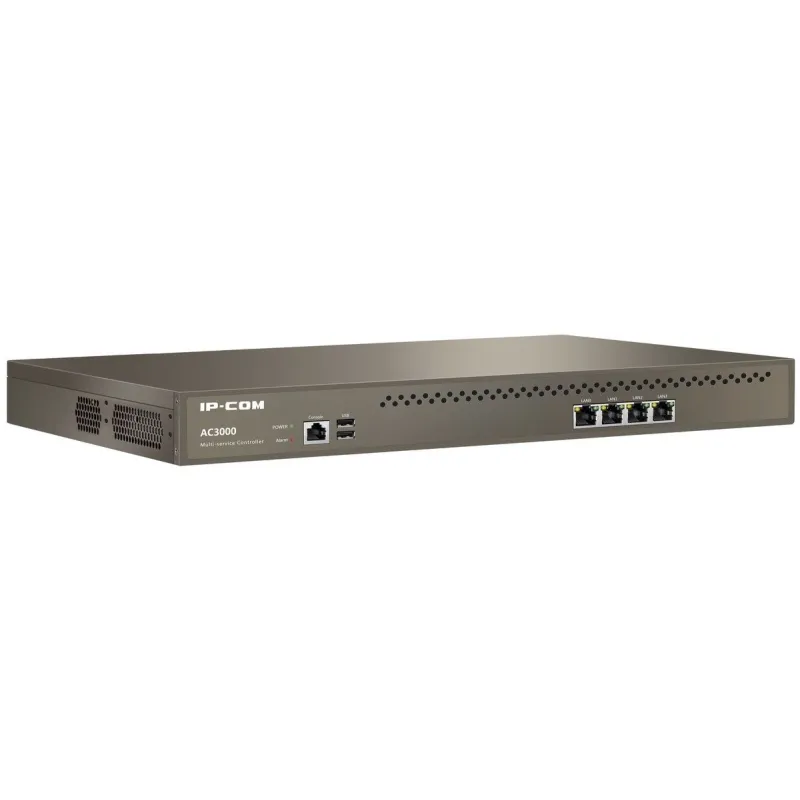

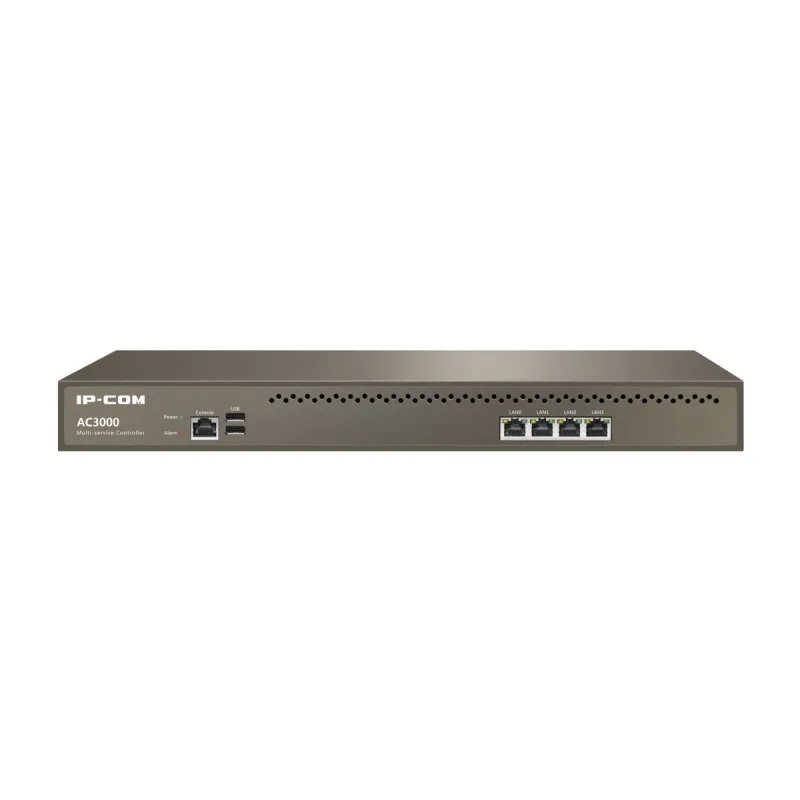

IP-COM AC3000 Access Controller Centralized Management and Monitor IP-COM AP สูงสุด 3000 ชุด 5 Port Gigabit, รองรับ ทำ Hotspot Captive Portal ได้ 50,000 Users, รองรับการทำ Facebook account authentication |
Product Information |
|
---|---|
Model |
AC3000 |
Mounting |
rack-mounted |
Application Scenarios |
Medium-Sized Enterprise offices, Shopping Malls, and Restaurants etc |
Hardware Specifications |
|
Wi-Fi Standards |
IEEE 802.11a/b/g/n/ac |
Interfaces |
4*10/100/1000Mbps |
Other Interface |
4*USB,1*VGA,1*CONSOLE |
Buttons |
1*POWER |
Max Power Consumption |
250W |
LED indicators |
POWER?HDD |
Software Specifications |
|
Basic Functions |
|
Maximum Number of Managed APs |
3000 |
Maxinum Number of Users |
50K |
Maximum Configurable Number of APs |
4096 |
IP Protocol |
|
IPv4 Protocol |
support |
Multicast |
|
MLD Snooping |
support |
IGMP Snooping |
support |
Multicast to Unicast (IPv4) |
support |
AC discovery |
|
AC discovery (DHCP option43, broadcast?Lighthouse AP) |
support |
NAT traversal between AP and AC |
support |
Forwarding |
|
Local Forwarding |
Local forwarding based on SSID+VLAN |
Central Forwarding |
support |
WLAN Application |
|
Wireless User Isolation |
AP based wireless users 2-layer isolation |
Keep Alive |
support |
Idle |
support |
Use Number Limit |
Supported: SSID based, per RF based |
Real Time Spectrum Analysis |
support |
Airtime Fairness |
support |
Co-AP Channel Reuse |
support |
RF Interface Transmission Rate Adjustment Algorithm |
support |
Disable User Access with Weak Signal |
support |
RF Management |
|
20MHz/40MHz Auto-switch in 40MHz Mode |
support |
Multi-SSID (Per Radio) |
16 |
SSID Hiding |
support |
Country Code Lock |
support |
Static Channel and Power Configuration |
support |
Auto Channel and Power Configuration |
support |
Auto Transmission Rate Adjustment |
support |
Coverage Hole Detection and Correction |
support |
Intelligent Load Balancing |
Supported: based on traffic, user & frequency |
Signal Transmission |
Coverage-oriented,capacity-oriented |
Signal Reception |
Default,coverage-oriented, capacity-oriented |
Band Steering |
Support |
Green Features |
|
Scheduled Shutdown of AP RF Interface |
support |
Scheduled Shutdown of Wireless Service |
support |
Per-packet Power Adjustment (PPC) |
support |
Security |
|
Dynamic Blacklist |
support |
Rogue AP Detection |
Supported:SSID based,BSSID, device OUI and more |
Roaming |
|
Intra-AC, Inter-AP L2 and L3 Roaming |
support |
QoS |
|
Rate Limit |
Supported with granularity of 8Kbps |
802.11e/WMM |
support |
Intelligent bandwidth Control (Device Type) |
support |
Intelligent Bandwidth Limit (ssid) |
support |
Intelligent Bandwidth Limit (user specific) |
support |
Access control |
|
WPA, WPA2 |
support |
TKIP |
support |
CCMP |
support (11n recommended) |
SSH |
support |
802.1X authentication |
support |
Local authentication |
Portal, MAC authentication |
Attack detection |
support |
URL Filtering |
support |
ACL |
Filter IP packets based on: Source address, Destination address,Type of packet,Port, and any combination of these items |
Security and Authentication |
802.1x |
User Access and Role Assignment |
Role assignment based on terminal types; |
Management and Deployment |
|
Network Time |
NTP server setting, Auto sync, Manual Sync |
System Logs |
AC System logs, Access Point Event Logs, Operation Logs |
Configuration Operation |
Backup Configuration |
AP Firmware Upgrade |
Manual Upgarde, Scheduled Upgrade |
AP Maintain |
Manual Reboot, Scheduled Reboot |
Grading Administrator |
Super administrator, administrator and read-only guest |
Network Management |
WEB(https), SNMP v1/v2?SSH |
Network Deployment |
WEB(https) |
Diagnosis |
Ping?Traceroute?TCPdump |
Packet Analytics |
support |
AP Self healing |
support |
Debug Tool |
Interface, tunnel, etc |
Alarm |
Mail, SNMP Trap |
AP Trap Messages |
AP reboot, AP Shutdown, CPU, Memory usage etc |
AC System Trap Messages |
AC reboot, AC Shutdown, CPU, Memory and DHCP usage etc |
Captive Portal |
|
Portal Authentication |
support |
Portal Page Redirection |
Supported: SSID based, AP Portal page push |
Authentication Webpage |
WEB authentication page can self-define LOGO, background color, page word and disclaimer. |
Webpage Template |
support |
Portal by-pass Proxy |
support |
Authentication Page Push |
Push different pages according to different SSID AP position, and terminal types. |
Consumer Analysis |
|
Consumer Traffic Analysis |
Statistics and trends of visiting customers, returning rate, and the average residence time/Throughput etc. |
Data Export |
Export of original data |
Maps and Floor Plans |
|
AP Dynamic Information |
Real-time display of each AP position, number of access users, real-time throughput, AP coverage, AP Txpower etc. |
Architectural Figure Import |
Import of building figure, floor area distribution, and free allocation of AP sign location |
Topology |
support |
Working Environment |
|
Operating Temperature |
-10?~60? |
Storage Temperature |
-30? ~ 70? |
Operating Humidity |
10%-90% (non-condensing) |
Storage Humidity |
10%-90% (non-condensing) |
Default Login IP |
192.168.10.1 |
Default User Name |
admin |
Default Password |
admin |
รับประกัน |
สินค้ารับประกัน 3 ปี |
