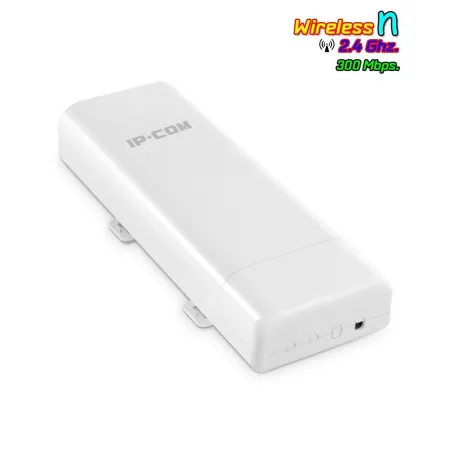

Overview | IP-COM AP515 Outdoor Wireless Access Point 2.4GHz มาตรฐาน N ความเร็ว 300Mbps เสาแบบทิศทาง 7dBi Port Gigabit พร้อม POE ในชุดอุปกรณ์ หรือใช้ร่วม POE มาตรฐาน 802.3af |
Product Information |
Model | AP515 |
Deployment | Pole Mount |
Dimensions | 270*94.86*67.5mm |
Application Scenarios | WiFi coverage for hotel pool,garden,campus,park etc |
Hardware Specifications |
Frequency Bands | 2.4GHz |
PHY Data Rates | 300Mbps |
Wi-Fi Standards | IEEE 802.11n/g/b |
CPU Processor | Broadcom 533MHz |
Interfaces | 1*10/100/1000Mbps PoE/LAN port |
Buttons | 1*RESET |
Antennas | 7dBi Directional Antenna |
Antenna Beamwidth | Horizontal: 70? Vertical: 70? |
Max Power Consumption | 15W |
Waterproof Level | IP64 |
LED Indicators | PWR,WiFi,LAN,Control |
Power Supply | PoE 802.3at |
Receiver Sensitivity | MCS0: -88dBm
MCS7: -72dBm |
Software Specifications |
IP Setting | Support |
Operating mode | AP,WDS,Client+AP |
WiFi Radio | Enable or Disable |
BSSIDs | 4 |
SSID Hiding | Enable or Disable |
User Isolation | Support |
Clients Limit | Connected user number limitation for every SSID |
VLANs | 802.1Q, 4094 VLAN IDs (1 to 4094) and SSID-based VLAN assignment |
RSSI Threshold | Support |
WMM Capable | Support |
APSD Capable | Support |
Wireless Client Statistic | Support |
Adjustable Power | Adjustable step by 1dBm |
Access Control | Connect limitation based on mac address |
Wireless Security | 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 |
DHCP Server | Support |
VPN Pass-Through | PPTP,L2TP |
Schedule Reboot | Support |
Circularly Reboot | Support |
Page Timeout | Support |
Network Diagnoses | Ping |
Time&Date Setting | Support |
System Log | Support |
Backup Configuration | Support |
Restore Configuration | Support |
Reset Device | Support from Web UI or AP Controller |
Username Management | Support from Web UI or AP Controller |
Reboot Device | Support from Web UI or AP Controller |
Firmware Upgrade | Support from Web UI or AP Controller |
Centralized Management | Managed by AC1000/AC2000/AC3000 |
Working Environment |
Operating Temperature | -20~55 |
Storage Temperature | -30 ~ 70 |
Operating Humidity | 10%-90% (non-condensing) |
Storage Humidity | 10%-90% (non-condensing) |
Default Login IP | 192.168.0.254 |
Default User Name | admin |
Default Password | admin |
Certifications | FCC/CE/RoHS |
