IP-COM EW9 AC1200 Enterprise Mesh Wi-Fi System, 802.11AC Wave 2, 1,200Mbps, 4 Port Lan Gigabit, True Mesh technology (Root Mesh ตัวหลัก)
สอบถามรายละเอียดสินค้าเพิ่มเติม LINE: @sysnet
Click ขอใบเสนอราคา
IP-COM EW9 Datasheet
IP-COM EW9 Quick Install Guide
IP-COM EW9 WIFI App User Guide
|
Product Specification |
|
|
Overview |
IP-COM EW9 AC1200 Enterprise Mesh Wi-Fi System, มาตรฐาน 802.11AC Wave 2 ความเร็วสูงสุด 1,200Mbps (867Mbps@5GHz / [email protected]), พร้อม 4 Port Lan ความเร็ว Gigabit, True Mesh technology Root Mesh อุปกรณ์กระจายสัญญาณ Wireless ตัวหลัก, เชื่อมต่อสาย LAN |
|
Hardware Specification |
|
|---|---|
|
Frequency |
Dua-Band：2.4GHz + 5GHz |
|
Wireless Rate |
[email protected] + 867Mbps@5GHz |
|
11AC Wave 2 |
Support |
|
Beamforming |
Support |
|
Networking Technology |
True Mesh |
|
Wireless Power |
2.4G：19dBm |
|
Antenna |
4*4dBi, Horizontal omnidirectional antenna |
|
Interface |

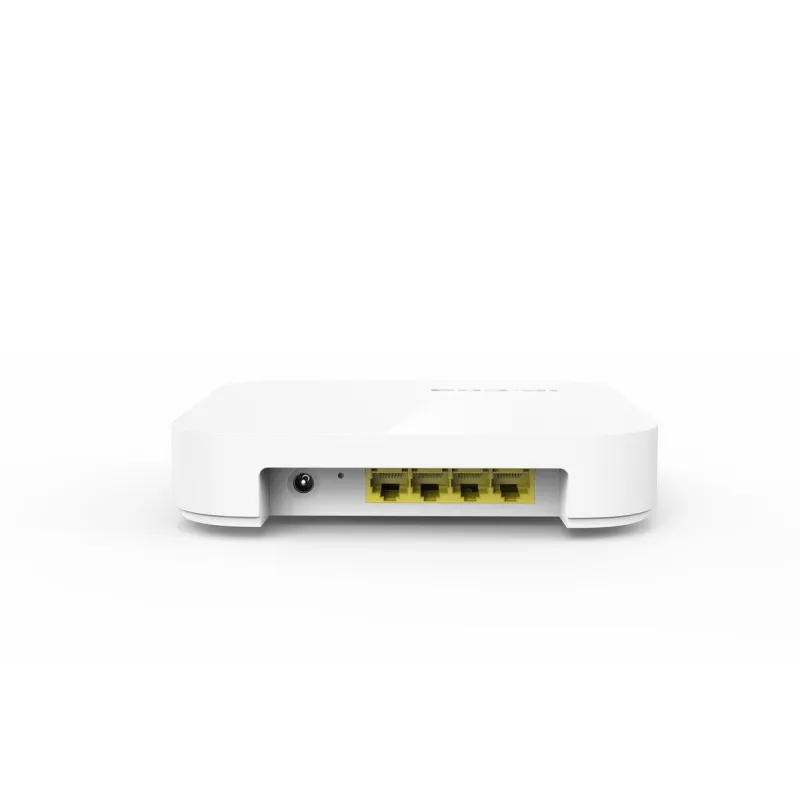

1*Power Port, 1*Reset button, 4*Gigabit Port |
|
Software Specification |
|
|
WAN Ports |
dual WAN |
|
QoS |
Support |
|
Seamless Roaming |
Support |
|
Installation and Deployment |
|
|
Mounting |
wall mount/ceiling mount/pole mount/desk mount |
|
APP Installation and Configuration |
Support |
|
Route Mode and Bridge Mode |
Support |
|
Mesh nodes in one Mesh System |
Typical:3 |
|
Management and Maitainance |
|
|
APP Management |
Support |
|
Authentication Access |
|
|
Local Certifiication |
Support |
|
Other |
|
|
Dimensions |
Product：170*170*36mm |
|
Packing List |
Bracketx1, Boltx4、Expansion sleevex4, Expansion scewx4, Ribbonx2 |
|
Packing Quantities |
20 |
|
Power Dimensions |
External switching power supply 12V/1A |
|
Certification |
CCC\FCC\CE\RoHs |
|
รับประกัน |
สินค้ารับประกัน 3 ปี |
|
|
|
Mesh Network Topolofy for Small Project
It is designed for office, restaurant, hotel and other SMB segment.
● The Mesh device works in router mode, and the host node of Mesh ACTS as the network core router for data forwarding
● Two Mesh satellites nodes and the host build a mesh system
● APP Local and remote management and maintenance. The engineer can check the real-time status of all Mesh networks that they have done through the cloud platform
Mesh Network Topolofy for Middle Project
It is designed for office, restaurant, hotel and other enterprise project.
● Three Mesh products are placed in one area to form an independent mesh network system . Mesh devices of different floors and areas are connected to the switch through the network.
● All the mesh nodes work as AP mode at the same time. All nodes can be managed locally and remotely by the APP.
● The engineer can check the operation status of all deployed Mesh networks through the cloud platform.
