    IP-COM F1105P-4-63W POE Switch ขนาด 5 Port ความเร็ว10/100Mbps จ่ายไฟ POE 802.3af จำนวน 4 Port
    • IP-COM F1105P-4-63W POE Switch ขนาด 5 Port ความเร็ว10/100Mbps จ่ายไฟ POE 802.3af จำนวน 4 Port
    • IP-COM F1105P-4-63W POE Switch ขนาด 5 Port ความเร็ว10/100Mbps จ่ายไฟ POE 802.3af จำนวน 4 Port

    IP-COM F1105P-4-63W POE Switch ขนาด 5 Port ความเร็ว10/100Mbps จ่ายไฟ POE 802.3af จำนวน 4 Port

    IP-COM

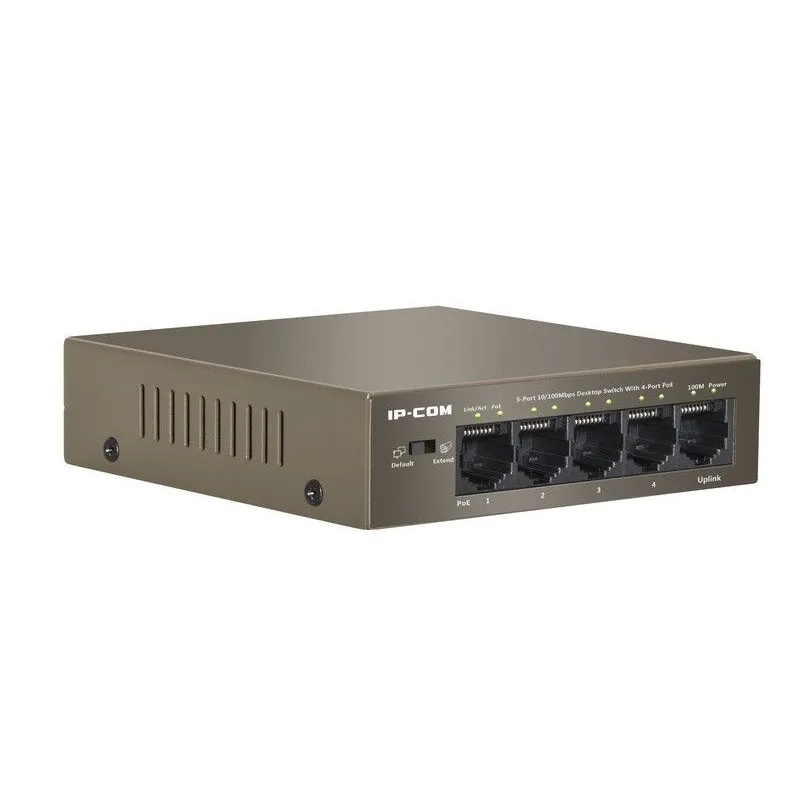

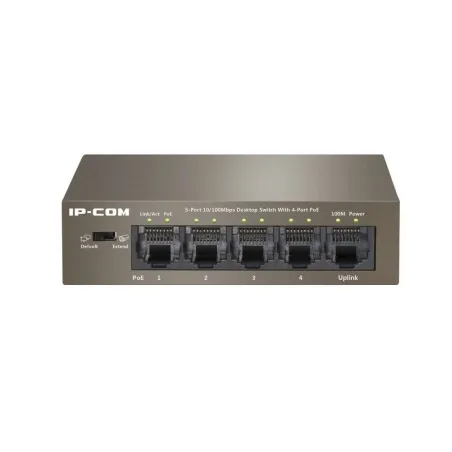

    สินค้าเปลี่ยนเป็นรุ่น IP-COM S1105-PWR-H IP-COM F1105P อุปกรณ์ POE Switch ขนาด 5 Port แบบ Desktop ความเร็ว 10/100Mbps จ่ายไฟ POE 802.3at/af ได้ 4 Port สูงสุดรวม 63W

    ฿0.00
    ยังไม่ได้รวมภาษี
    จำนวน
    Out-of-Stock


    สอบถามข้อมูลสินค้าเพิ่มเติม

    LINE ID: @sysnet  โทร: 02 102 4284

    Click ต้องการใบเสนอราคา

    close

    แบบฟอร์มขอใบเสนอราคา



    Rating:
    (0)
    รายละเอียด

    IP-COM F1105P Datasheet
    การเลือกใช้ POE (Power Over Ethernet) แบบ Passive และ แบบมาตรฐาน 802.3af/at

    Product Specification

    Overview

    IP-COM F1105P อุปกรณ์ POE Switch ขนาด 5 Port แบบ Desktop ความเร็ว 10/100Mbps จ่ายไฟ POE มาตรฐาน 802.3at/af ได้ 4 Port สูงสุดรวมทุก Port 63W (POE Budget)

    Protocol s and Standards

    IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at

    Interface

    5 Port ความเร็ว 10/100Mbps auto-negotiation ports, port1~4 support IEEE802.3 at/af standard

    Network Media

    100BASE-TX: UTP category 5, 5e cable (150m)

    Backbound Bandwidth

    1 Gbps

    Mac Address Table

    1 K

    Transmission Method

    Store-And-Forward

    Forwarding Rate

    10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port

    Indicator

    5*Link/Act per device, 4*PoE Status, 1*Power

    Input Power Supply

    External Power Supply: DC 51V/1.25A

    Consumption

    2 Watts (max. no PD connected) , 63 Watts (max. with 58W PD connected)

    Dimensions (L*W*H)

    186.7mm*106.7mm*33.3mm

    Weight

    <2kg

    WorkingTemperature

    0?~45?

    Working Humidity

    10%~90%(Non condensing)

    Certification

    FCC, CE, RoHS

    ประกัน

    1 ปี


    รายละเอียดสินค้า
    0

    ข้อมูลสินค้า

    Switches Layer
    UnManaged
    จำนวน Port Lan
    5 Port
    ความเร็ว Port Lan
    100Mbps
    จำนวน Port POE
    4 Port
    มาตรฐานจ่ายไฟ POE
    POE 802.3af (15.4W)
