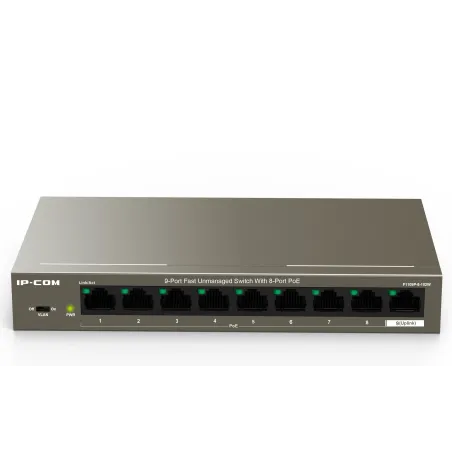

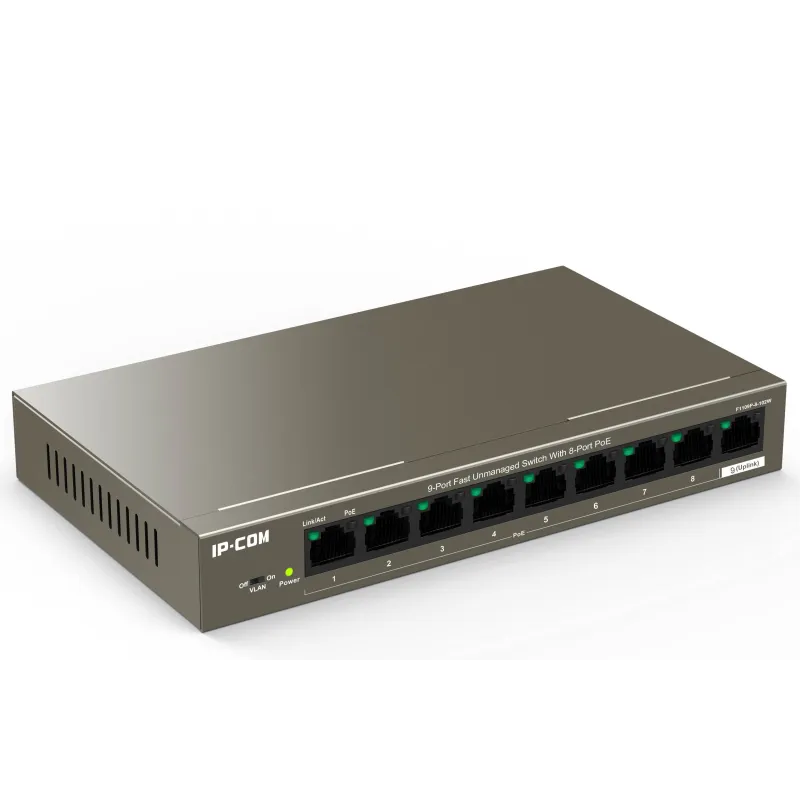

IP-COM F1109P-8-102W POE Switch 8 Port 100Mbps,Uplink 1 Port10/100 POE 802.3at 8 Port 102W

Product Specification

Overview

IP-COM F1109P-8-102W POE Switch ขนาด 8 Port แบบ Desktop ความเร็ว 100Mbps พร้อม 1 Port Uplink 10/100 จ่ายไฟ POE มาตรฐาน 802.3at ได้ 8 Port สูงสุดรวมทุก Port 102W ลากสาย Lan ได้ระยะสูงสุด 150 เมตร

MTBF

? 50,000 hours(about 5 years)

Indicators

Link/Act, PoE Status, Power, 100M

Fixed Ports

8 Port 10/100Base-TX RJ45 Ports(Data/Power)
1 Port 10/100Base-T RJ45 Port(Data)

lightning protection

6KV

Wire-speed forwarding

Support

Switching capacity

1.8 Gbit/s

Mac Address Table

2K MAC

PoE Supply

Port 1 ถึง Port 8 support standard IEEE802.3at/af power( maximum power for each port is 30W),PoE power type is end-span(1245+, 3678- line pair)
in full configuration:<102W
PoE Max Power Supply:99W

Dimensions

177.5mm*104mm*26mm (W ? D ? H)

Input Voltage

AC:100-240V ~ 50/60Hz
DC:51V /2.1A (Power Adapter )

Environment

Temperature: 0℃~40℃(32℉~104℉)
Storage Temperature: -40℃~70℃(-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Standard:the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
VLAN:ports 1 to 8 are isolated from each other,but can communicate with ports 9 (uplink port) respectively.

Certification

3C, FCC, CE, RHOS

ประกัน

3 ปี
