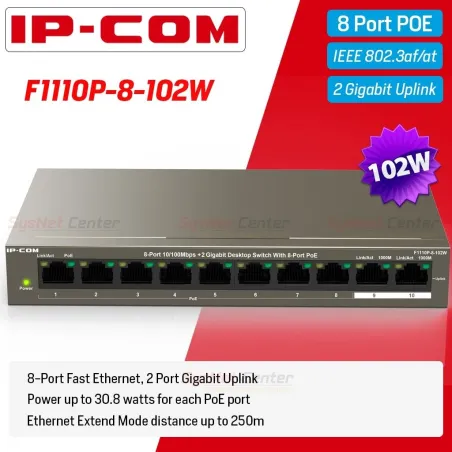

IP-COM F1110P-8-102W POE Switch 8 Port 100Mbps, 2 Port Gigabit จ่ายไฟ POE 802.3at 8 Port 120W

Product Specification

Overview

IP-COM F1110P-8-102W POE Switch ขนาด 8 Port แบบ Desktop ความเร็ว 100Mbps พร้อม 2 Port Gigabit จ่ายไฟ POE มาตรฐาน 802.3at ได้ 8 Port สูงสุดรวมทุก Port 102W ลากสาย Lan ได้ระยะสูงสุด 150 เมตร

MTBF

? 50,000 hours(about 5 years)

Indicators

Link/Act, PoE Status, Power, 1000M

Fixed Ports

8 Port 10/100Base-TX RJ45 Ports(Data/Power)
2 Port 10/100/1000Base-T RJ45 Port(Data)

lightning protection

6KV

Wire-speed forwarding

Support

Switching capacity

5.6 Gbit/s

Mac Address Table

4K MAC

PoE Supply

Port 1 ถึง Port 8 support standard IEEE802.3at/af power( maximum power for each port is 30W),PoE power type is end-span(1245+, 3678- line pair)
in full configuration:<102W
PoE Max Power Supply:99W

Dimensions

177.5mm*104mm*26mm (W ? D ? H)

Input Voltage

AC:100-240V ~ 50/60Hz
DC:51V /2.1A (Power Adapter )

Environment

Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

One-key Mode

Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation.
VLAN Mode: 1-8 port can be isolated each other but 1-8 port can connect to 9/10 port  after open VLAN to stop broadcast storm to increase forwarding rate of  frame.
Extend Mode: If Extend mode is enabled, VLAN isolation is enabled. Port 1-4 will be isolated respectively (10Mbps auto-negotiation), but can communicate with the Uplink port. And the delivery distance of powering and network data is up to 250m (10Mbps).

Certification

3C, FCC, CE, RHOS

ประกัน

3 ปี
