16*Link/Act per device 1*G1 Link/Act per device 1*SFP Link/Act per device 1*PoE-MAX per device 1*Power per device
Interface

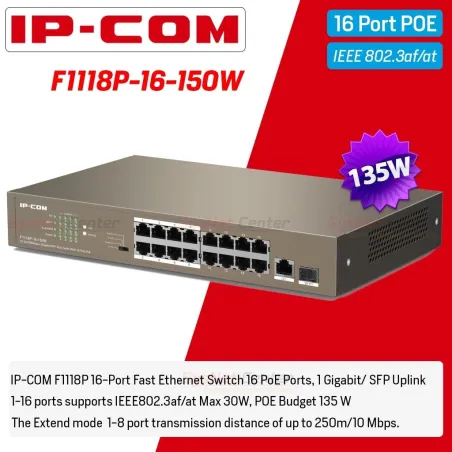

16 10/100Base-TX ports(Data/Power) 1 10/100/1000Base-T port(Data) 1 1000Base-X SFP port
Port Lightning Protection
6KV
Store and forward
Yes
Exchange Capacity
7.2 Gbit/s
Packet forwarding rate
5.36Mpps
MAC Address Table
4K
PoE supply management
Port 1 to Port 16 support IEEE802.3at/af POE standard
PoE through pin
1 2 4 5 +,3 6 7 8 -
Voltage input range
AC:100-240V~ 50/60Hz
Dimensions
294*178*44mm( W x D x H )
Power Consumption
in full configuration:<150W PoE Max Power Supply:135W
Port Features

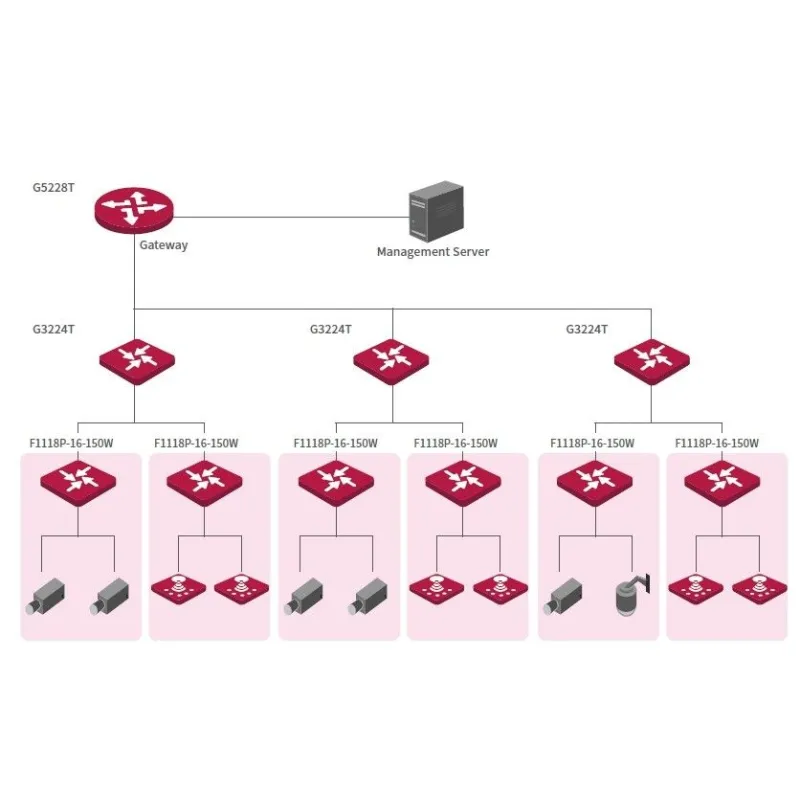

CCTV: 1-8 ports based CoS, If multiple IP cameras are connected to the switch, you are recommended to enable this mode and connect the G1 or SFP1 port of this switch to the upstream device to which the monitoring computer connects. This ensures smoother monitoring video playback. Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. VLAN: In this mode,1-16 ports of the switch cannot communicate with each other, but can communicate with the G1 and SFP1 ports.Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing? Extend: In this mode, the data rate of 1-8 port of the switch is limited to 10 Mbps, whereas the maximum transmission distance of the port is increased to 250 meters. All the ports of the switch can communicate with each other.
