Product Specification |

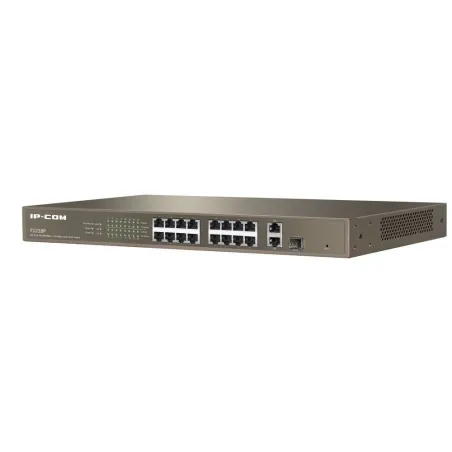

| IP-COM F1218P อุปกรณ์ L2-Managed POE Switch แบบ Rack Mount ขนาด 16 Port ความเร็ว 10/100 Mbps , 2 Port Gigabit, 1 Port SFP รองรับจ่ายไฟ POE จำนวน 16 Port รวมสูงสุด 180W มาตรฐาน 802.3af จ่ายไฟสูงสุด 15.4W ต่อ Port, มาตรฐาน 802.3at จำนวน 16 Port จ่ายไฟสูงสุด 30.8W ต่อ Port |
Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1W, IEEE 802.1Q |
Mean Time Between Failures (MTBF) | ? 100 thousands hours |
Interfaces | 16 10/100Mbps auto-negotiation RJ45 ports (Ports 1-16, Data/Power)
2 10/100/1000Mbps auto-negotiation RJ45 ports (G1, G2)
1 1000Mbps SFP port (Combo) |
PoE Power | Maximum total PoE power: 180W
The whole consumption: ? 200W
Ports 1-16 can output PoE power simultaneously at IEEE 802.3af standard (15.4W); or eight of them can output PoE power at IEEE 802.3at standard (30W);
Supports 8 pins powering, which means pin 1,2,3,6 and pin 4,5,7,8 can power simultaneously. |
LEDs | 1 Power LED; 1 System LED; 1 PoE MAX LED;
16 PoE status LEDs; 16 10/100Mbps Link/Act LEDs;
3 10/100/1000Mbps Link/Act LEDs |
Forward Mechanism | Store-and-forward |
Switching Capacity | 7.2Gbps |
Packet Forwarding Rate | 5.4Mpps |
MAC Address Table Capacity | 4K |
Power Input | 100-240V AC, 50/60Hz |
Dimension | 440mm ? 180mm ? 44mm |
Operation| Storage Temperature | 0? ~ 40?| -40? ~ 70? |
Ethernet Extension | Enabling Ethernet extension mode can extend the transmission distance of data and power to 250m (Cat.5e). |
PoE | IEEE 802.3at/ IEEE 802.3af standard
port PoE enabling/ disabling.
PoE temperature protecting.
PoE powering status display.
dynamic PoE powering; the default port powering priority is (Port 1> Port 2 > Port3 >…> Port 16). |
Security | Port-MAC address binding |
VLAN | One-click VLAN
Port VLAN (Up to 16 groups)
IEEE 802.1Q VLAN (Up to 32 groups) |
Port Trunk | manual aggregation
up to 3 aggregation groups and up to 4 ports per group |
STP | IEEE 802.1d ST
PIEEE 802.1w RSTP |
Multi Broadcast | IGMP Snooping and IGMP v1/v2. |
Port Monitor | port mirroring (N:1) |
STP | IEEE 802.1d STP
IEEE 802.1w RSTP |
Multi Broadcast | IGMP Snooping and IGMP v1/v2. |
Port Monitor | port mirroring (N:1) |
MAC Address Management | MAC address auto-aging and static MAC address. |
Update and Uploading | HTTP update
uploading/downloading config file |
Management and Maintenance | SNMP v1/v2 and Web Management. |
