Product Specification |

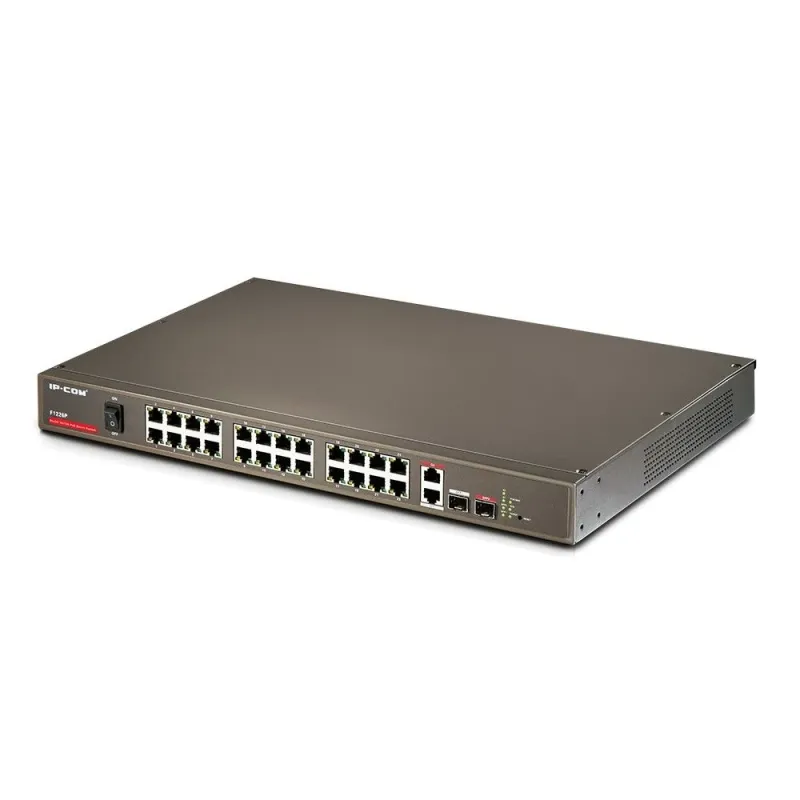

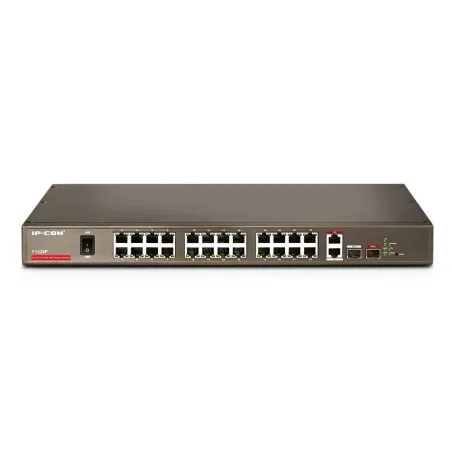

Overview | IP-COM F1226P อุปกรณ์ L2-Managed POE Switch แบบ Rack Mount ขนาด 24 Port ความเร็ว 10/100 Mbps , 2 Port Gigabit, 2 Port SFP รองรับจ่ายไฟ POE จำนวน 24 Port รวมสูงสุด 370W มาตรฐาน 802.3af จ่ายไฟสูงสุด 15.4W ต่อ Port, มาตรฐาน 802.3at จำนวน 24 Port จ่ายไฟสูงสุด 30.8W ต่อ Port |
Protocol s and Standards | IEEE 802.3, IEEE 802.3, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1D, IEEE 802.3af, IEEE 802.1Q , IEEE 802.1p, IEEE 802.1x, IEEE 802.1W, SNMP, IGMP |
Backplane bandwidth | 12.8Gbps |
Linear-speed exchange on the second layer | All ports support |
MTBF | 100,000hours |
Performance |
Store and forward | Yes |
Exchange capacity | 8.8Gbit/s |
MAC address entries | 4K Support setting the maximum number of MAC addresses for learning |
Port and module | 24 Ports 10/100Mbps
2 Ports 10/100/1000Mbps
2 Port SFP (combo) |
Optional power supply |
Power supply module | Providing 24 ports under IEEE 802.3af(15.4W) or 12 ports under IEEE 802.3at(30W)
PoE through 1 2 3 6 pin |
Voltage input range | 176V~264V AC 50/60Hz |
Total power consumption | PoE consumption up to 370W |
Operating temperature | -10 ?~45 ? |
Storage temperature | -40 ?~70 ? |
Software Feature |
PoE management | Support setup of PoE
Support power adjustable by priority
Support over temperature protection for PoE module |
VLAN | Support VLAN(4K) based on ports
Support 802.1QVLAN |
Mirroring | Support local mirror image |
Link aggregation | Support LACP, manual link aggregation
Support up to 6 link aggregation groups and up to 8 GE ports per group |
QoS | Support message transmission for ports and limitation of speed
Support SP & WRR |
Layer 2 ring network protocol | Support STP/RSTP and looped Network for devices |
MAC address management | Support MAC aging
MAC filter
static MAC |
Multicast | Support IGMP Snooping
Support IGMP V1/V2 |
Security features | Support management for user classification and password protection
Support IEEE 802.1X authentication |
Port features | Support IEEE 802.1X flow control (Full duplex)
Support broadcast storm control base on ports
Support broadcast storm control based on PPS |
Management and maintenance | Support SNMP v1/v2

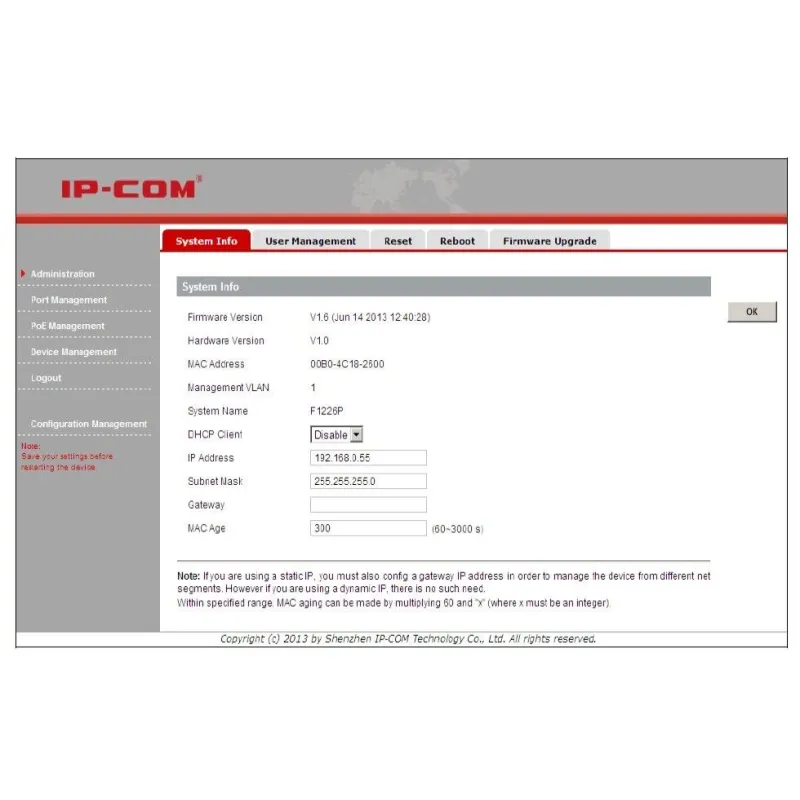

Support WEB-based management
Support cable detection
Support loopback detection for ports
Support system log, hierarchical alarm debugging information output |
W x H x D | 440*284*44mm |
Weight | 5 kg |
Height | - |
ประกัน | 3 ปี |
| |
