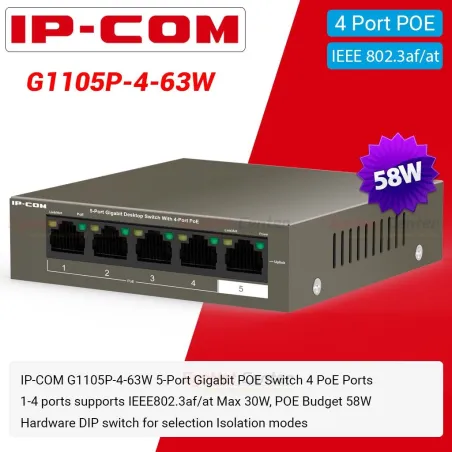

IP-COM G1105P-4-63W POE Switch 5 Port Gigabit 4 POE 802.3af/at 58W Port Isolate

Product Specification

Overview

IP-COM G1105P-4-63W POE Switch Giabit 5 Port แบบ Desktop
ความเร็ว Gigabit จ่ายไฟ POE มาตรฐาน 802.3af/at ได้ 4 Port สูงสุด 58W รองรับการทำ Port Isolate ง่ายๆ ด้วยการเลื่อน DIB Switch

MTBF

≥100,000hours

Indicator

5 * Link/Act per device
4 * PoE per device
1 * Power per device

Interface

4 Port 10/100/1000Base-T (Data/Power)
1 Port 10/100/1000Base-T (Data)

Port Lightning Protection

6KV

Store and forward

Yes

Exchange Capacity

10 Gbps

Packet forwarding rate

7.44Mpps

RAM Data Buffer

1Mb

MAC Address Table

2K

PoE supply management

Port 1 to Port 4 support  IEEE802.3at/af PoE standard

PoE through pin

1 2 4 5 +，3 6 7 8 -

Voltage input range

52VDC Adapter

Dimensions

100*100*26mm ( W x D x H )

Power Consumption

in full configuration：<63W
PoE Max Power Supply：58W

Port Features

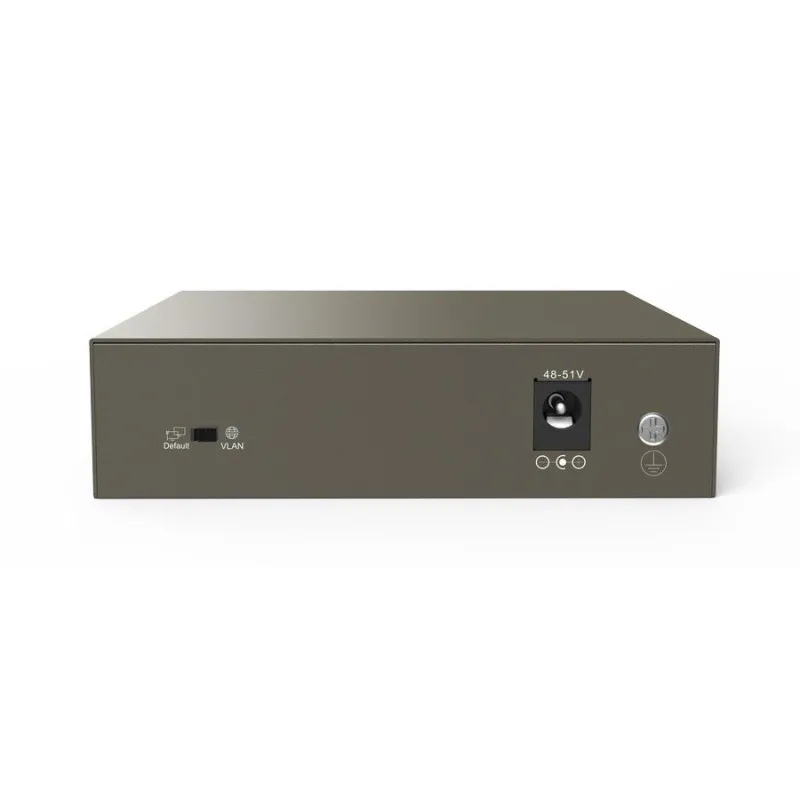

Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
VLAN: In this mode,1-4 ports of the switch cannot communicate with each other, but can communicate with the 5 port .Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing。

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

ประกัน

3 ปี
