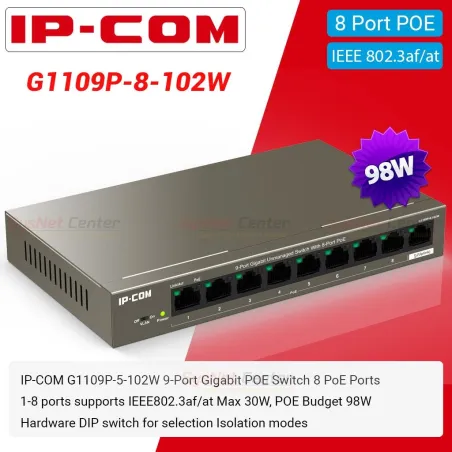

IP-COM G1109P-8-102W POE Switch 9 Port Gigabit 8 POE 802.3af/at 92W Port Isolate

Product Specification

Overview

IP-COM G1109P-8-102W POE Switch Giabit 59Port แบบ Desktop
ความเร็ว Gigabit จ่ายไฟ POE มาตรฐาน 802.3af/at ได้ 8 Port สูงสุด 92W รองรับการทำ Port Isolate ง่ายๆ ด้วยการเลื่อน DIB Switch

Standard&Protocol

IEEE 802.3/IEEE 802.3u/IEEE 802.3x/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at

Indicator

9 * Link/Act per device
1 * Power per device

Interface

8 Port 10/100/1000M Base-T (Data/Power)
1 Port 10/100/1000M Base-T (Data)

Port

Lightning Protection 6KV

Store and forward

Yes

Exchange Capacity

18 Gbps

Packet forwarding rate

13.39 Mpps

MAC Address Table

16K

PoE supply management

Port 1-8 support IEEE802.3at/af PoE standard

PoE through pin

1 2 4 5 +;3 6 7 8 -

Voltage input range

AC: 100-240V～50/60Hz
DC：51V 2A

Dimensions

177.5*104*26mm ( W x D x H )

Power Consumption

In full configuration: 102W
PoE Max Power Supply: 92W

Port Features

Standard:the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
VLAN:ports 1 to 8 are isolated from each other,but can communicate with ports 9 (uplink port) respectively.

Environment

Operating Temperature: 0℃~40℃(32℉~104℉)
Storage Temperature: -40℃~70℃(-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

ประกัน

3 ปี
