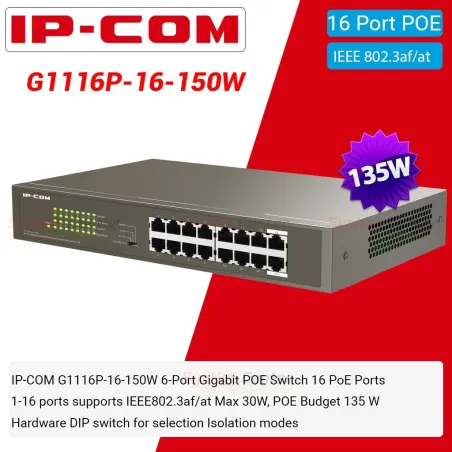

IP-COM G1116P-16-150W POE Switch 16 Port Gigabit POE 802.3af/at 135W รองรับ Port Isolate

Product Specification

Overview

IP-COM G1116P-16-150W POE Switch Giabit 16 Port แบบ Rack พร้อมหูยึดตู้ Rack
ความเร็ว Gigabit จ่ายไฟ POE มาตรฐาน 802.3af/at ได้ 16 Port สูงสุด 135W รองรับการทำ Port Isolate ง่ายๆ ด้วยการเลื่อน DIB Switch

Standard&Protocol

IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3ab、IEEE802.3af、IEEE802.3at

Indicator

16*Link/Act per device
16*PoE per device
1*Power per device

Interface

16 10/100/1000Base-T ports(Data/Power)

Port

Lightning Protection 6KV

Store and forward

Yes

Exchange Capacity

32 Gbps

Packet forwarding rate

23.6Mpps

MAC Address Table

8K

PoE supply management

Port 1-16 support IEEE802.3at/af PoE standard

PoE through pin

1 2 4 5 +;3 6 7 8 -

Voltage input range

AC: 100-240V～50/60Hz

Dimensions

294*178*44mm( W x D x H )

Power Consumption

in full configuration:<150W
PoE Max Power Supply:135W

Port Features

Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
CCTV: the port cache is optimized and PoE ports 1-8 have higher priorities over the other ports. All the ports of the switch can communicate with each other.
VLAN: ports 1 to 14 are isolated from each other, but can communicate with ports 15 and 16 (uplink ports) respectively.
Isolation：ports 1 to 14 and ports 15 to 24 belong to two different VLAN.This mode can be used to isolate supervision network and wireless network to make them not interfere with each other.

Operating
Storage Temperature

0℃~40℃ (32℉~104℉)
-40℃~70℃ (-40℉~158℉)

Operating
Storage Humidity

10%~90% non-condensing
5%~90% non-condensing

ประกัน

3 ปี
