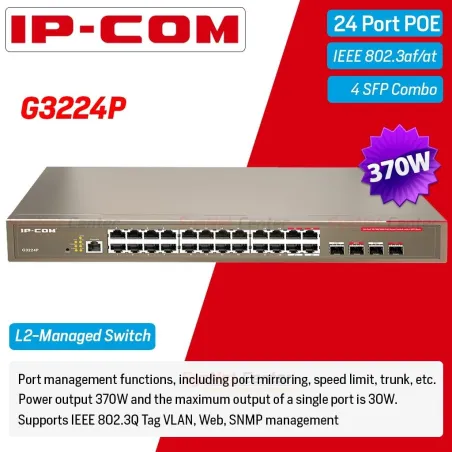

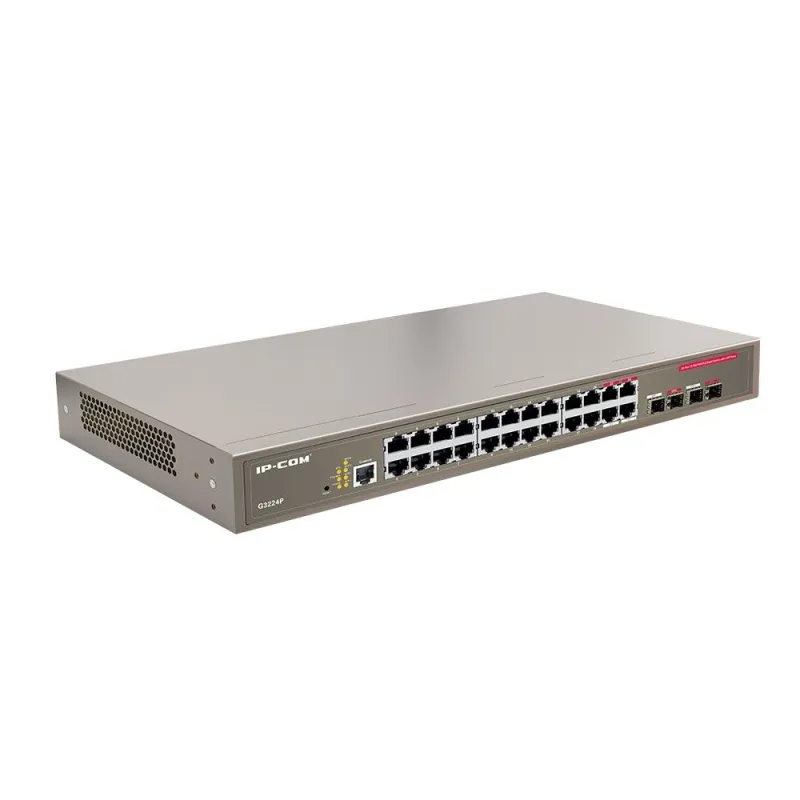

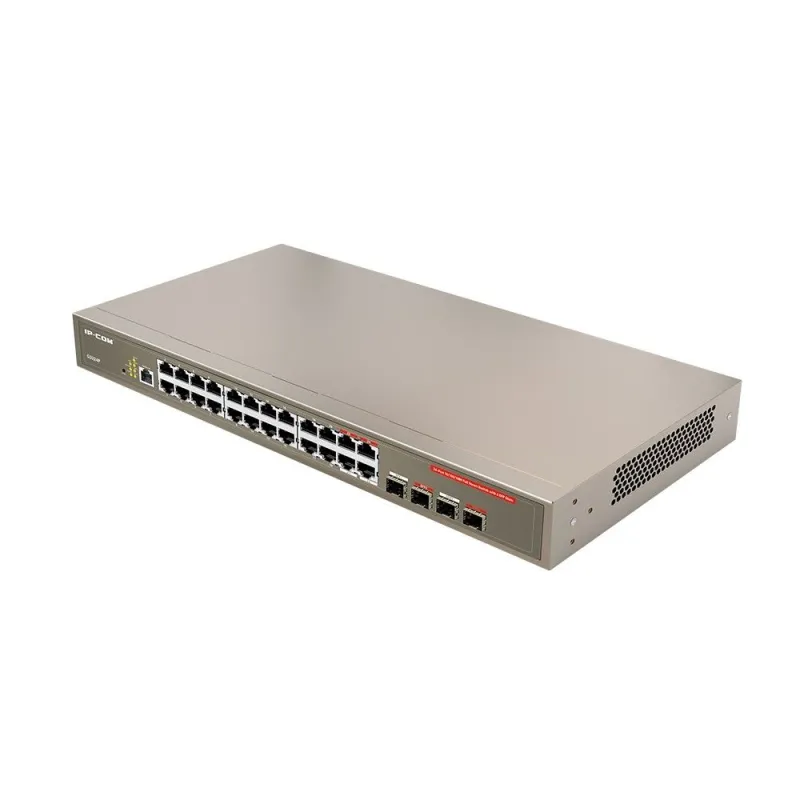

IP-COM G3224P L2-Managed Gigabit POE Switch 24Port, 4 SFP, POE 24 Port 370W

Product Specification

Overview

IP-COM G3224P อุปกรณ์ L2-Managed Gigabit POE Switch แบบ Rackmount ขนาด 24 Port ความเร็ว Gigabit 10/100/1000 Mbps แบบ Rackmount , 4 Port SFP

จ่ายไฟ POE มาตรฐาน 802.3af/at จำนวน 24 Port จ่ายไฟสูงสุด 30W ต่อ Port สูงสุดรวม 370W

Protocol s and Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at

linear-speed exchange on the second layer

linear-speed of all ports up to 35.7Mpps

Backplane bandwidth

56Gbps

Performance

Store and forward

Yes

Exchange Capacith

56Gbit/s

MAC Address

8K Support setting the maximum number of MAC addresses for learning

Port and Module

24 GE Ports 4 SFP (combo)

Indicators

POWER,SYS,LINK/ACT,SPEED,SFP,POE

Power supply module

Providing 24 port under 802.3af(15.4W) or 12 ports under 802.3at(30W).

PoE through 1 2 3 6 pin

Voltage input range

AC 100V~240V ;50/60Hz

Dimension

440*284*44mm (L*W*H)

Weight

5kg

Power consumption

Total power consumption up to 450W, PoE consumption up to 370W

Operating temperature

0 ⁰C~45 ⁰C

Storage temperature

-40 ⁰C~70 ⁰C

Relative humidity(Operational)

10%~95%(noncondensing)

Relative humidity(Storage)

10%~95%(noncondensing)

Software Feature

Link aggregation

Support LACP
Support manual link aggregation
Support up to 12 link aggregation groups and up to 16 GE ports per link aggregation group

PoE management

Support setup of PoE and power adjustable by priority
Support over temperature protection for PoE module
Support graphical management, detection of PD equipment and setting of the power consumption

Second looped network protocol

Support STP/RSTP/MSTP
Layer 2 ring network protocols

VLAN

Support VLAN(4K) based on ports and stardand
Support Voice VLAN, VLAN Mapping, VLAN VPN(QinQ)

DHCP

Support DHCP Snooping, DHCP Relay/Client/Server
Support DHCP Snooping Option82/DHCP Relay Option82

Support ACL

Provide advanced security strategies and L2~L4 packet filter
Support ACL based on Time Range

Support QoS

Support message transmission for ports and limitation of speed
Support redirect message and CAR
Support 8 ports for output sequence
Support SP&WRR
Support remark for 802.1p/DSCP priority
Support management for QoS Profile

Security service

Support management for user classification and password protection
Support IEEE 802.1X authentication
Support centralized MAC address authentication
Support intrusion detection of ARP and protection of IP source address
Support SSH2.0 and port isolation

Management and maintenance

Support downloading and upgrading through XModem/FTP/ TFTP
Support configuration through CLI, Telnet, Console port
Support SNMP v1/v2/v3 and WEB-based management
Support RMON(Remote Monitoring)
1,2,3,9 RMON groups of MIB information
Support system log, hierarchical alarm, debugging information output
Support PING, Traceroute, Multicast Traceroute
Support remote maintenance through telnet
Support VCT
Support DLDP
Support loopback detection

ประกัน

3 ปี
