Product Specification |

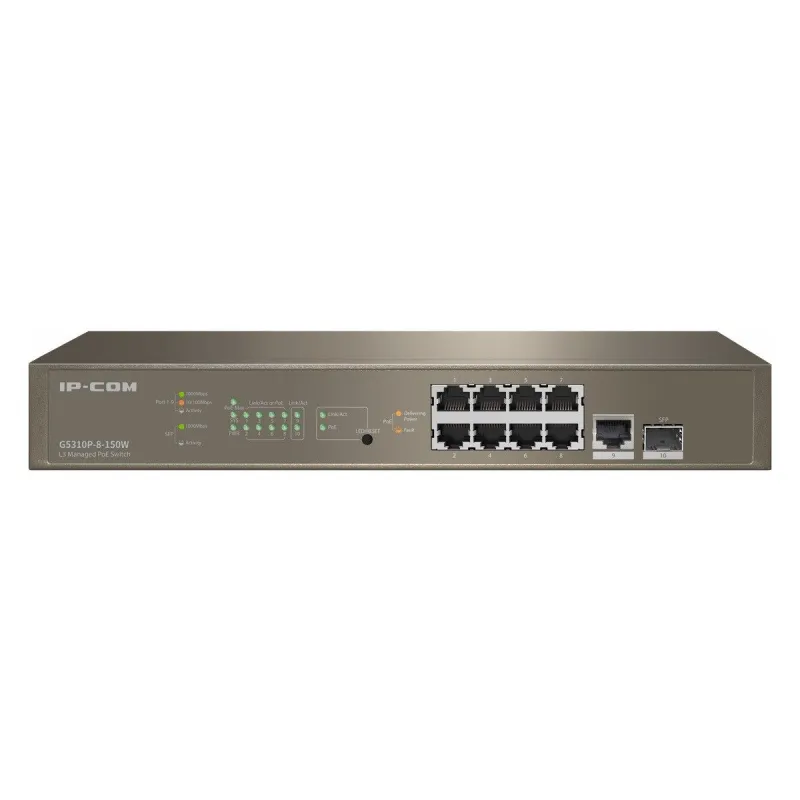

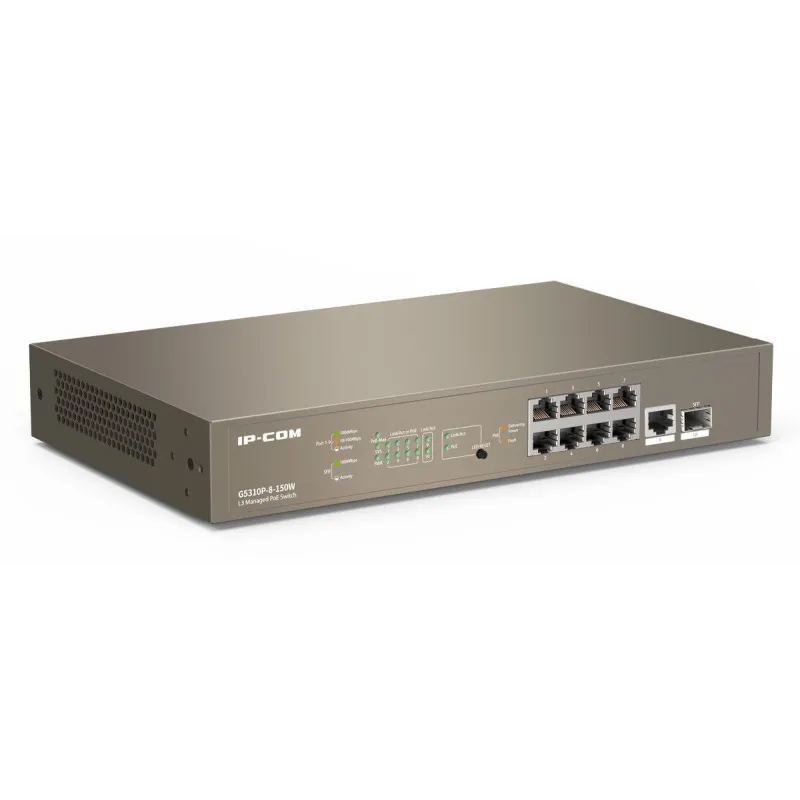

Overview | IP-COM G5310P-8-150W L3-Managed Gigabit PoE Switch ขนาด 8 Port ความเร็ว จ่ายไฟ POE 802/3af/at 8 Port 130W รองรับ Static Routing, VLAN |
Standards | IEEE802.3, IEEE802.3u, IEEE802.3ab,IEEE802.3ad, IEEE802.3z, IEEE802.3x, IEEE802.1p, IEEE802.1q, IEEE802.1w, IEEE802.1d, IEEE802.1s, IEEE802.3af/at |
LED indicators | One Link/Act or PoE LED indicator for each port
One Link/One Link/Act mode converting LED indicator for each device
One PoE mode converting LED indicator for each device
One PoE Max LED indicator for each device
One Power LED indicator for each device
One SYS LED indicator for each device |
Interfaces | 8 x 10/100/1000 Base-T Ethernet ports (Data/Power)
1 x 10/100/1000 Base-T Ethernet ports (Data)
1 x 1000 Base-X SFP ports (Data) |
Lightning protection | Port: 6kV
Power: 6kV |
Forwarding mode | Store-and-forward |
Switching capability | 24Gbps |
Packet forwarding rate | 17.9Mpps |
Buffer | 12Mbit |
MAC address table | 16K |
PoE power supply | Ports 1 to 24 support IEEE 802.3af/at standard PoE power supply
1 2 4 5 +, and 3 6 7 8 - |
Whole switch consumption | Whole switch consumption: <150W
Maximum PoE output power: 130 W |
Input voltage | 100-240V～ 50/60Hz |
Dimensions/td> | 294 mm x 179.6 mm x 44 mm(L*W*H)< |
Operating environment | Operating temperature: 0C - 40C
Storage temperature: -40C - 70CC
Operating humidity: (10% - 90%)RH, non-condensing
Storage humidity: (5% - 90%)RH, non-condensing |
Certificates | CCC, FCC, CE, RoHS |
Software specifications |
|---|
PoE power supply management | Supports port PoE configuration and power supply with priority
Supports PoE over-temperature protection
Supports PoE scheduled management
Supports intelligent management and PoE-powered device detection (port status, power assignment and PoE-powered device status) |
Security features | Supports ARP receiving limit
Supports unknown MAC address discard
Supports DoS attack defense
Supports 802.1x security authentication
Supports Radius authentication |
VLAN | Supports IEEE 802.1Q VLAN
Supports VLAN Layer-3 interfaces
Supports three port modes: Access, Trunk and Hybrid |
DHCP | Supports DHCP Relay
Supports DHCP Snooping
Supports Option 82 policy configuration |
L3 Routing | Supports VLAN-based routing
Supports IPv4 static routing
Supports static ARP |
Port aggregation | Supports static aggregation
Supports LACP dynamic aggregation |
Spanning tree | Supports IEEE 802.1d STP (Spanning Tree Protocol)
Supports IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
Supports IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
Supports edge port
Supports BPDU statistics |
Multicast | Supports IGMP Snooping V1/V2/V3
Supports port fast leave |
Port Mirroring | Supports N: 1 port mirroring |
QoS | Supports SP (Strict Priority)
Supports SWRR (Simple Weighted Round Robin)
Support WRR (Weighted Round Robin)
Supports 802.1p port trust mode
Supports DSCP port trust mode
Supports a maximum of 8 queue service quality mapping |
ACL | Supports MAC ACL
Supports IP ACL |
Loading and upgrade | Supports FTP/TFTP/HTTP upgrade
Supports configuration import and export |
Management and maintenance | Supports Telnet configuration, Console port configuration
Supports SNMP V1/V2/V3
Supports WEB management and maintenance
Supports Ping/Tracert Detection
Supports Cloud management
Support visual management of LAN |
ประกัน | 3 ปี |
|
