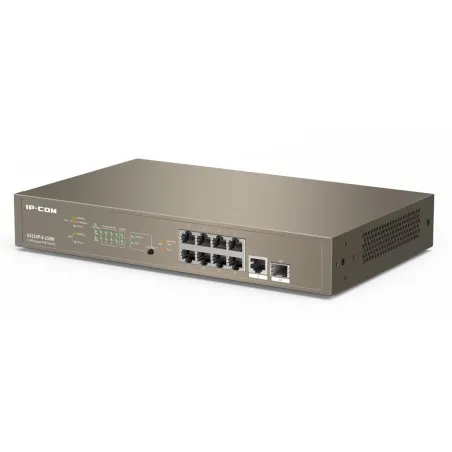

IP-COM G5310P-8-150W L3-Managed Gigabit PoE Switch 8 Port 130W
  • IP-COM G5310P-8-150W L3-Managed Gigabit PoE Switch 8 Port 130W
  • IP-COM G5310P-8-150W L3-Managed Gigabit PoE Switch 8 Port 130W
  • IP-COM G5310P-8-150W L3-Managed Gigabit PoE Switch 8 Port 130W
  • IP-COM G5310P-8-150W L3-Managed Gigabit PoE Switch 8 Port 130W

IP-COM G5310P-8-150W L3-Managed Gigabit PoE Switch 8 Port 130W

Rating

IP-COM G5310P-8-150W L3-Managed Gigabit PoE Switch ขนาด 8 Port ความเร็ว จ่ายไฟ POE 802/3af/at 8 Port 130W รองรับ Static Routing, VLAN

฿0.00
ยังไม่ได้รวมภาษี
จำนวน
สินค้าหมด



Line: @sysnet

Click โทรสอบถามข้อมูลเพิ่มเติม
รายละเอียด

IP-COM G5310P-8-150W Datasheet

Product Specification

Overview

IP-COM G5310P-8-150W L3-Managed Gigabit PoE Switch ขนาด 8 Port ความเร็ว จ่ายไฟ POE 802/3af/at 8 Port 130W รองรับ Static Routing, VLAN

Standards

IEEE802.3, IEEE802.3u, IEEE802.3ab,IEEE802.3ad, IEEE802.3z, IEEE802.3x, IEEE802.1p, IEEE802.1q, IEEE802.1w, IEEE802.1d, IEEE802.1s, IEEE802.3af/at

LED indicators

One Link/Act or PoE LED indicator for each port
One Link/One Link/Act mode converting LED indicator for each device
One PoE mode converting LED indicator for each device
One PoE Max LED indicator for each device
One Power LED indicator for each device
One SYS LED indicator for each device

Interfaces

8 x 10/100/1000 Base-T Ethernet ports (Data/Power)
1 x 10/100/1000 Base-T Ethernet ports (Data)
1 x 1000 Base-X SFP ports (Data)

Lightning protection

Port: 6kV
Power: 6kV

Forwarding mode

Store-and-forward

Switching capability

24Gbps

Packet forwarding rate

17.9Mpps

Buffer

12Mbit

MAC address table

16K

PoE power supply

Ports 1 to 24 support IEEE 802.3af/at standard PoE power supply
1 2 4 5 +, and 3 6 7 8 -

Whole switch consumption

Whole switch consumption: <150W
Maximum PoE output power: 130 W

Input voltage

100-240V~ 50/60Hz

Dimensions/td>

294 mm x 179.6 mm x 44 mm(L*W*H)<

Operating environment

Operating temperature: 0C - 40C
Storage temperature: -40C - 70CC
Operating humidity: (10% - 90%)RH, non-condensing
Storage humidity: (5% - 90%)RH, non-condensing

Certificates

CCC, FCC, CE, RoHS

Software specifications

PoE power supply management

Supports port PoE configuration and power supply with priority
Supports PoE over-temperature protection
Supports PoE scheduled management
Supports intelligent management and PoE-powered device detection (port status, power assignment and PoE-powered device status)

Security features

Supports ARP receiving limit
Supports unknown MAC address discard
Supports DoS attack defense
Supports 802.1x security authentication
Supports Radius authentication

VLAN

Supports IEEE 802.1Q VLAN
Supports VLAN Layer-3 interfaces
Supports three port modes: Access, Trunk and Hybrid

DHCP

Supports DHCP Relay
Supports DHCP Snooping
Supports Option 82 policy configuration

L3 Routing

Supports VLAN-based routing
Supports IPv4 static routing
Supports static ARP

Port aggregation

Supports static aggregation
Supports LACP dynamic aggregation

Spanning tree

Supports IEEE 802.1d STP (Spanning Tree Protocol)
Supports IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
Supports IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
Supports edge port
Supports BPDU statistics

Multicast

Supports IGMP Snooping V1/V2/V3
Supports port fast leave

Port Mirroring

Supports N: 1 port mirroring

QoS

Supports SP (Strict Priority)
Supports SWRR (Simple Weighted Round Robin)
Support WRR (Weighted Round Robin)
Supports 802.1p port trust mode
Supports DSCP port trust mode
Supports a maximum of 8 queue service quality mapping

ACL

Supports MAC ACL
Supports IP ACL

Loading and upgrade

Supports FTP/TFTP/HTTP upgrade
Supports configuration import and export

Management and maintenance

Supports Telnet configuration, Console port configuration
Supports SNMP V1/V2/V3
Supports WEB management and maintenance
Supports Ping/Tracert Detection
Supports Cloud management
Support visual management of LAN

ประกัน

3 ปี
