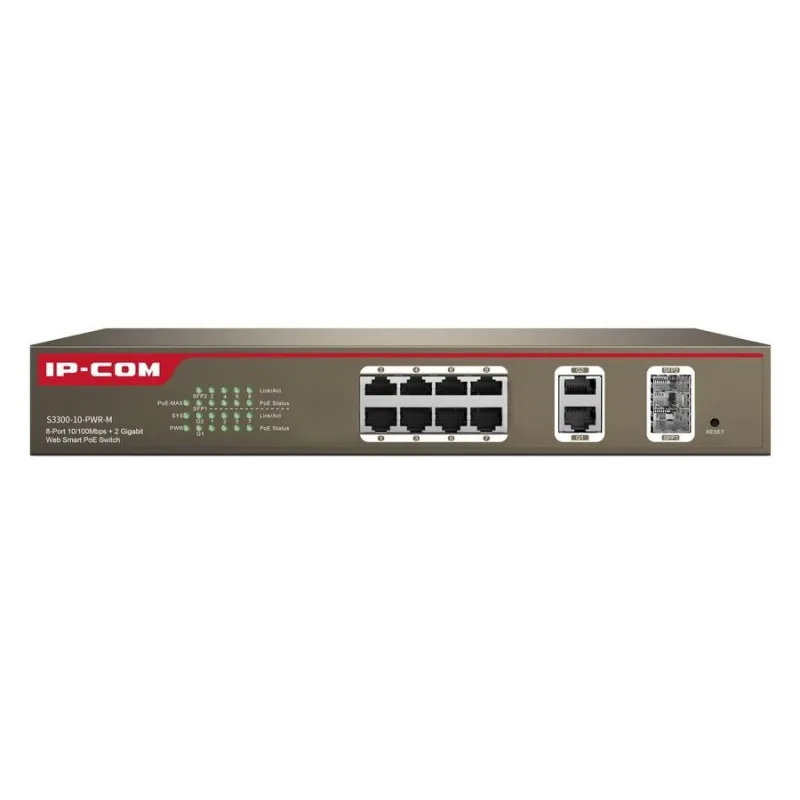

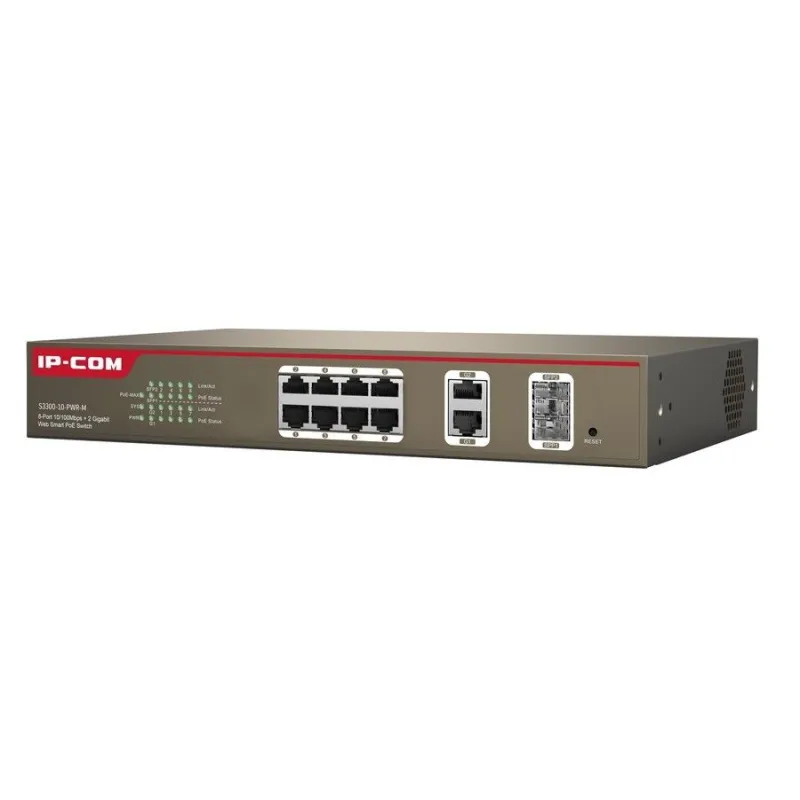

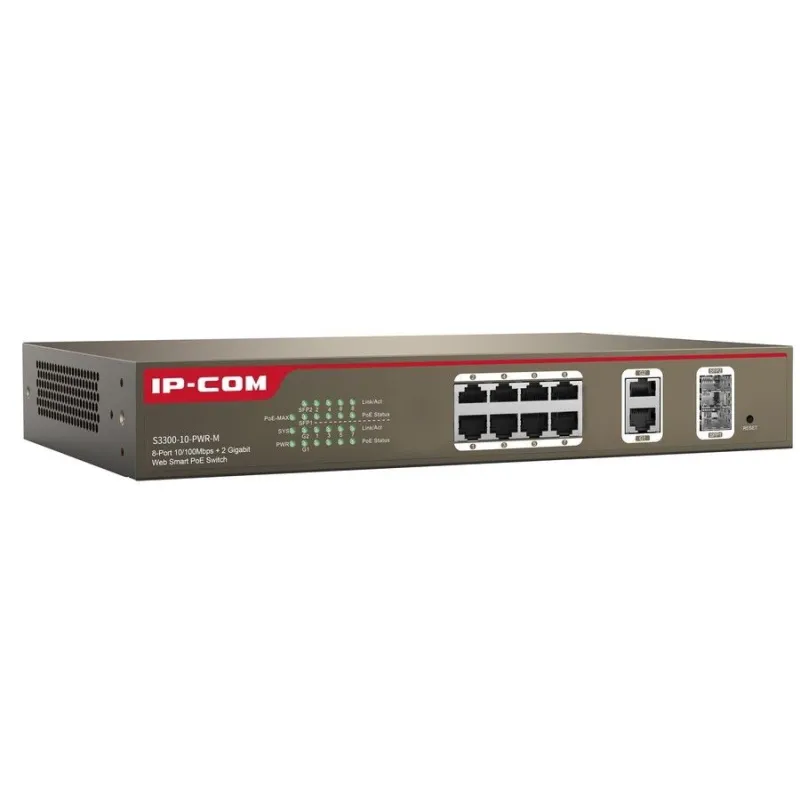

    IP-COM S3300-10-PWR-M Web Smart PoE Switch 8 Port 10/100Mbps, 2 Port Gigabit จ่ายไฟ POE 802.3at/af 8 Port

    IP-COM

    IP-COM S3300-10-PWR-M Web Smart PoE Switch 8 Port 10/100Mbps, 2 Port Gigabit จ่ายไฟ POE 802.3af/at 8 Port จ่ายไฟสูงสุดรวม 123W

    ฿3,990.00
    ยังไม่ได้รวมภาษี
    จำนวน
    20 รายการ


    สอบถามข้อมูลสินค้าเพิ่มเติม

    LINE ID: @sysnet  โทร: 02 102 4284

    Click ต้องการใบเสนอราคา

    close

    แบบฟอร์มขอใบเสนอราคา



    Rating:
    (0)
    รายละเอียด

    IP-COM S3300-10-PWR-M Datasheet

    IP-COM S3300-10-PWR-M User Guide

    Product Specification



    Overview

    อุปกรณ์ Web Smart PoE Switch IP-COM S3300-10-PWR-M ขนาด 8 Port ความเร็ว 10/100Mbps, 2 Port Gigabit, 2 Port SFP จ่ายไฟ POE 802.3 มาตรฐาน af (15.4W) 8 Port และ มาตรฐาน at  (30W) ได้ 4 Port จ่ายไฟสูงสุดรวม 123W

    Hardware Feature

    Standard and protocol supported

    IEEE 802.3? IEEE 802.3u?IEEE 802.3z?IEEE 802.3ab?IEEE 802.3x?IEEE 802.1D?IEEE 802.1W?IEEE 802.1Q?IEEE 802.3af?IEEE 802.3at

    MTBF

    100,000hours

    Indicator LEDs

    Link/Act, PoE Status,System, Power,PoE Max

    Fixed Ports

    8 Port ความเร็ว 10/100Base-TX ports
    2 Port ความเร็ว Gigabit 10/100/1000Base-T ports
    2 Port 1000Base-X (SFP ports Combo)

    lightning protection

    ?6KV

    Store and forward

    Yes

    Exchange capacity

    5.6 Gbit/s

    MAC address entries

    4K MAC

    Power supply module

    Providing 8 ports under IEEE 802.3af(15.4W) or 4 ports under IEEE 802.3at(30W)

    PoE through pin

    1 2 4 5 +,3 6 7 8 -

    Voltage input range

    AC:100-240V~ 50/60Hz

    Dimension(L?W?H)

    294mm*178.8mm*44mm

    Weight

    ?5kg

    Total power consumption

    <150

    WPoE consumption up to 130W

    perating temperature

    0 ?~40 ?

    Storage temperature

    -40 ?~70 ?

    Relative humidity(Operational)

    10%~95%(noncondensing)

    Relative humidity(Storage)

    10%~95%(noncondensing)

    PoE management

    Support setup of PoE
    Support power adjustable by priority
    Support over temperature protection for PoE module

    VLAN

    Support VLAN(4K) based on ports
    Support 802.1Q VLAN

    Mirroring

    Support local mirror image

    Link aggregation

    Support LACP, manual link aggregation
    Support up to 6 link aggregation groups and up to 8 GE ports per group

    QoS

    Support message transmission for ports and limitation of speed
    Support SP & WRR

    Layer 2 ring network protocol

    Support STP/RSTP and looped Network for devices

    Certification

    FCC/CE/RoHS

    รับประกัน

    สินค้ารับประกัน 3 ปี





    รายละเอียดสินค้า
    20 รายการ

    ข้อมูลสินค้า

    Switches Layer
    L2 Managed
    จำนวน Port Lan
    8 Port
    ความเร็ว Port Lan
    100Mbps
    จำนวน Port POE
    8 Port
    มาตรฐานจ่ายไฟ POE
    POE+ 802.3at (30W)
    มี Uplink Port Lan Gigabit
    Yes
