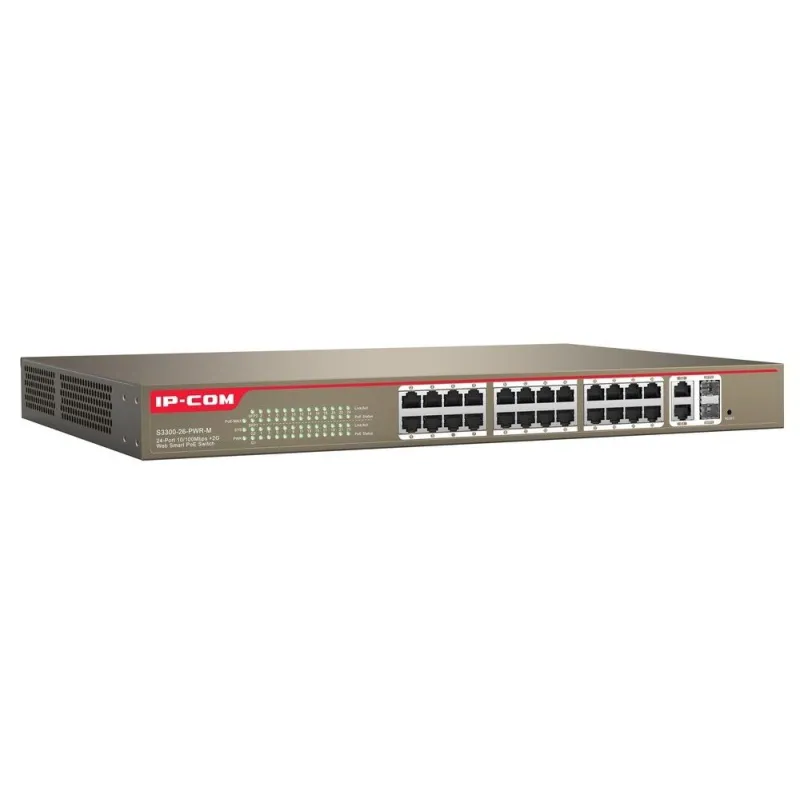

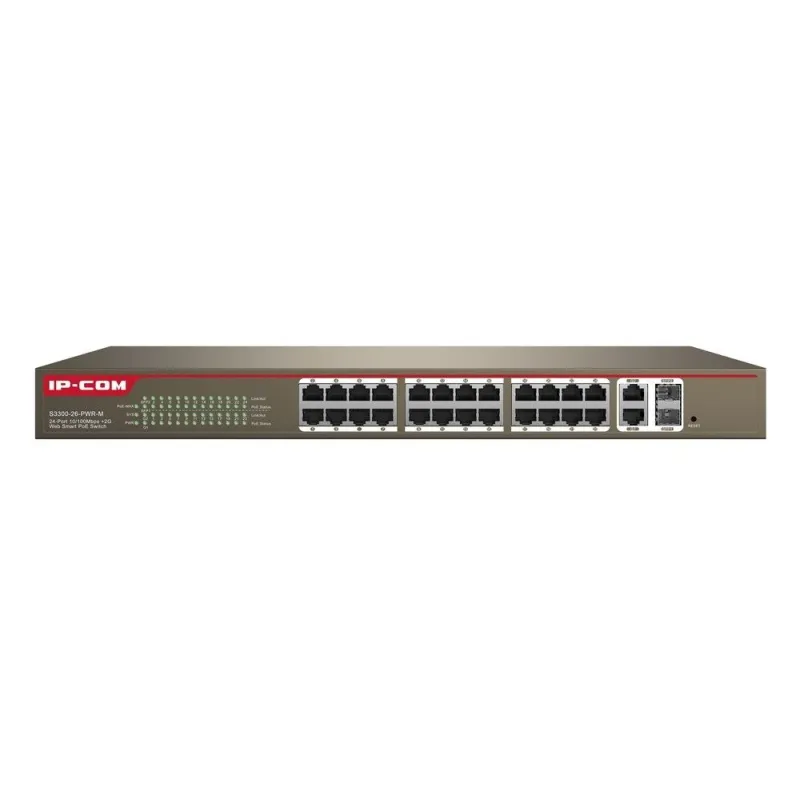

IP-COM S3300-26-PWR-M Web Smart PoE Switch 24 Port 100Mbps, 2 Port Gigabit/SFP POE 370W

Standard and protocol supported

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1D, IEEE 802.1W, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at

MTBF

100,000hours

Indicator LEDs

Link/Act, PoE Status,System, Power,PoE Max

Fixed Ports

24 Port ความเร็ว 10/100Base-TX ports
2 Port ความเร็ว 10/100/1000Base-T ports
2 Port 1000Base-X SFP ports Combo)

lightning protection

?6KV

Store and forward

Yes

Exchange capacity

8.8 Gbit/s

MAC address entries

4K MAC

Power supply module

Providing 24 ports under IEEE 802.3af(15.4W) or 12 ports under IEEE 802.3at(30W)

PoE through pin

1 2 4 5 +,3 6 7 8 -

Voltage input range

AC:100-240V~ 50/60Hz

Dimension(L?W?H)

440mm*284mm*44mm

Weight

?5kg

Total power consumption

<450W
PoE consumption up to 370W

perating temperature

0 ?~40 ?

Storage temperature

-40 ?~70 ?

Relative humidity(Operational)

10%~95%(noncondensing)

Relative humidity(Storage)

10%~95%(noncondensing)

PoE management

Support setup of PoE
Support power adjustable by priority
Support over temperature protection for PoE module

VLAN

Support VLAN(4K) based on ports
Support 802.1QVLAN

Mirroring

Support local mirror image

Link aggregation

Support LACP, manual link aggregation
Support up to 6 link aggregation groups and up to 8 GE ports per group

QoS

Support message transmission for ports and limitation of speed
Support SP & WRR

Layer 2 ring network protocol

Support STP/RSTP and looped Network for devices

Certification

FCC/CE/RoHS

รับประกัน

สินค้ารับประกัน 3 ปี
