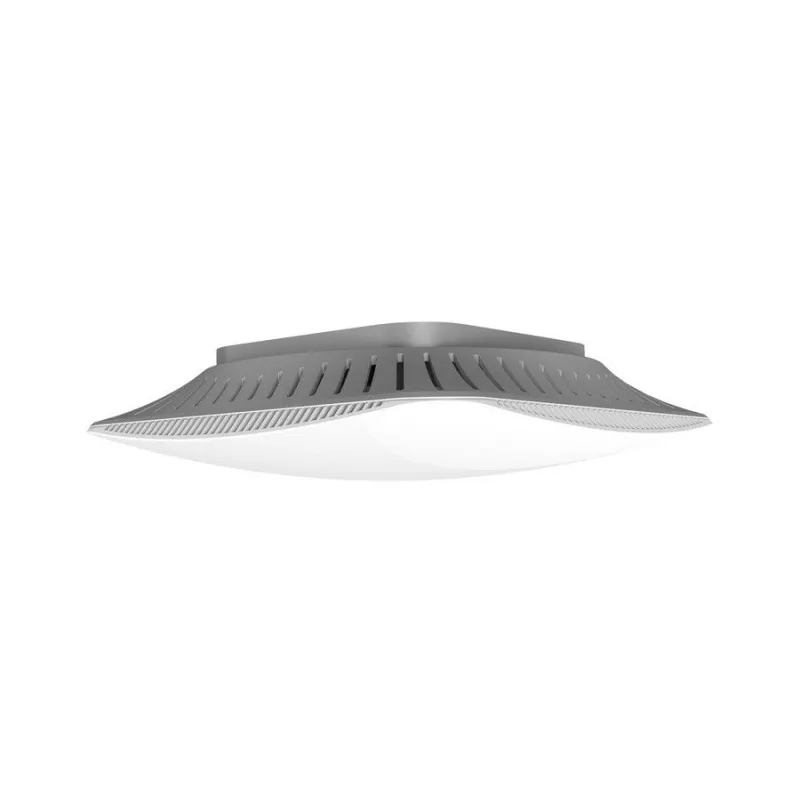

IP-COM W300AP Wireless Access Point 2.4 N 300Mbps รองรับ Access Control, POE

AP Type

Fit/Fat AP

Centralized Management

Access Controller CW500/CW1000

Interface

1*FE LAN

Antenna

2*PCB antennas

Button

1*Reset

Power Method

802.3af PoE

EIRP

<20dBm

LED Indicator

SYS

Software Features

Compliant Standard

IEEE 802.11n/g/b

Frequency Range

2.4GHz-2.483GHz

Maximum Wireless Speed

300Mbps

Wireless Basic Setting

4 SSID
Channel 1-13
Hide SSID
Enable/Disable Wireless Radio
Wireless Client isolation
Transmit Power adjustable
QVLAN

Maximum Concurrent Client

15

Receiver sensitivity

b mode:1M -89dBm@8% 11M -87dBm@8% PER;
g mode:54M -74dBm@8% PER;
n mode:72.2M -72dBm@8% PER; 150M -70dBm@8% PER

Modulation

MIMO-OFDM/OFDM/DSSS

LAN Setting

Dynamic IP

VPN Pass-Through

PPTP?L2TP

Others

Package Content

Wireless N300 Ceiling Access Point W300AP 1*Mounting Bracket
4*Screws
4*Plastic Bolt

อุปกรณ์ใช้กับ POE มาตรฐาน IEEE802.3af จะไม่มี Adapter ในชุดอุปกรณ์ครับ

Operating Temperature

-10?~45?

Storage Temperature

-30?~70?

Operating Humidity

10%~90% non-condensing

Storage Humidity

10%~90% non-condensing

Certification

FCC/CE/RoHS

รับประกัน

สินค้ารับประกัน 2 ปี
