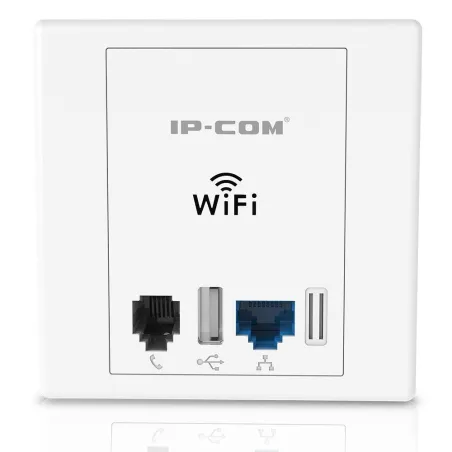

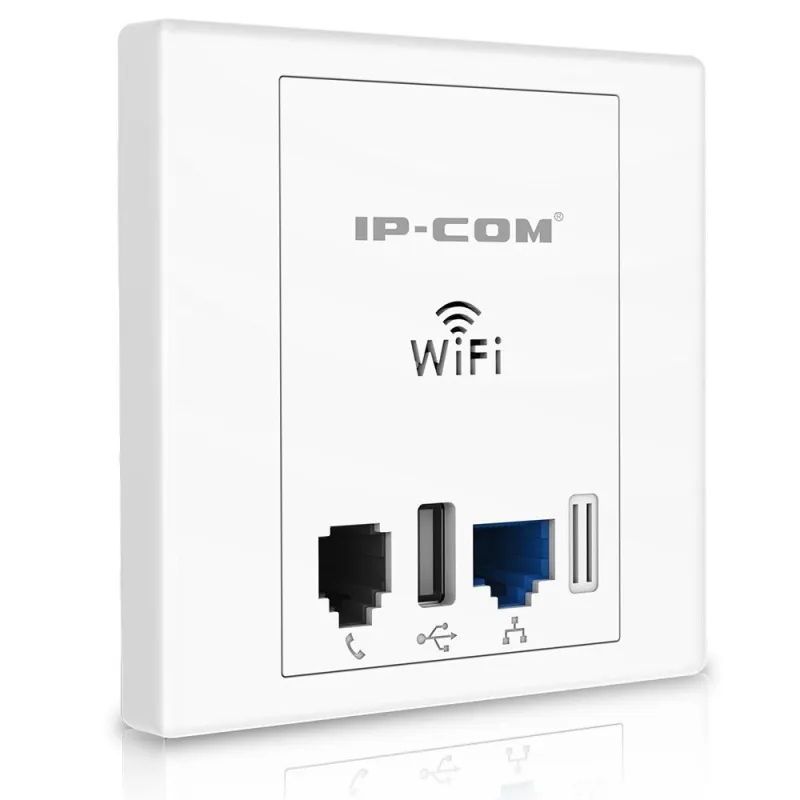

IP-COM W30AP Wall Plate Access Point 2.4 ความเร็ว 300Mbps, Lan 2 Port ,1 Port USB รองรับ POE

Dimension

86*86*35mm

Weight

104.6g(173.6g include the package)

AP Type

Fat AP

Interface

2 * LAN ports 10/100Mbps
1 * RJ11 Telephone port
1 * USBv2.0 (Ipad not recommended)

Antenna

เสาแบบ Omni รอบทิศทาง x 2 ต้น omni-directional antennas

Button

1 * Reset

Power Method

802.3af PoE

Maximum Power Consumption

9W

LED Indicator

WiFi

Software Feature

Compliant Standard

IEEE 802.11n/g/b

Frequency Range

2.4GHz-2.483GHz

Maximum Wireless Speed

ความเร็วสูงสุด 300Mbps

EIRP

< 20 dBm

Wireless Basic Setting

Multiple SSID
Enable/Disable Wireless Radio
Wireless Client isolation
Wireless Access Control
Wireless Client list
SSID-to-VLAN Tagging

Wireless Security Setting

64/128 WEP
WPA-PSK
WPA2-PSK
WPA&WPA2-PSK
WPA
WPA2

Working Mode

AP,WDS,Universal Repeater

Receiver Sensitivity

b mode:1M -92dBm@8% 11M -87dBm@8% PER;
g mode:54M -72dBm@8% PER;
n mode:72.2M -68dBm@8% PER; 150M -68dBm@8% PER

Modulation

OFDM : BPSK@6/9Mbps?QPSK@12/18Mbps?16-QAM@24Mbps?64-QAM@48/54Mbps
DSSS : DBPSK@1Mbps?DQPSK@[email protected]/11Mbps
MIMO-OFDM : MCS 0-23

LAN Setting

Static IP
Dynamic IP

DHCP Server

DHCP Server
Clients list

VPN Pass-Through

PPTP
L2TP

Management Tool

SNMP(v1&v2c)
Reboot
System Log
Firmware update
Time&Date Setting
Backup/Restore Configuration
Username Managerment
Diagnostic Tool(ping)

Others

Package Content

300M Wall Jack Fat Access Point W30AP
Quick Installation Guide
Ethernet cable
Two Screws
Resource CD

Operating Temperature

-10?~45?

Storage Temperature

-30?~70?

Operating Humidity

10%~90% non-condensing

Storage Humidity

10%~90% non-condensing

Default Setting

IP Address: 192.168.0.254
Login Username:admin
Login Password:admin
