| Product Overview |

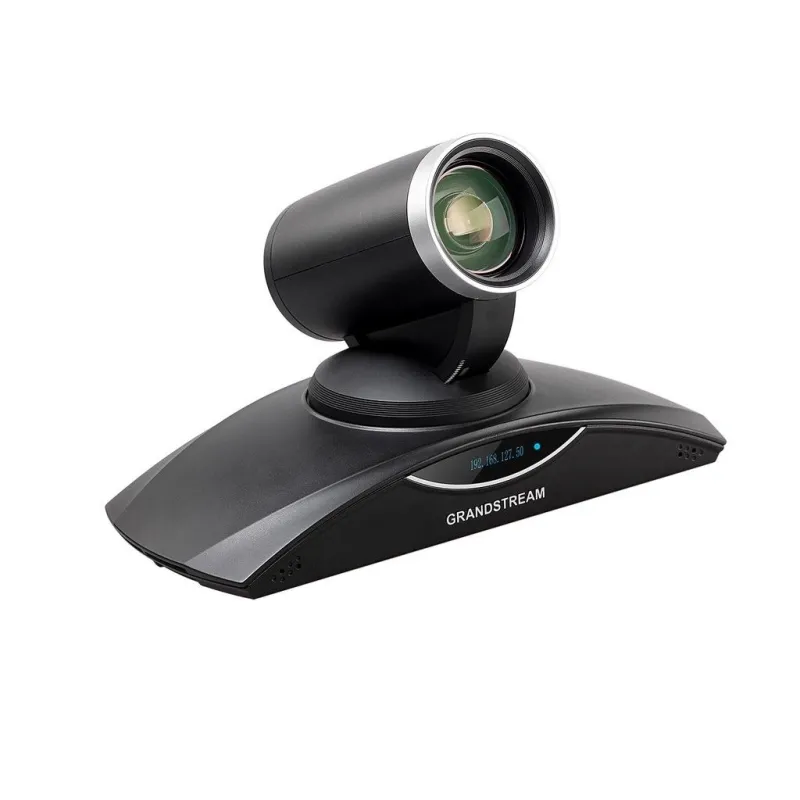

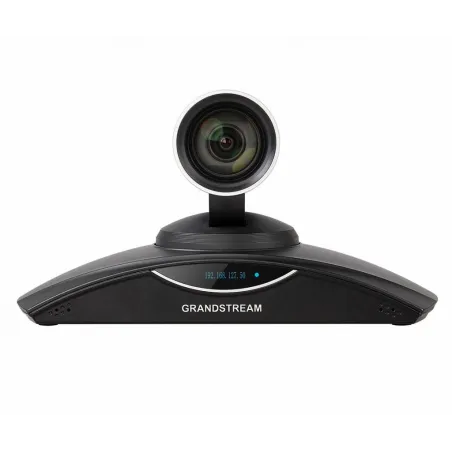

GrandStream GVC-3200 SIP/Android Video Conference 1080p Full-HD 9-Way video conferences, รองรับ Protocol SIPและ H.323, 3 Monitor outputs HDMI, PTZ camera 12x Zoom
|
| |
- 1080p Full-HD video, up to 9-way video conferences, support for 3 monitor outputs through 3 HDMI outputs
- 9-way hybrid-protocol conferencing with no external MCUs/servers or extra software licenses
- PTZ camera with 12x zoom
- Can be installed in three simple steps
- Plug and Play connection to Grandstream's IPVideoTalk video conferencing service
- Supports most SIP and H.323 video conferencing platforms
|
|
Protocols/Standards
|
SIP RFC3261, BFCP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, TCP/IP/UDP, IPv6, FEC, FECC, H.323, Q.931, H.224, H.281, H.225.0, H.239, H.241, H.245, H.460.18 and H.460.19
|
|
Camera
|
1/3” 2 Megapixel CMOS 1920Hx1080V@30fps
|
|
Lens
|
12x optical zoom, +/-23? tilt, +/- 90? pan, 70?(W)*- 6.3? (T) field of view
|
|
Network Interface
|
1? RJ45 10/ 100/ 1000 Mbps port
|
|
Wi-Fi
|
Yes, integrated dual-band 802.11 a/b/g/n (2.4GHz & 5GHz)
|
|
Bluetooth
|
Yes, integrated. Bluetooth 4.0 + EDR
|
|
Video Outputs
|
3x HDMI up to 1080p with CEC
|
|
Video Input
|
1x VGA/1x HDMI with resolution up to 1080p
|
|
Microphone/Speaker
|
External MIC/Speaker, built-in MIC, cascadable external MIC/speaker (pending)
|
|
Remote Control
|
Bluetooth remote control with multi-touch touchpad
|
|
Auxiliary Ports
|
1x USB 2.0, SD, external speaker port, reset pin
|
|
Graphic Display
|
OLED with 128x32 resolution
|
|
Voice Codecs
|
G.711?/a, G.722 (wide-band), G.726-32, iLBC (pending), Opus, G.722.1, G.722.1c (pending), in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO)
|
|
Video Codecs
|
H.264 BP/MP/HP, video resolution up to 1080p, frame rate up to 30 fps, bitrate up to 4Mbps
|
|
People Video Resolution
|
1080p from 512 Kbps, 720p from 384 Kbps, 4SIF/4CIF from 128 Kbps, SIF/CIF/QSIF/QCIF/SQSIF/SQCIF from 64 Kbps
|
|
Content Video Resolution
|
Input: VGA, SVGA, XGA, WXGA, WXGA, SXGA, 1440?900, 720p, 1600?1200, 1080p (HDMI), up to 60fps; Encoding: 1280?720, 1920?1080
|
|
Output Resolution
|
720p, 1080p
|
|
Embedded MCU
|
Up to 4-way 1080p conference, 5-way 720p conference, 9-way VGA conference
|
|
Dual-Stream
|
BFCP, people video (up to 1080p@30fps) + content video (up to 1080p@15fps, 720p@30fps)
|
|
Audio Features
|
AEC, ANS, AGC, PLC, CNG/VAD
|
|
Video Features
|
FEC, dynamic display layout, picture-in-picture, picture-outside-picture, digital caption (pending)
|
|
Platform Bridging
|
Bridge SIP calls with any Android VoIP apps such as Skype, Skype for Business, Google Hangouts and more
|
|
Telephony Features
|
Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 9-way audio/video conference, downloadable XML phone book, LDAP, call waiting, call history, flexible dial plan, personalized music ring tones, server redundancy & fail-over
|
|
Sample Applications
|
Skype, Google Hangouts, Skype for Business, Web browser, Facebook, Twitter, YouTube, Google calendar, mobile phone data import/export via Bluetooth, etc. API/SDK available for advanced custom application development
|
|
Application Deployment
|
Allows Android 4.4.2 compliant applications to be deployed in the device with provisioning control
|
|
QoS
|
Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
|
|
Security
|
User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, 128/256-bit SRTP, HTTPS, 802.1x media access control
|
|
Multi-Language
|
English, German, Italian, French, Spanish, Portuguese, Russian, Turkish, Polish, Chinese, Korean, Japanese, and more
|
|
Upgrade/Provisioning
|
Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using TR-069 or AES encrypted XML configuration file
|
|
Power & Green Energy Efficiency
|
Universal power adapter included: Input 100-240VAC 50-60Hz; Output 12VDC/5A (60W)
|
|
Package Content
|
GVC3200 video conference system, GAC2500 Android Enterprise Conference Phone, remote control, 2 AAA batteries, universal power supply, network cable (1.5 meters), USB extension cable (5 meters), mounting kit, 4 HDMI cables (one 1.5 meter cable, two 3 meter cables and one 5 meter cable), lens cover, lens cleaning cloth, quick installation guide, GPL license
|
|
Dimensions and Weight
|
Net weight: 5.06 Kgs; Gross weight per box: 7.8 Kgs; Unit Dimensions (L x W x H): 11.9’’ x 4.89’’ x 7.15’’
|
|
Temperature and Humidity
|
Operation: 0?C to 40?C, Storage: -10?C to 60?C, Humidity: 10% to 90% Non-condensing
|
|
Compliance
|
FCC: Part 15 (CFR 47) Class B; UL 60950 (power adapter), Part 15C, Part 15E.407, Part 2.1091
CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, EN62479, RoHS, EN301893, EN62311
RCM: AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 4268
|
| รับประกัน |
1 ปี
|
