Product Specification |

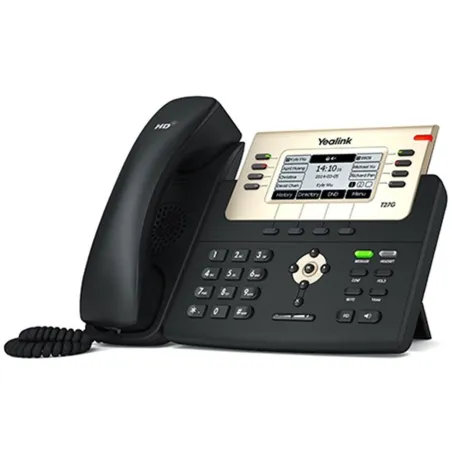

Overview | Yealink SIP-T27G โทรศัพท์แบบ IP (IP-Phone) จอ LCD รองรับ 6 คู่สาย, 6 SIP Account, Port Gigabit รองรับการ Setup ผ่าน Webbrowser และ Telephone Key Pad (IVR) รองรับ POE |
Audio Features | HD voice: HD handset, HD speaker
Wideband codec: Opus*, G.722
Narrowband codec: Opus*, G.711(A/?), G.723.1,G.729, G.729AB, G.726, iLBC
DTMF: In-band, Out-of-band(RFC 2833) and SIP
INFO
Full-duplex hands-free speakerphone with AEC
VAD, CNG, AEC, PLC, AJB, AGC |
Phone Features | 6 VoIP accounts
One-touch speed dial, redial
Call forward, call waiting
Call transfer, call hold
Call return, group listening
Mute, auto answer, DND
3-way conference call
Direct IP call without SIP proxy
Ring tone selection/import/delete
Hotline, emergency call
Set date time manually or automatically
Dial plan, XML Browser, Action URL/URI
Integrated Screenshots
RTCP-XR
USB port (2.0 compliant)
Bluetooth earphone through BT40,
Wi-Fi through WF40,
USB call recording through USB flash drive
> Enhanced DSS key |
Directory | Loal phonebook up to 1000 entries
Black list
XML/LDAP remote phonebook
Intelligent search method
Phonebook search/import/export
Call history: dialed/received/missed/forwarded |
IP-PBX Features | Busy Lamp Field (BLF)
Bridged Line Apperance (BLA)
Anonymous call, anonymous call rejection
Hot-desking, voice mail
Flexible seating
Call park, call pickup
Executive and Assistant
Centralized call recording
Visual voice mail |
Display and Indicator | 3.66" 240x120-pixel graphical LCD with backlight
LED for call and message waiting indication
One-color (green) illuminated LEDs for
line status information
Intuitive user interface with icons and soft keys
National language selection
Caller ID with name, number |
Feature keys | 8 line keys with LED
8 line keys can be programmed up to 21
various features (3-page view)
8 features keys: message, headset, conference, mute,
hold, transfer, redial, hands-free speakerphone
4 context-sensitive “soft” keys
6 navigation keys
2 volume control keys
Illuminated message key
Illuminated headset key |
Interface | Dual-port Gigabit Ethernet
Power over Ethernet (IEEE 802.3af), Class 3
1 x USB port (2.0 compliant)
1 x RJ9 (4P4C) handset port
1 x RJ9 (4P4C) headset port
1 x RJ12 (6P6C) EHS port
1 x RJ12 (6P6C) EXT port:
Supports up to 6 Expansion Modules |
Other Physical Features | Stand with 2 adjustable angles
Wall mountable
External Yealink AC adapter (optional):
AC 100~240V input and DC 5V/1.2A output
Power consumption (PSU): 1.4-3.0W
Power consumption (PoE): 1.7-7.0W
Dimension (W*D*H*T):
265mm x 210mm x 170.5mm x 53.5mm
Operating humidity: 10-95%
Operating temperature: -10~50?C (+14~122?F) |
Management | Configuration: browser/phone/auto-provision
Auto provision via FTP/TFTP/HTTP/HTTPS
for mass deploy
Auto-provision with PnP
Zero-sp-touch, TR-069
Reset to factory, reboot
Package tracing export, system log |
Package Features | Package content:
- Yealink SIP-T27G IP phone
- Handset with handset cord
- Ethernet Cable (1.5m CAT5E UTP Cable)
- Stand
- Quick Start Guide
- Power Adapter (Optional)
- Wall Mount Bracket (Optional) |
Network and Security | SIP v1 (RFC2543), v2 (RFC3261)
Call server redundancy supported
NAT traversal: STUN mode
Proxy mode and peer-to-peer SIP link mode
IP assignment: static/DHCP
HTTP/HTTPS web server
Time and date synchronization using SNTP
UDP/TCP/DNS-SRV(RFC 3263)
QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS
DSCP
SRTP for voice
Transport Layer Security (TLS)
HTTPS certificate manager
AES encryption for configuration file
Digest authentication using MD5/MD5-sess
OpenVPN, IEEE802.1X
IPv6
LLDP/CDP/DHCP VLAN |
สินค้ารับประกัน 1 ปี |
|
