Linksys LGS308P L2-Managed Gigabit POE Switch 8 Port รองรับ VLANs, Link Aggregation ควบคุมผ่าน WebView
  • Linksys LGS308P L2-Managed Gigabit POE Switch 8 Port รองรับ VLANs, Link Aggregation ควบคุมผ่าน WebView
  • Linksys LGS308P L2-Managed Gigabit POE Switch 8 Port รองรับ VLANs, Link Aggregation ควบคุมผ่าน WebView
  • Linksys LGS308P L2-Managed Gigabit POE Switch 8 Port รองรับ VLANs, Link Aggregation ควบคุมผ่าน WebView

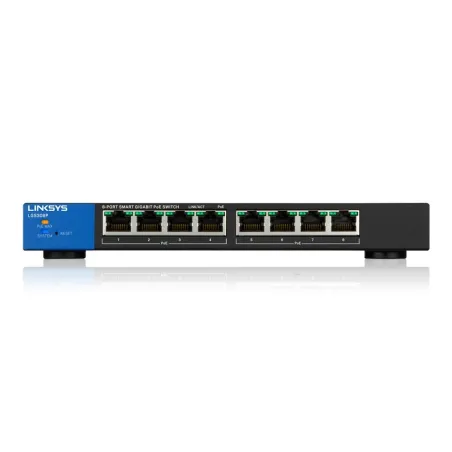

Linksys LGS308P L2-Managed Gigabit POE Switch 8 Port รองรับ VLANs, Link Aggregation ควบคุมผ่าน WebView

Linksys LGS308P L2-Managed Gigabit POE Switch ขนาด 8 Port พร้อม POE 8 Port af/at 72W, รองรับ VLANs, Link Aggregation เคสเหล็ก ควบคุมผ่าน Web

฿9,890.00
ยังไม่ได้รวมภาษี
จำนวน
Out-of-Stock

รายละเอียด

Linksys LGS308P Datasheet
Linksys Smart Gigabit Switch User Guide

การตั้งค่า VLAN Shared Resources เพื่อแชร์อินเตอร์เน็ตให้แต่ละ VLAN

Product Specification

Overview

อุปกรณ์ Linksys LGS308P L2-Managed POE Switch ขนาด 8 Port ความเร็วระดับ Gigabit 10/100/1000 Mbps เคสเหล็ก ทนทาน ระบายความร้อนได้ดี องรับการจ่ายไฟผ่านสาย Lan Power Over Ethernet (POE) ได้ 8 Port มาตรฐาน 802.3af, 802.3at จ่ายไฟรวมสูงสุด 72W



ใช้สำหรับเชื่อมต่อกับระบบเครือข่ายภายในบ้านหรือสำนักงานขนาดเล็กที่ต้องการความเร็วสูงสุด



รองรับการ Config ผ่าน Webbrowser

LAN Port

8 พอร์ท 10/100/1000 Mbps แบบ RJ-45 รองรับการทำงาน Auto MDI/MDI-X, Half/Full Duplex Mode

POE Port

8 Port กำลังไฟรวมสูงสุด 72W

CPU Memory DRAM

128MB

Mac Address

8K

Jumbo Frame (FE, GE)

9K

Forwarding rate

11.9Mpps (64-byte packets)

Switch Capacity

16 Gbps

Number of VLANs

128 active VLANs (4,096 range)

VLAN

Port-based and 802.1q tag-based VLANs
Management VLAN
Guest VLAN support
Dynamic VLAN assignment via Radius server with 802.1x client authentication

HOL Blocking

Head of line (HOL) blocking prevention

Web User Interface

Built-in Web UI for easy browser-based confi guration (HTTP/HTTPS)

SNMP

Version 1 and 2c

Firmware Upgrade

Web browser upgrade (HTTP) and TFTP

Port Mirroring

Traffi c on multiple ports (up to 4 ports) can be mirrored to another port for analysis with a network analyzer

RMON

Embedded remote monitoring (RMON) software agent support for enhanced traffi c management, monitoring, and analysis

Other Management

Telnet (menu-driven), DHCP client, system log, confi guration unload and backup via HTTP or TFTP, PING, dual images, SNTP

Security

802.1x Radius authentication, DHCP snooping, IP-MAC binding, port security supports
limited dynamic lock and locked MAC address, management access control

Link Aggregation

IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group

Storm Control

Broadcast, fl ooding, and multicast

Spanning Tree

IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree

IGMP Snooping

IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits

bandwidth-intensive video traffi c to only the requestors; supports 256 multicast groups

QoS Priority Levels

4 hardware queues

Scheduling

Priority queuing and weighted round robin (WRR)

Class of Service

Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based

Auto Voice VLAN

Voice traffi c is automatically assigned by OUI to a voice-specifi c VLAN and treated with appropriate levels

Standards

802.3 10Base-T Ethernet, 802.3u 100Base-T Fast Ethernet, 802.3ab 1000Base-T Gigabit Ethernet, 802.3z Gigabit Ethernet,
802.3x Flow Control, 802.3ad LACP, 802.1d STP, 802.1q/p VLAN, 802.1x Port Access Authentication, 802.3az Energy Effi cient Ethernet

W x H x D

210 x 104 x 25 mm

Height

0.562 kg

Power

220V: 10.17W

ประกัน

Limited Lifetime


รายละเอียดสินค้า
0

ข้อมูลสินค้า

ประเภท Switch
L2 Managed
ความเร็ว Port Lan
1Gbps (Gigabit)
จำนวน Port Lan
8 Port
