Product Specification |

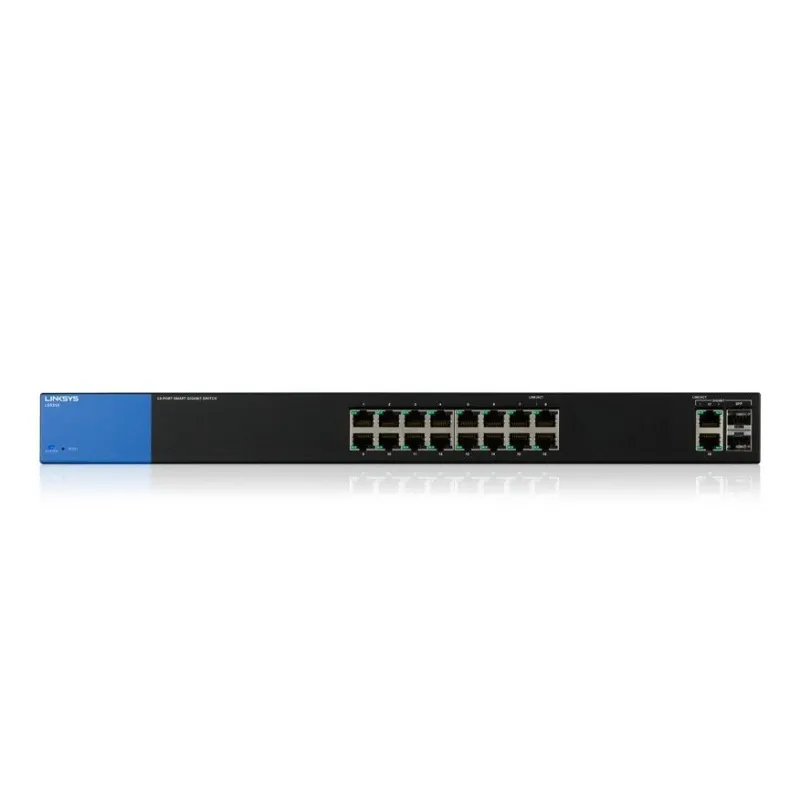

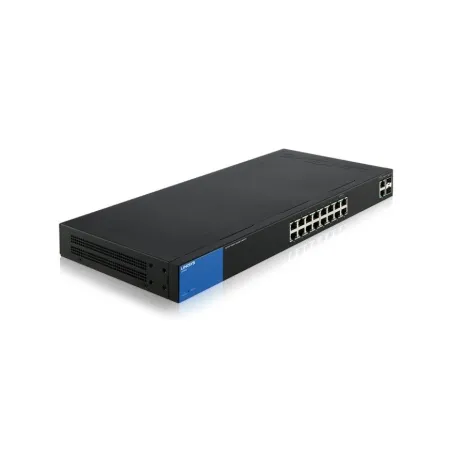

Overview | อุปกรณ์ Linksys LGS318 L2-Managed Switch ขนาด 16 Port ความเร็วระดับ Gigabit 10/100/1000 Mbps รองรับการทำ VLAN, Port Monitor เคสเหล็ก ทนทาน ระบายความร้อนได้ดี |
| | ใช้สำหรับเชื่อมต่อกับระบบเครือข่ายภายในบ้านหรือสำนักงานขนาดเล็กที่ต้องการความเร็วสูงสุด |
| | รองรับการ Config ผ่าน Webbrowser |
LAN Port | 16 พอร์ท 10/100/1000 Mbps แบบ RJ-45 รองรับการทำงาน Auto MDI/MDI-X, Half/Full Duplex Mode |
CPU Memory DRAM | 128MB |
Mac Address | 8K |
Jumbo Frame (FE, GE) | 9K |
Forwarding rate | 26.79 Mpps |
Switch Capacity | 36 Gbps |
Number of VLANs | 128 active VLANs (4,096 range) |
VLAN | Port-based and 802.1q tag-based VLANs
Management VLAN
Guest VLAN support
Dynamic VLAN assignment via Radius server with 802.1x client authentication |
HOL Blocking | Head of line (HOL) blocking prevention |
Web User Interface | Built-in Web UI for easy browser-based confi guration (HTTP/HTTPS) |
SNMP | Version 1 and 2c |
Firmware Upgrade | Web browser upgrade (HTTP) and TFTP |
Port Mirroring | Traffi c on multiple ports (up to 4 ports) can be mirrored to another port for analysis with a network analyzer |
RMON | Embedded remote monitoring (RMON) software agent support for enhanced traffi c management, monitoring, and analysis |
Other Management | Telnet (menu-driven), DHCP client, system log, confi guration unload and backup via HTTP or TFTP, PING, dual images, SNTP |
Security | 802.1x Radius authentication, DHCP snooping, IP-MAC binding, port security supports
limited dynamic lock and locked MAC address, management access control |
Link Aggregation | IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group |
Storm Control | Broadcast, fl ooding, and multicast |
Spanning Tree | IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree |
IGMP Snooping | IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffi c to only the requestors; supports 256 multicast groups |
QoS Priority Levels | 4 hardware queues |
Scheduling | Priority queuing and weighted round robin (WRR) |
Class of Service | Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based |
Auto Voice VLAN | Voice traffi c is automatically assigned by OUI to a voice-specifi c VLAN and treated with appropriate levels |
Standards | 802.3 10Base-T Ethernet, 802.3u 100Base-T Fast Ethernet, 802.3ab 1000Base-T Gigabit Ethernet, 802.3z Gigabit Ethernet,
802.3x Flow Control, 802.3ad LACP, 802.1d STP, 802.1q/p VLAN, 802.1x Port Access Authentication, 802.3az Energy Effi cient Ethernet |
W x H x D | 440 x 200 x 44 mm |
Height | 2.378 kg |
Power | 220V: 13.66W |
ประกัน | Limited Lifetime |
| |
