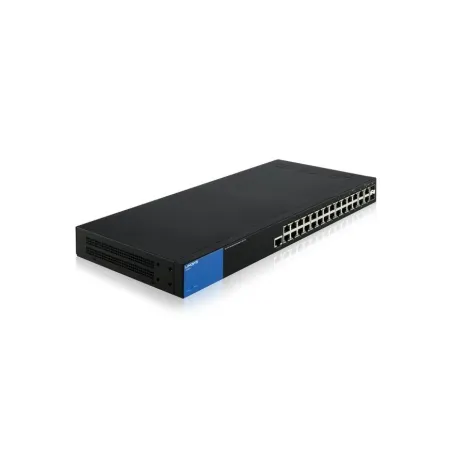

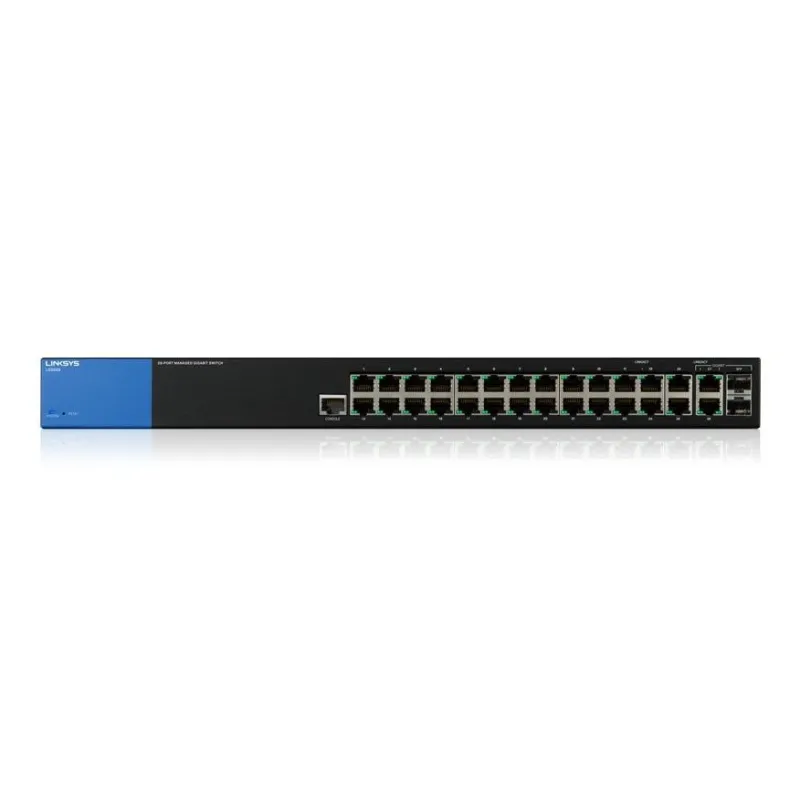

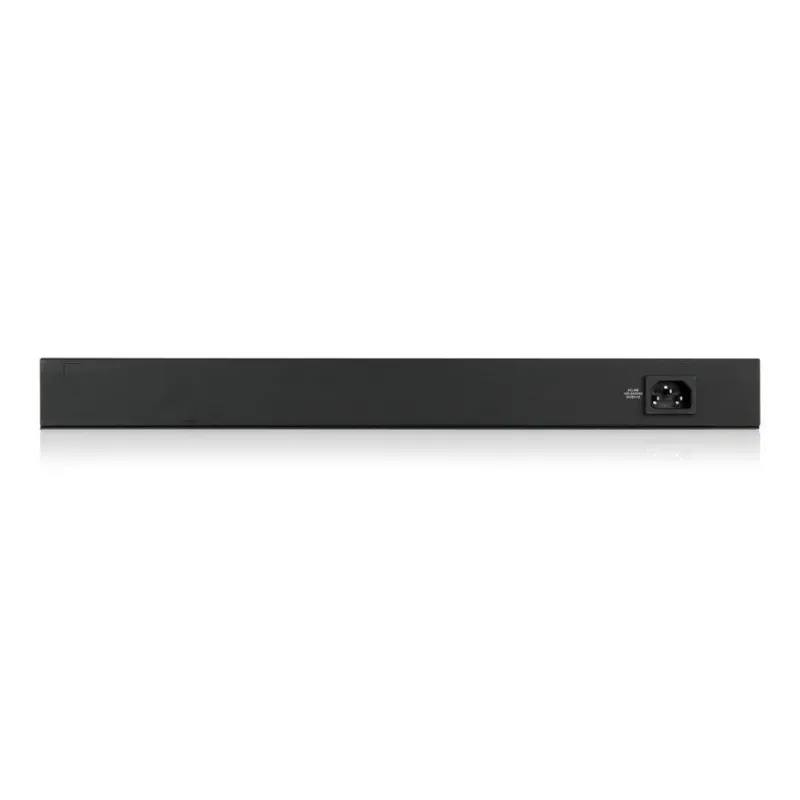

    Linksys LGS528 L3-Managed Gigabit Switch 26 Port, 2 Port SFP รองรับ Static Routing, VLANs ควบคุมผ่าน Browser

    Linksys

    Linksys LGS528 L3-Managed Gigabit Switch ขนาด 26 Port ความเร็ว 10/100/100Mbps, 2 Port SFP รองรับ Static Routing,  VLANs เคสเหล็กทนทาน ควบคุมผ่าน Web สำหรับเครือข่ายความเร็วสูง

    ฿11,990.00
    ยังไม่ได้รวมภาษี
    จำนวน
    5 รายการ


    สอบถามข้อมูลสินค้าเพิ่มเติม

    LINE ID: @sysnet  โทร: 02 102 4284

    Click ต้องการใบเสนอราคา

    close

    แบบฟอร์มขอใบเสนอราคา



    Rating:
    (0)
    รายละเอียด

    Linksys LGS528 Datasheet
    Linksys Smart Gigabit Switch User Guide

    การตั้งค่า VLAN Shared Resources เพื่อแชร์อินเตอร์เน็ตให้แต่ละ VLAN

    Product Specification

    Overview

    อุปกรณ์ Linksys LGS528 L3-Managed Switch แบบ Rack ขนาด 26 Port ความเร็วระดับ Gigabit 10/100/1000 Mbps เคสเหล็ก ทนทาน ระบายความร้อนได้ดี



    ใช้สำหรับเชื่อมต่อกับระบบเครือข่ายภายในบ้านหรือสำนักงานขนาดเล็กที่ต้องการความเร็วสูงสุด



    รองรับการ Config ผ่าน Webbrowser

    LAN Port

    26 พอร์ท 10/100/1000 Mbps แบบ RJ-45 รองรับการทำงาน Auto MDI/MDI-X, Half/Full Duplex Mode
    2 พอร์ท Combo SFP เลือกใช้งานระหว่าง RJ-45 หรือ SFP

    CPU Memory DRAM

    128MB

    Mac Address

    16 K

    Jumbo Frame (FE, GE)

    9 K

    Forwarding rate

    41.67 Mpps

    Switch Capacity

    56 Gbps

    Standards

    IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE802.1Q/p, IEEE802.1X

    Spanning Tree

    IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree

    Link Aggregation

    IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group

    VLAN

    Port-based and IEEE 802.1Q tag-based VLANs

    Number of VLANs

    1,024 active VLANs (4,096 range)

    Layer 3 Static Routing

    Line rate routing for IPv4 packets with up to 64 static routes

    Auto Voice VLAN

    VLAN voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels

    IGMP Snooping

    IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requesters; supports 256 multicast groups

    Head-of-Line (HOL) Blocking

    Head-of-line (HOL) blocking prevention

    Port Mirroring

    Traffic on multiple ports can be mirrored to another port for analysis with a network analyzer

    Security

    IEEE 802.1X radius authentication, DHCP snooping, IP-MAC-Port binding, IP source guard, ARP inspection, STP root guard, STP BPDU guard, DHCP relay, port security supports limited dynamic lock and locked MAC address, management access control

    Storm Control

    Broadcast, unknown-unicast, and multicast

    QoS – Priority Levels

    4 hardware queues

    QoS – Class of Service

    Port-based, IEEE 802.1p priority-based, IPv4/v6 IP DSCP-based

    QoS – Scheduling

    Priority queuing and weighted round robin (WRR)

    ACL

    Support up to 512 rules for enhanced security and/or advanced QoS policy: allow, deny, or rate limit based on Layer1 to 4 protocol fields at packet header level with MAC ACL and IP ACL

    RMON

    Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis

    Management Interface

    Built-in Web UI for easy browser-based configuration (HTTP/HTTPS)

    Other Management

    Built-in Web UI for easy browser-based configuration (HTTP/HTTPS)

    SNMP

    SNMP version 1 and 2c

    W x H x D

    440 x 200 x 44.45 mm

    Height

    2.43 kg

    Power

    220V: 19.71W

    ประกัน

    Limited Lifetime


    รายละเอียดสินค้า
    0
    5 รายการ

    ข้อมูลสินค้า

    Switches Layer
    L2/L3 Managed
    จำนวน Port Lan
    24 Port
    ความเร็ว Port Lan
    1Gbps (Gigabit)
    มี Uplink Port Lan Gigabit
    Yes
    จำนวน SFP Port 1Gigabit
    1 Port
