TP-Link ES224G Product Specification |

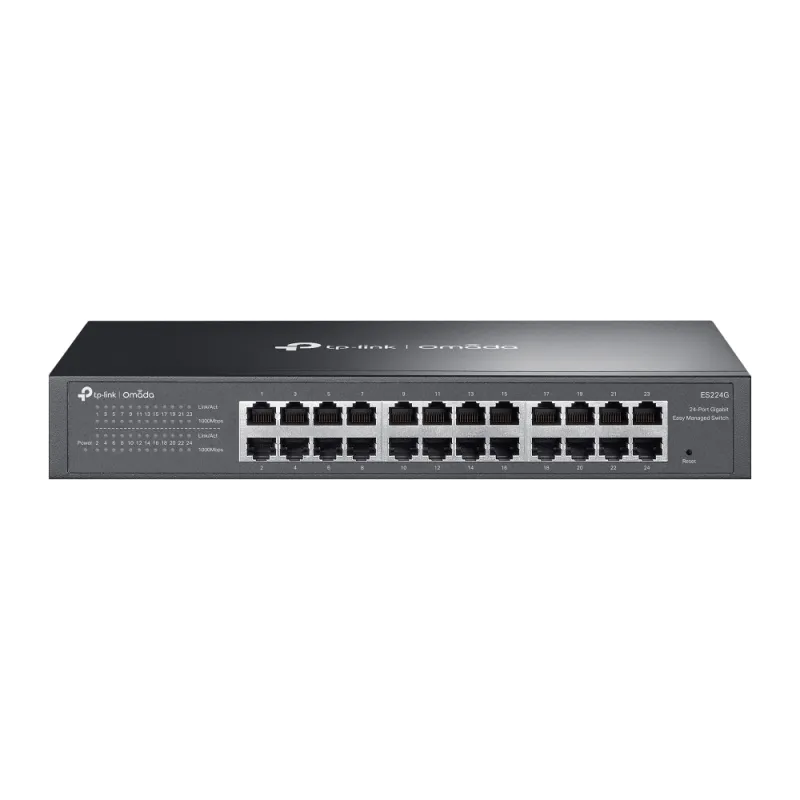

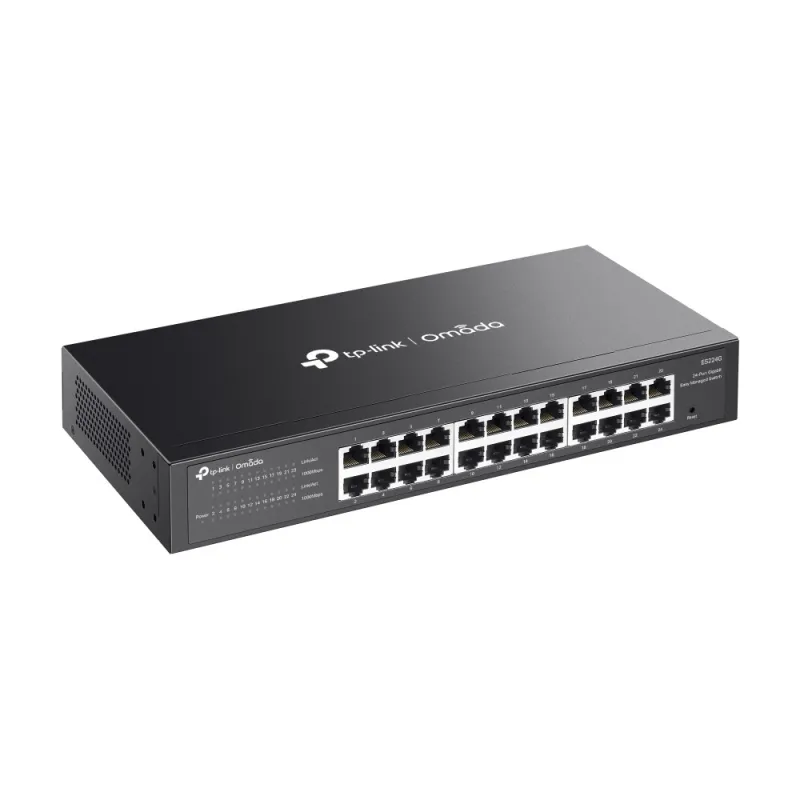

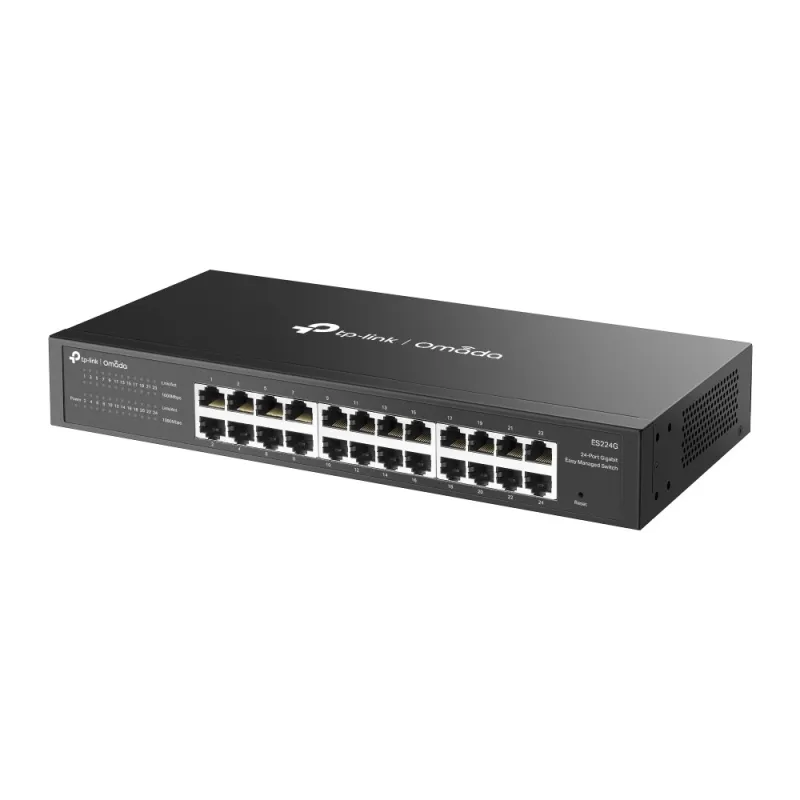

Overview | TP-LINK ES224G Omada 24-Port Gigabit Easy Managed Switch รองรับ VLAN 802.1q, Port Mirroring, Loop Prevention, IGMP Snooping สามารถ Manage ผ่าน Omada Cloud Controller ได้ |
HARDWARE FEATURES |
| Interface | • 24× 10/100/1000 Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | • Desktop
• Rack Mount |
| Physical Security Lock | √ |

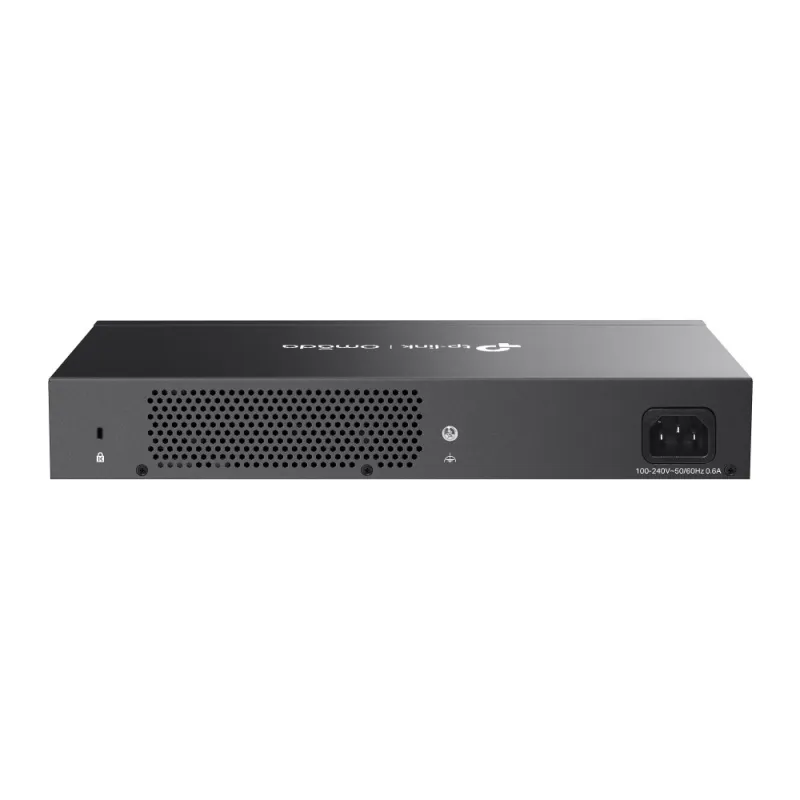

| Power Supply | 100-240V~50/60 Hz |
| Dimensions ( W x D x H ) | 11.6 × 5.5 × 1.7 in (294× 140 × 44 mm) |
| Surge Protection | ±6kV |
PERFORMANCE |
| Switching Capacity | 48 Gbps |
| Packet Forwarding Rate | 35.7 Mpps |
| MAC Address Table | 8 K |
| Packet Buffer Memory | 4 Mbits |
| Jumbo Frame | 15 KB |
SOFTWARE FEATURES |
| Quality of Service | • Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control△ |
| L2 Features | • Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave |
| VLAN | • MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID |
| Transmission Method | Store-And-Forward |
Management Features |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration† |
OTHERS |
| Certification | FCC, CE, RoHS |
| Package Content | • ES224G
• Power Cord
• Rubber Feet
• Mounting Brackets
• Screws
• Installation Guide |
| Environment | • Operating Temperature: -5℃~45℃ (23℉~123℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing |
รับประกัน | Limited lifetime |
