    Mercusys MS105GP 5-Port Gigabit POE Switch, 4-Port PoE+ 65W

    Mercusys
    Mercusys MS105GP 5-Port Gigabit POE Switch 4-Port PoE รองรับ Extend Mode, Port Isolate,PoE Auto Recovery จ่ายไฟ POE มาตรฐาน 802.3af/at 4 Port สูงสุด 65W
    ฿0.00
    ยังไม่ได้รวมภาษี
    จำนวน
    30 รายการ


    สอบถามข้อมูลสินค้าเพิ่มเติม

    LINE ID: @sysnet  โทร: 02 102 4284

    Click ต้องการใบเสนอราคา

    close

    แบบฟอร์มขอใบเสนอราคา



    Rating:
    (0)
    รายละเอียด

    Mercusys MS105GP

    Desktop POE Switch 5-Port Gigabit พร้อม 4-Port PoE+ 65W

    • 5 Ports: 5 Port Gigabit RJ45 ports with 4 PoE+ ports
    • Two Cables in One: With four PoE+ ports, transfers data and power on one single cable
    • High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
    • Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*

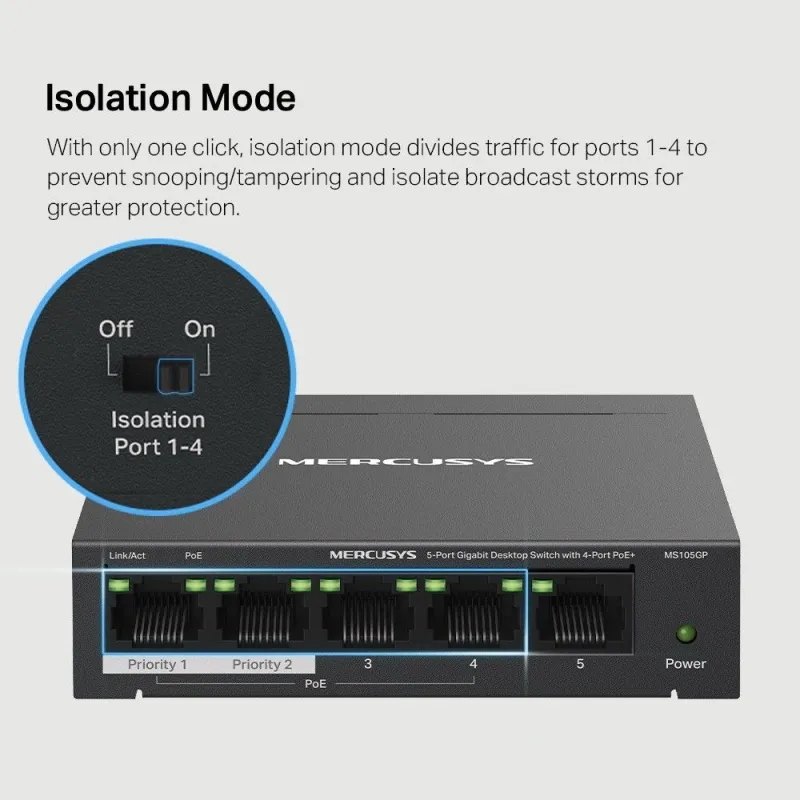

    • Isolation Mode: One click to divide traffic for specific ports for stability and security
    • Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
    • Durable Metal Casing: Allows for efficient heat dissipation and long network life

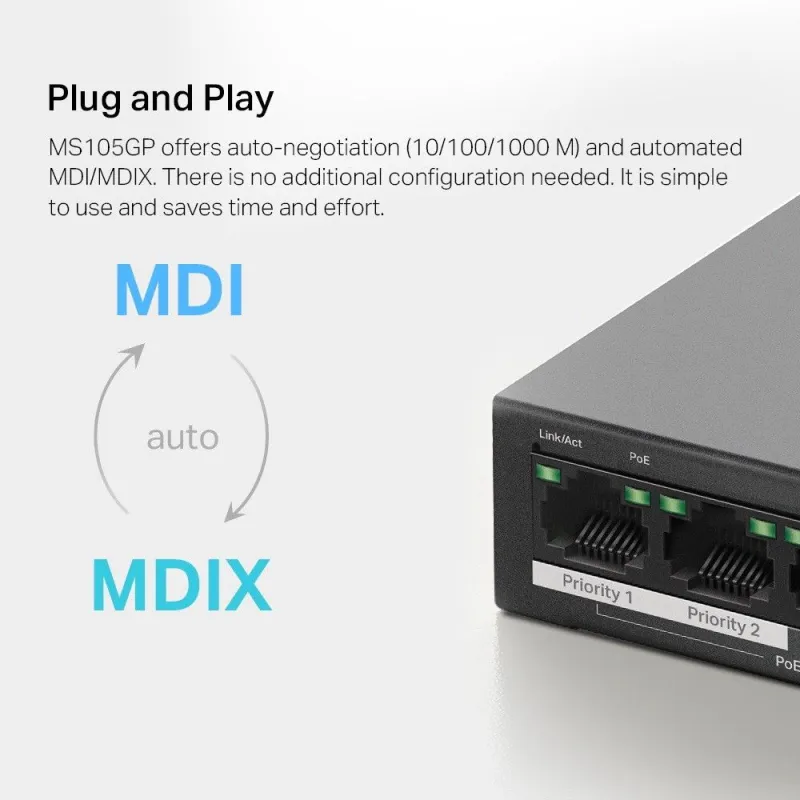

    • Plug and Play: Simple to use and saves time and effort
    • PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices



    Specification

    Mercusys MS105GP 5-Port Gigabit POE Switch 4-Port PoE รองรับ Extend Mode, Port Isolate,PoE Auto Recovery จ่ายไฟ POE มาตรฐาน 802.3af/at 4 Port สูงสุด 65W

    เหมาะสำหรับงานกล้อง CCTV หรือ งาน WIFI แบบ Home Use.

    Dimensions (W X D X H)

    99.8*98*25mm

    PoE Ports

    RJ45
    Standard: Compliant with 802.3 af/at Powered Devices
    PoE Ports: Port 1- Port 4
    PoE Power Budget: 65 W

    Interfaces

    5 x 10/100/1000 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

    External Power Supply

    External Power Adapter (Output: 53.5V/1.31A)

    Standards and Protocols

    IEEE 802.3x Flow Control

    Data Rates

    10/100/1000 Mbps at Half Duplex
    20/200/2000 Mbps at Full Duplex

    Jumbo Frame

    9 KB

    Mac Address Table

    2K

    Max Power Consumption

    3.13W (220 V / 50 Hz, no PD connected)
    75.15W (220 V / 50 Hz, with 65W PD connected)

    Max Heat Dissipation

    10.64 BTH/h (no PD connected)
    255.51 BTH/h (with 65W PD connected)

    Package Contents

    5 Port Gigabit Desktop POE Switch with 4-Port PoE+ (MS105GP)
    Power Adapter
    Quick Installation Guide

    Environment

    Operating Temperature: 0℃~40℃ (32℉~104℉)
    Storage Temperature: -40℃~70℃ (-40℉~158℉)
    Operating Humidity: 10%~90% RH non-condensing
    Storage Humidity: 5%~95% RH non-condensing

    รับประกัน

    3 ปี

    Murcusys MS105GP 5-Port Gigabit Desktop POE Switch with 4-Port PoE+ 65W

    Long-Range up to 250 m, Durable Metal Casing, 65W PoE Budget

    Mercusys MS105GP Gigabit POE Switch 5 PortMercusys MS105GP Gigabit POE Switch 5 Port

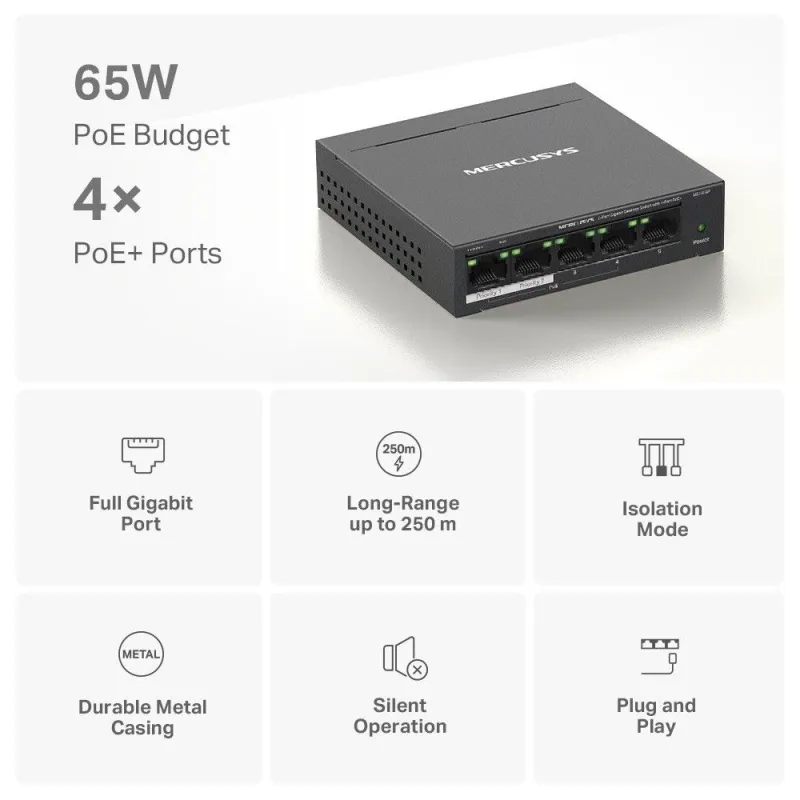

    4 PoE+ Ports (65 W Budget) for Network Deployment

    All five ports of the MS105GP are gigabit ports, with four PoE+ ports (1-4). Each PoE+ port supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices.
    The total 65 W PoE power budget* for the 4x PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones,PCs, video recorders, and more are all completely compatible with it.

    Mercusys MS105GP Gigabit POE Switch 5 Port

    Power over Ethernet: Two Cables in One

    Mercusys MS105GP Gigabit POE Switch 5 Port

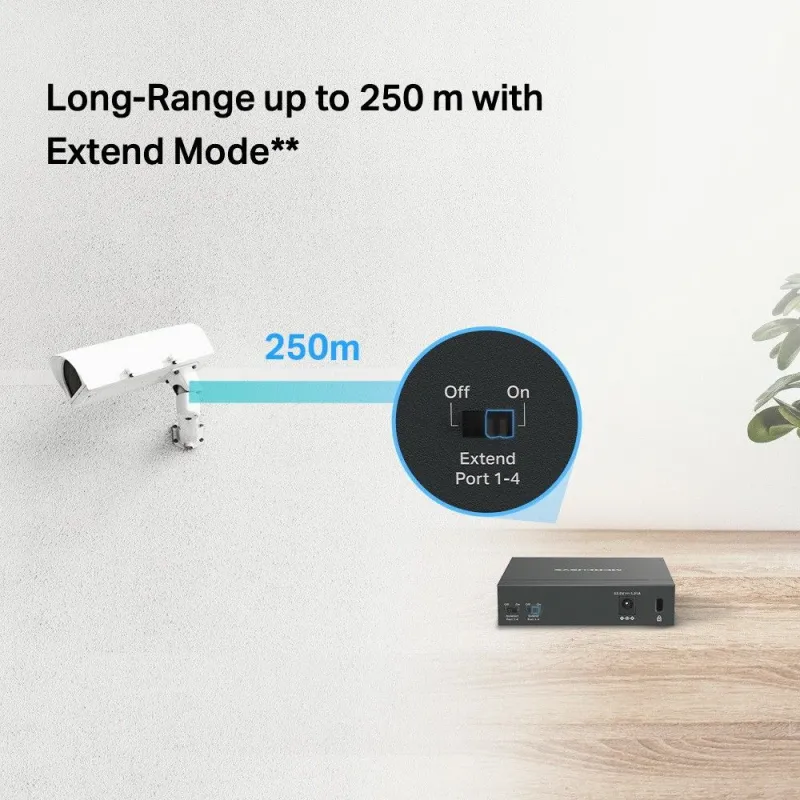

    Long-Range up to 250m With Extend Mode

    Extend Mode increases PoE transmission distance to 250 m. MS105GP has four long—range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

    Mercusys MS105GP Gigabit POE Switch 5 Port

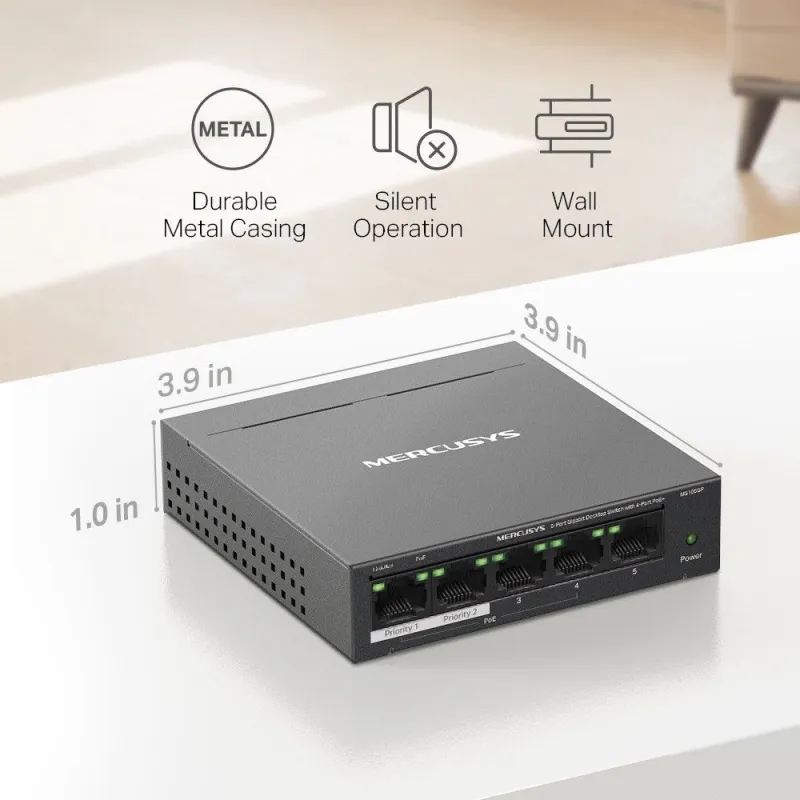

    Durable and Silent

    MS105GP durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.
    Mercusys MS105GP Gigabit POE Switch 5 Port

    รายละเอียดสินค้า
    30 รายการ

    ข้อมูลสินค้า

    Switches Layer
    UnManaged
    จำนวน Port Lan
    5 Port
    ความเร็ว Port Lan
    1Gbps (Gigabit)
    จำนวน Port POE
    4 Port
    มาตรฐานจ่ายไฟ POE
    POE+ 802.3at (30W)
    รองรับสาย Lan 250 เมตร
    Yes
