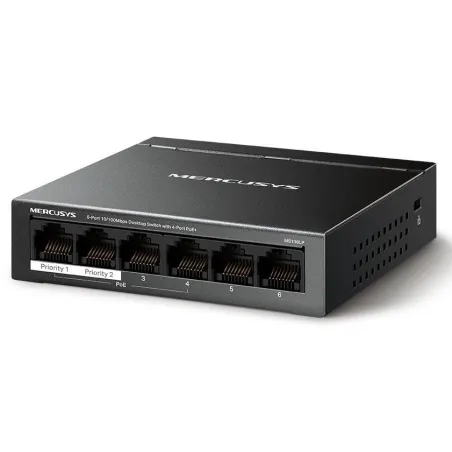

    MS106LP Mercusys 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ 40W

    Mercusys

    MS106LP

    Mercusys MS106LP 6-Port 10/100Mbps Desktop Switch 4-Port PoE รองรับ Extend Mode, Port Isolate,PoE Auto Recovery จ่ายไฟ POE มาตรฐาน 802.3af/at 4 Port สูงสุด 40W

    ฿690.00
    ยังไม่ได้รวมภาษี
    จำนวน
    20 รายการ


    สอบถามข้อมูลสินค้าเพิ่มเติม

    LINE ID: @sysnet  โทร: 02 102 4284

    Click ต้องการใบเสนอราคา

    close

    แบบฟอร์มขอใบเสนอราคา



    Rating:
    (0)
    รายละเอียด

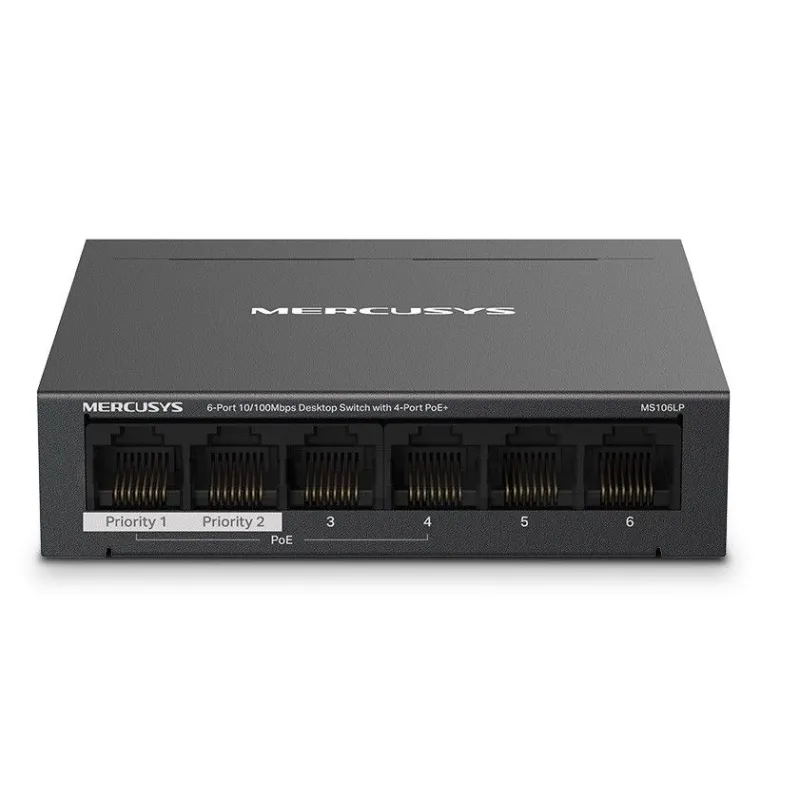

    Mercusys MS106LP

    Desktop Switch 6-Port 10/100Mbps with 4-Port PoE+

    • 6 Ports : พอร์ต 10/100 Mbps RJ45 6 ช่องพร้อมระบบ PoE+ 4 ช่อง
    • Two Cables in One : ด้วยพอร์ต PoE+ 4 ช่อง สามารถถ่ายโอนข้อมูลและจ่ายไฟได้ในสายเส้นเดียว
    • High Power PoE+ : ระบบ PoE รองรับการจ่ายไฟสูงถึง 30 วัตต์ ในแต่ละช่อง และรองรับการจ่ายไฟรวมทั้งหมด 40 วัตต์*
    • 2× Uplink Ports : MS106LP มาพร้อมพอร์ตอัพลิงก์ 2 ช่อง เมื่อเปิดใช้งานโหมด Isolation ช่องหนึ่งจะใช้งานสำหรับเชื่อมต่ออินเทอร์เน็ตและอีกช่องสำหรับเชื่อมต่อกับกล่อง NVR
    • Long-Range up to 250 m : ระยะการรับส่งข้อมูลและกำลังไฟผ่านระบบ PoE เพิ่มขึ้นถึง 250 เมตร เมื่อใช้งานโหมด Extend*

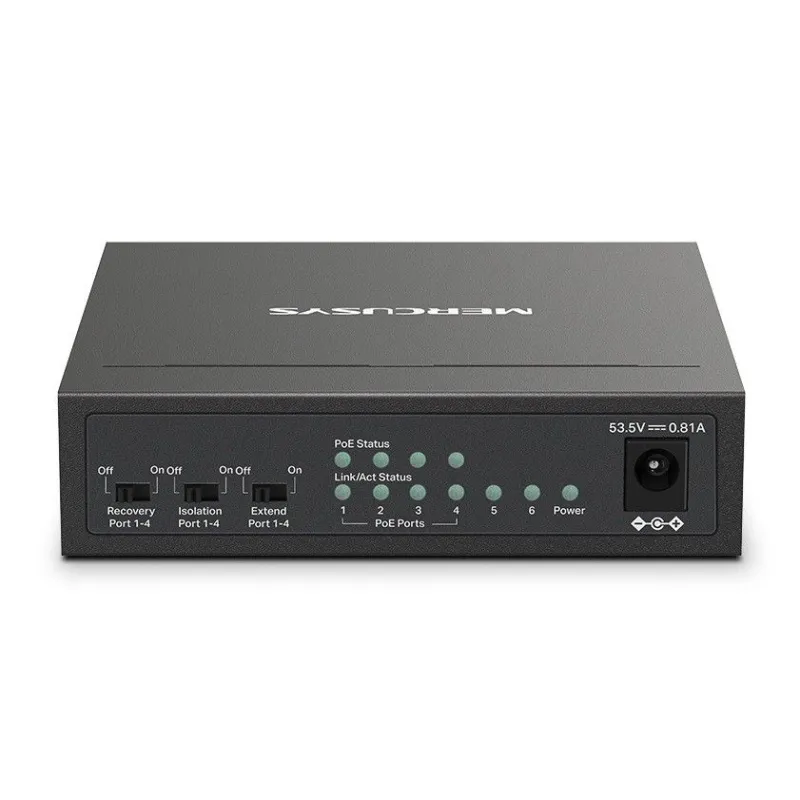

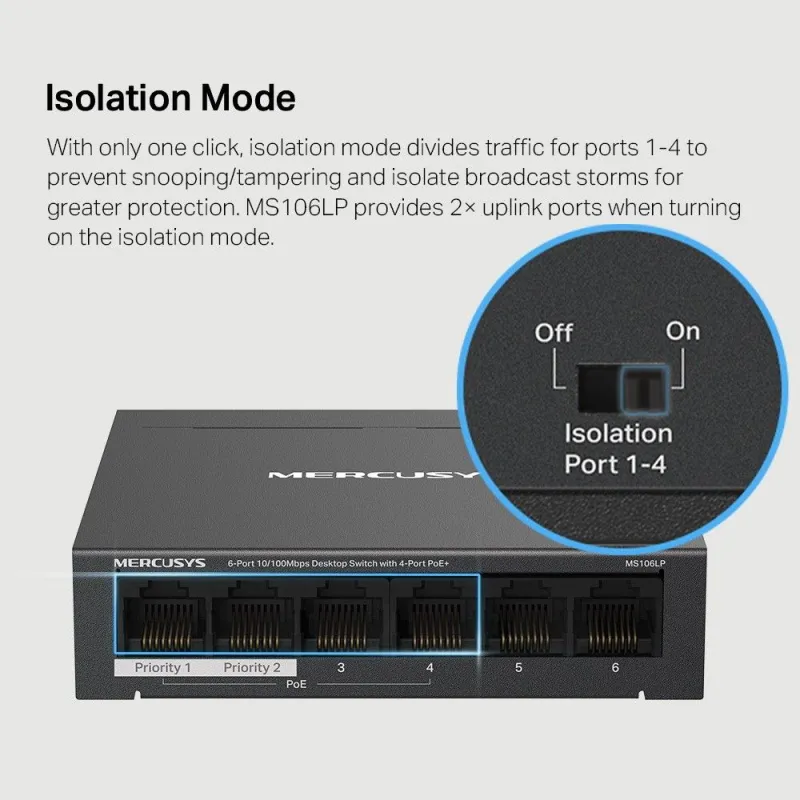

    • Isolation Mode : แบ่งทราฟฟิคสำหรับพอร์ตเฉพาะได้ง่ายด้วยการกดครั้งเดียว เพื่อการรับส่งข้อมูลที่เสถียรและปลอดภัย
    • Compliant with Powered Devices : สามารถจ่ายไฟให้อุปกรณ์มาตรฐาน IEEE 802.3af/at
    • Durable Metal Casing : ช่วยกระจายความร้อนได้อย่างมีประสิทธิภาพและยืดอายุการใช้งานอุปกรณ์เครือข่าย

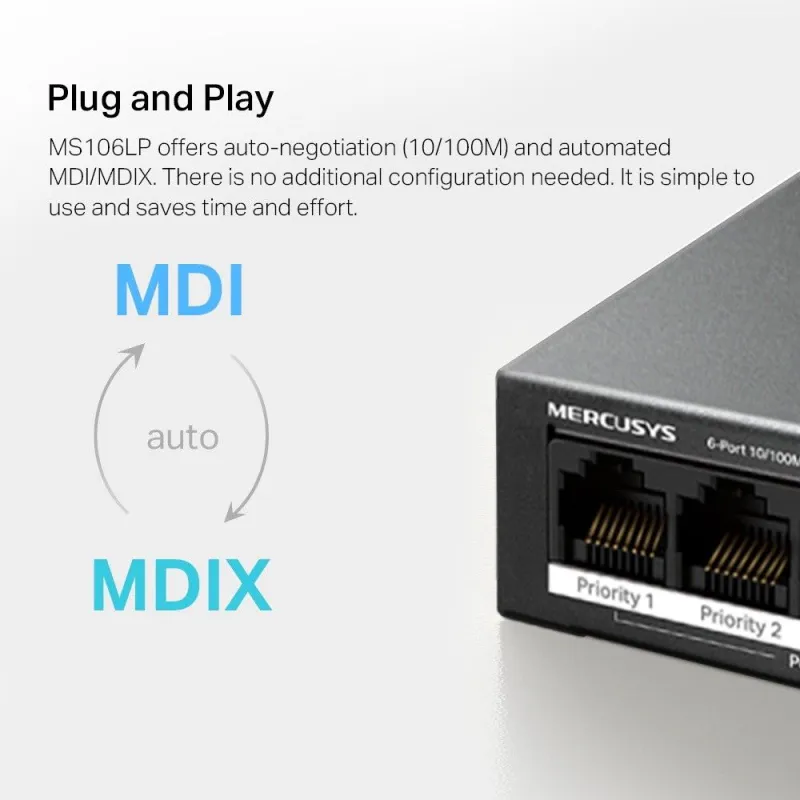

    • Plug and Play : ใช้างานง่าย ช่วยลดเวลาและความยุ่งยาก
    • PoE Auto Recovery : รีบูตการทำงานอัตโนมัติเมื่อกระแสไฟตกหรือเมื่ออุปกรณ์ระบบ PoE ที่เชื่อมต่อไม่ตอบสนอง



    Specification

    Mercusys MS106LP 6-Port 10/100Mbps Desktop Switch 4-Port PoE รองรับ Extend Mode 250m, Port Isolate,PoE Auto Recovery จ่ายไฟ POE มาตรฐาน 802.3af/at 4 Port สูงสุด 40W
    เหมาะสำหรับงานกล้อง CCTV ที่ต้องการใช้ Netowork POE Switch คุณภาพดี ราคาประหยัด

    Dimensions (W X D X H)

    99.8*98*25mm

    PoE Ports

    RJ45
    Standard: Compliant with 802.3 af/at Powered Devices
    PoE Ports: Port 1- Port 4
    PoE Power Budget: 40 W

    Interfaces

    6× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

    External Power Supply

    External Power Adapter (Output: 53.5V/0.81A)

    Standards and Protocols

    IEEE 802.3x Flow Control

    Data Rates

    10/100 Mbps at Half Duplex
    20/200 Mbps at Full Duplex

    Jumbo Frame

    2 KB

    Mac Address Table

    2K

    Max Power Consumption

    1.87W (220 V / 50 Hz, no PD connected)
    44.8W (220 V / 50 Hz, with 40W PD connected)

    Max Heat Dissipation

    6.34 BTH/h (no PD connected)
    152.32 BTH/h (with 40W PD connected)

    Package Contents

    6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ (MS106LP)
    Power Adapter
    Quick Installation Guide

    Environment

    Operating Temperature: 0℃~40℃ (32℉~104℉)
    Storage Temperature: -40℃~70℃ (-40℉~158℉)
    Operating Humidity: 10%~90% RH non-condensing
    Storage Humidity: 5%~95% RH non-condensing

    รับประกัน

    3 ปี

    Murcusys MS106LP6-Port 10/100Mbps Desktop Switch with 4-Port PoE+

    Long-Range up to 250 m, Durable Metal Casing, 40W PoE Budget

    Mercusys MS106LP POE Switch

    Mercusys MS106LP POE Switch

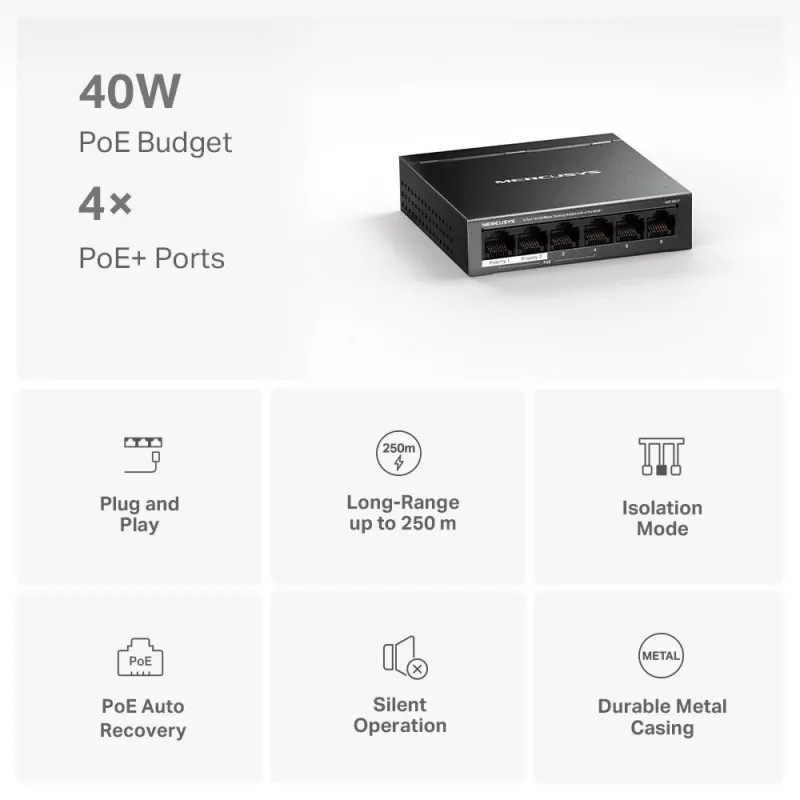

    4 PoE+ Ports 40W Budget for Network Deployment

    Ports 1-4 support PoE+, and each of them supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. M8106LP provides 2 ports without PoE+ for uplink devices, one of which is used to connect to the Internet and the other to connect to the NVR. The total 40 W PoE power budget" for the 4x PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.

    Mercusys MS106LP POE Switch

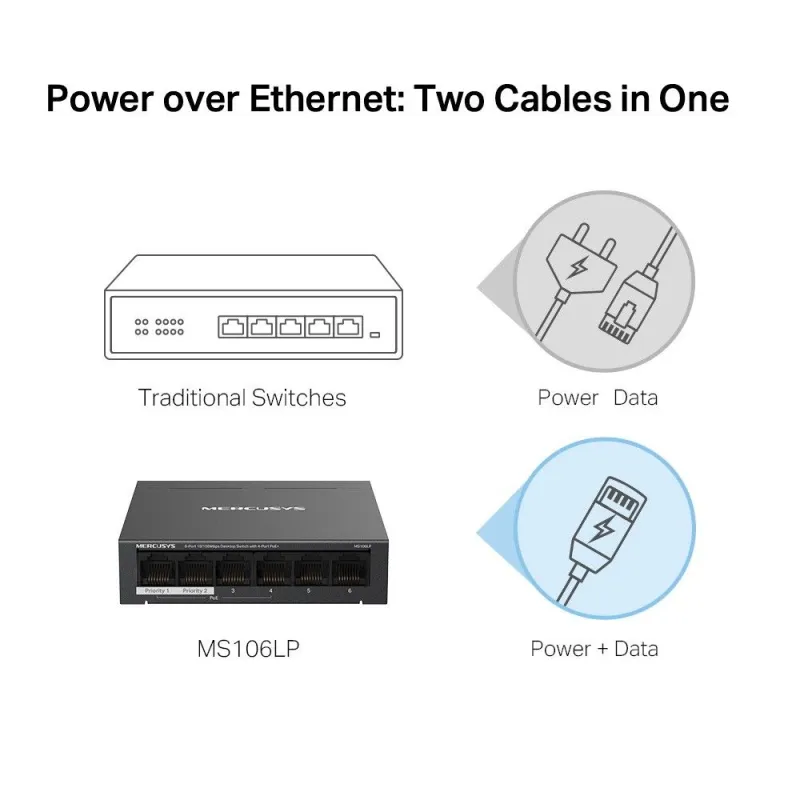

    Power over Ethernet: Two Cables in One

    Mercusys MS106LP POE Switch

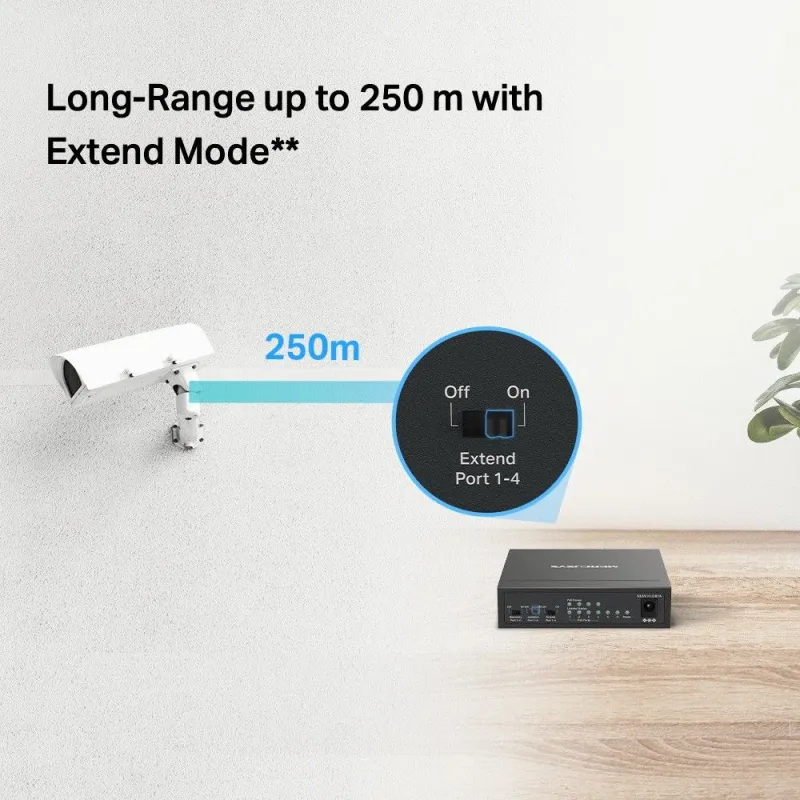

    Long-Range up to 250m With Extend Mode

    Extend Mode“ increases PoE transmission distance to 250 m. MS106LP has four long—range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

    Mercusys MS106LP POE SwitchMercusys MS106LP POE Switch

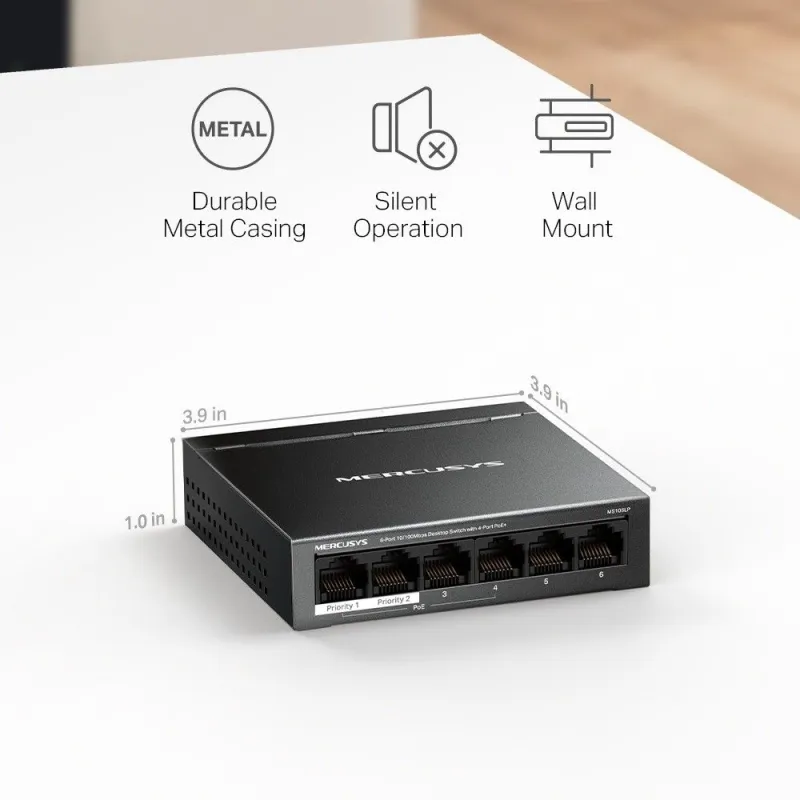

    Durable and Silent

    MS106LP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.
    Mercusys MS106LP POE Switch

    รายละเอียดสินค้า
    20 รายการ

    ข้อมูลสินค้า

    Switches Layer
    UnManaged
    จำนวน Port Lan
    5 Port
    ความเร็ว Port Lan
    100Mbps
    จำนวน Port จ่ายไฟ POE
    4 Port
    มาตรฐานจ่ายไฟ POE
    POE+ 802.3at (30W)
    รองรับสาย Lan 250 เมตร
    Yes
