MS110P Mercusys 10-Port 10/100Mbps Desktop Switch 8-Port PoE+ 65W

MS110P

Mercusys MS110P 10-Port 10/100Mbps Desktop Switch 8-Port PoE รองรับ Extend Mode, Port Isolate,PoE Auto Recovery จ่ายไฟ POE มาตรฐาน 802.3af/at 8 Port สูงสุด 65W

฿890.00
ยังไม่ได้รวมภาษี
จำนวน



สอบถามรายละเอียดสินค้าเพิ่มเติม LINE: @sysnet

รายละเอียด

MS110P(UN)_V1 Datasheet

MS110P(UN)_V1 Quick Installation Guide

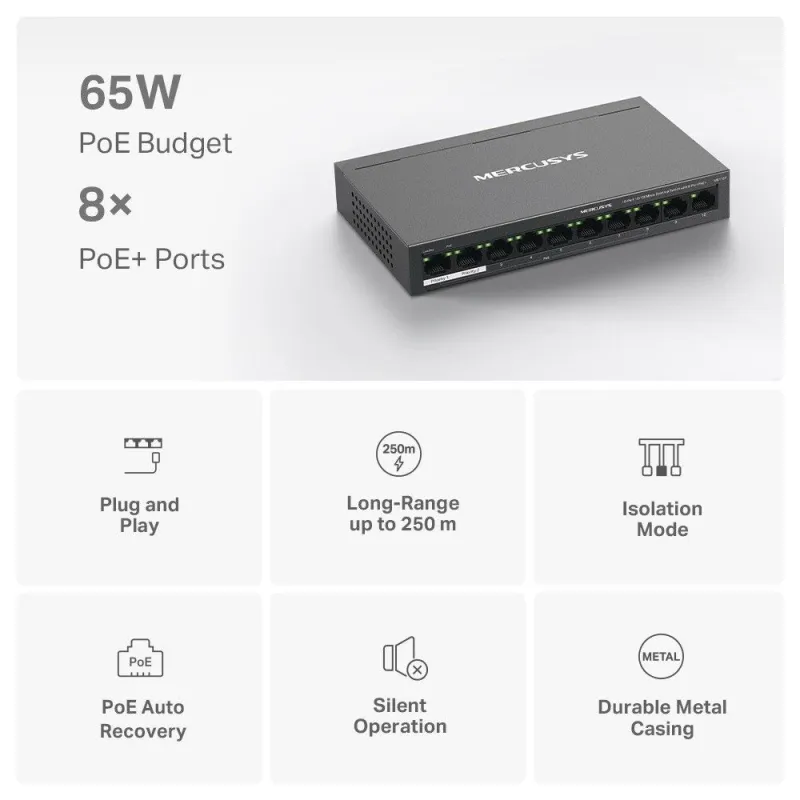

Mercusys MS110P

Desktop Switch 10-Port 10/100Mbps with 8-Port PoE+ 65W

  • 10 Ports : พอร์ต 10/100 Mbps RJ45 10 ช่องพร้อมระบบ PoE+ 8 ช่อง
  • Two Cables in One : ด้วยพอร์ต PoE+ 8 ช่อง สามารถถ่ายโอนข้อมูลและจ่ายไฟได้ในสายเส้นเดียว
  • High Power PoE+ : ระบบ PoE รองรับการจ่ายไฟสูงถึง 30 วัตต์ ในแต่ละช่อง และรองรับการจ่ายไฟรวมทั้งหมด 65 วัตต์*
  • 2× Uplink Ports : MS110P มาพร้อมพอร์ตอัพลิงก์ 2 ช่อง เมื่อเปิดใช้งานโหมด Isolation ช่องหนึ่งจะใช้งานสำหรับเชื่อมต่ออินเทอร์เน็ตและอีกช่องสำหรับเชื่อมต่อกับกล่อง NVR
  • Long-Range up to 250 m : ระยะการรับส่งข้อมูลและกำลังไฟผ่านระบบ PoE เพิ่มขึ้นถึง 250 เมตร เมื่อใช้งานโหมด Extend*
  • Isolation Mode : แบ่งทราฟฟิคสำหรับพอร์ตเฉพาะได้ง่ายด้วยการกดครั้งเดียว เพื่อการรับส่งข้อมูลที่เสถียรและปลอดภัย
  • Compliant with Powered Devices : สามารถจ่ายไฟให้อุปกรณ์มาตรฐาน IEEE 802.3af/at
  • Durable Metal Casing : ช่วยกระจายความร้อนได้อย่างมีประสิทธิภาพและยืดอายุการใช้งานอุปกรณ์เครือข่าย

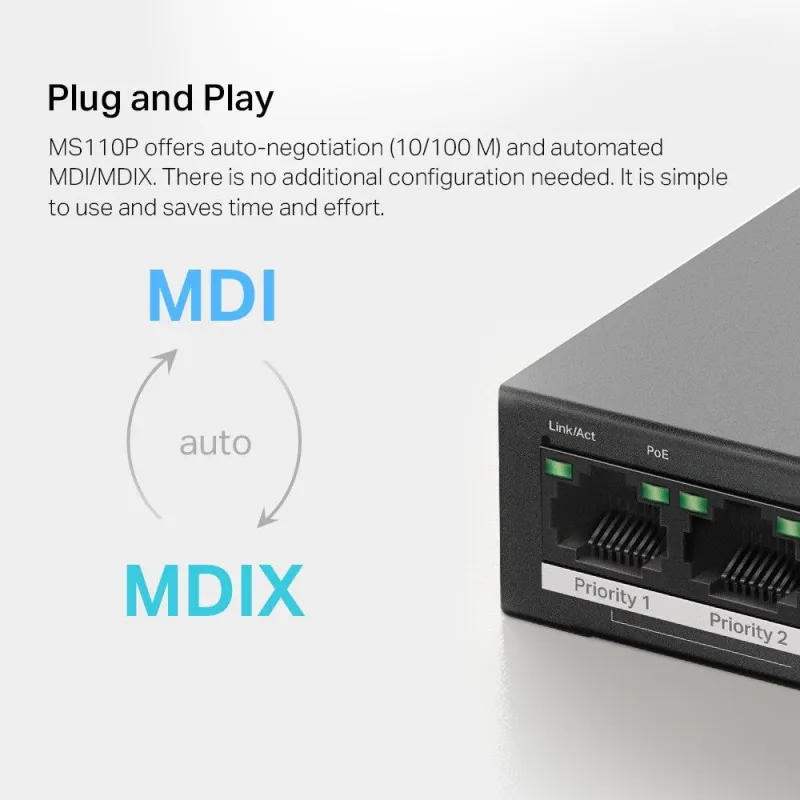

  • Plug and Play : ใช้างานง่าย ช่วยลดเวลาและความยุ่งยาก
  • PoE Auto Recovery : รีบูตการทำงานอัตโนมัติเมื่อกระแสไฟตกหรือเมื่ออุปกรณ์ระบบ PoE ที่เชื่อมต่อไม่ตอบสนอง



Specification

Mercusys MS110P 10-Port 10/100Mbps Desktop Switch 4-Port PoE รองรับ Extend Mode 250m, Port Isolate,PoE Auto Recovery จ่ายไฟ POE มาตรฐาน 802.3af/at 8 Port สูงสุด 65W

เหมาะสำหรับงานกล้อง CCTV ที่ต้องการใช้ Netowork POE Switch คุณภาพดี ราคาประหยัด

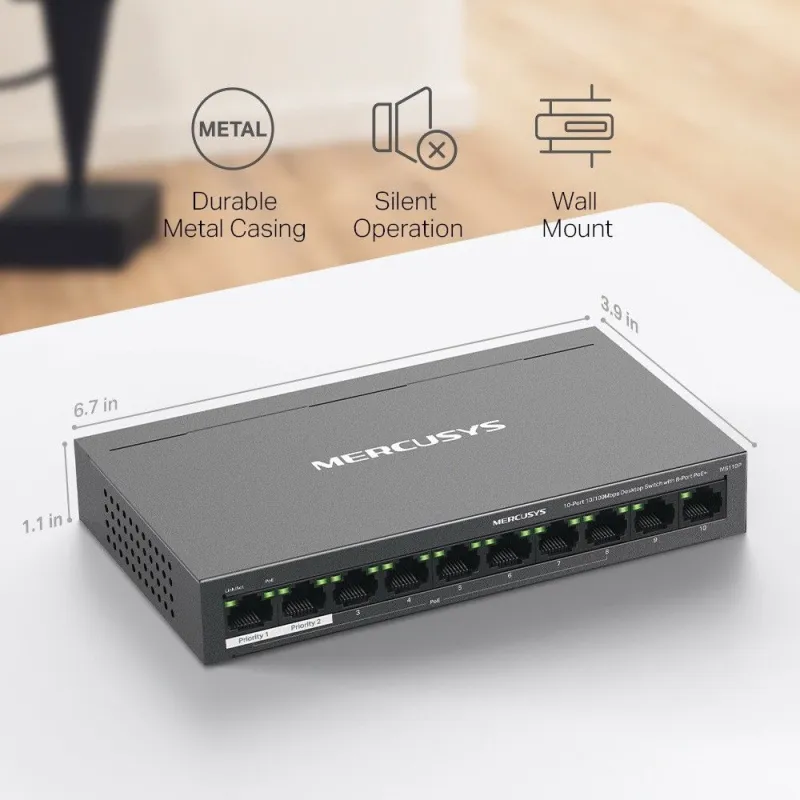

Dimensions (W X D X H)

171*98*27 mm

PoE Ports

RJ45
Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 8
PoE Power Budget: 65W

Interfaces

10 × 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

External Power Supply

External Power Adapter (Output: 53.5V/1.31A)

Standards and Protocols

IEEE 802.3x Flow Control

Data Rates

10/100 Mbps at Half Duplex
20/200 Mbps at Full Duplex

Jumbo Frame

2 KB

Mac Address Table

2K

Max Power Consumption



Max Heat Dissipation

10.064 BTH/h (no PD connected)
263.568 BTH/h (with 40W PD connected)

Package Contents

10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110P)
Power Adapter
Quick Installation Guide

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing

รับประกัน

3 ปี

Murcusys MS110P 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+

Long-Range up to 250 m, Durable Metal Casing, 65W PoE Budget

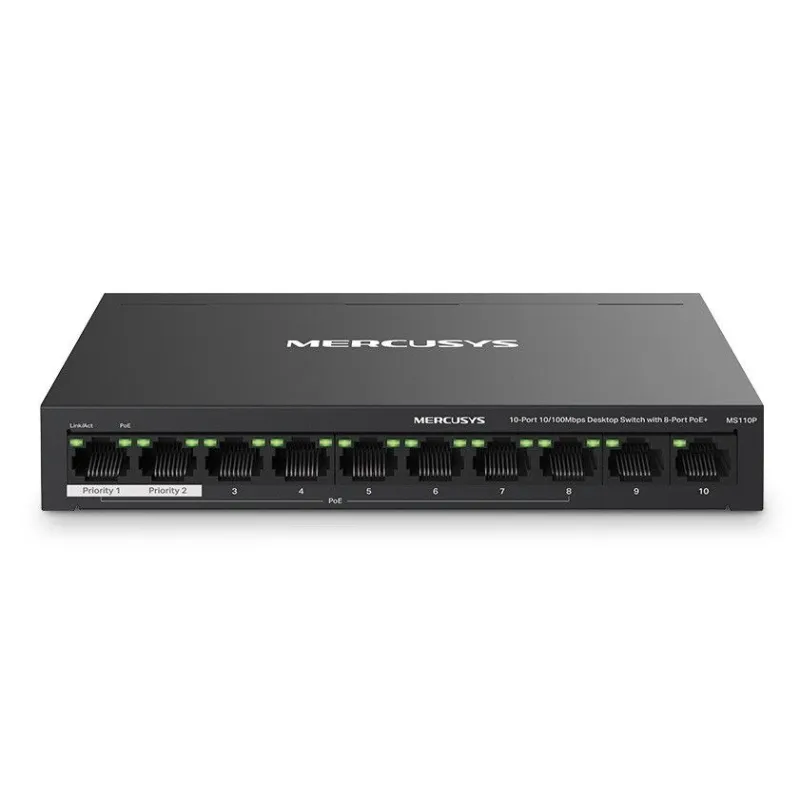

Mercusys MS110P POE Switch

Mercusys MS110P POE Switch

8 PoE+ Ports 65W Budget for Network Deployment

Ports 1-8 support PoE+, and each of them supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. M8110P provides 2 ports without PoE+ for uplink devices, one of which is used to connect to the Internet and the other to connect to the NVR. The total 65 W PoE power budget" for the 8x PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.

Mercusys MS110P POE Switch

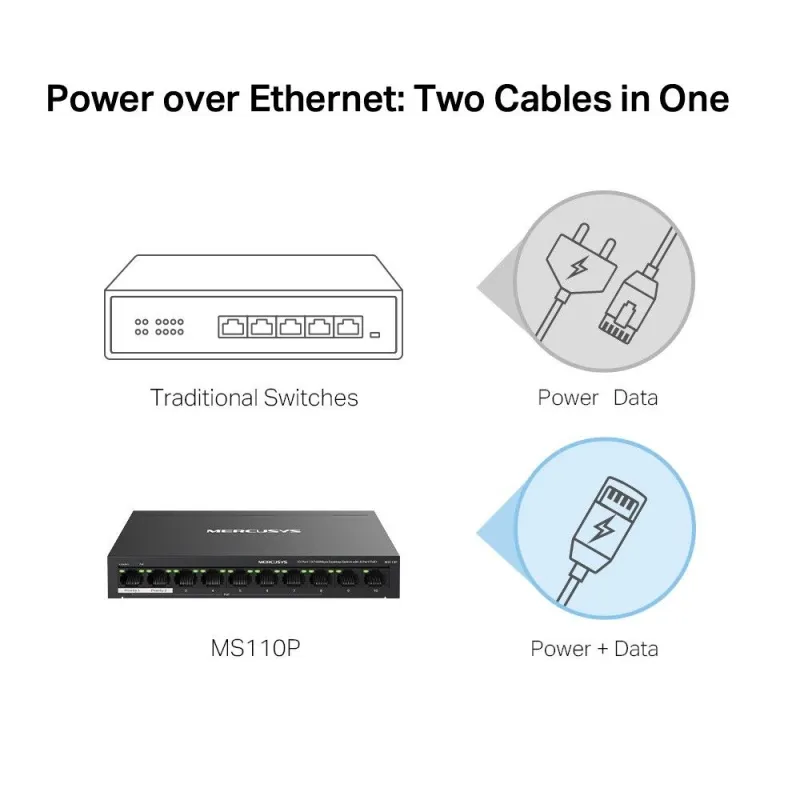

Power over Ethernet: Two Cables in One

Mercusys MS110P POE Switch

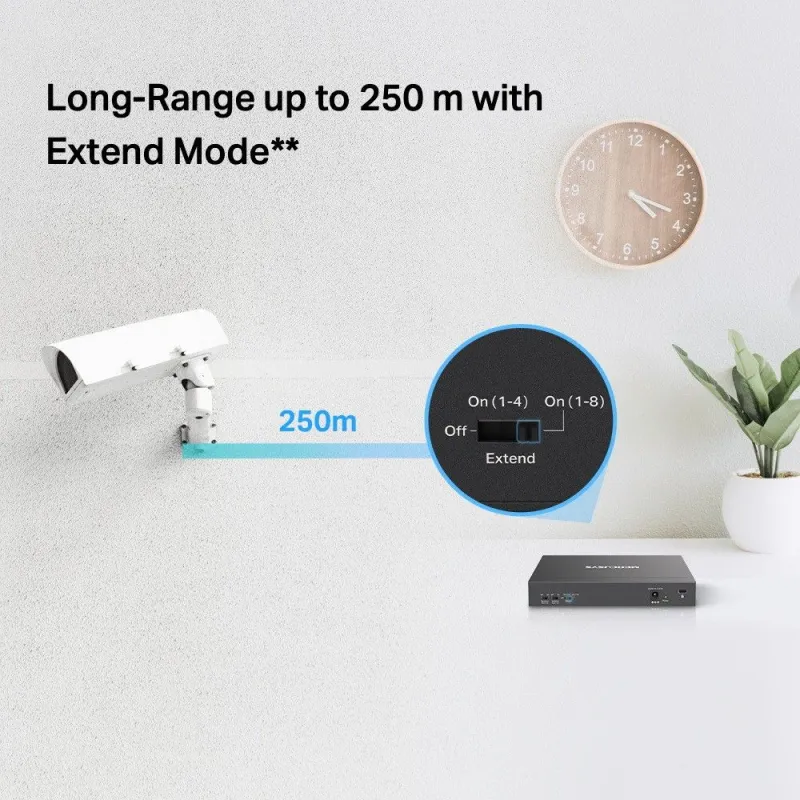

Long-Range up to 250m With Extend Mode

Extend Mode“ increases PoE transmission distance to 250 m. MS106LP has four long—range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

Mercusys MS110P POE Switch

Mercusys MS110P POE Switch

Durable and Silent

MS106LP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.
Mercusys MS110P POE Switch

รายละเอียดสินค้า
50 รายการ

ข้อมูลสินค้า

ประเภท Switch
UnManaged
ความเร็ว Port Lan
100Mbps
จำนวน Port Lan
8 Port
มาตรฐานจ่ายไฟ POE
802.3af/at (30W)
จำนวน Port POE
8 Port
รองรับสาย Lan 250 เมตร
Yes
