Product Specification | |

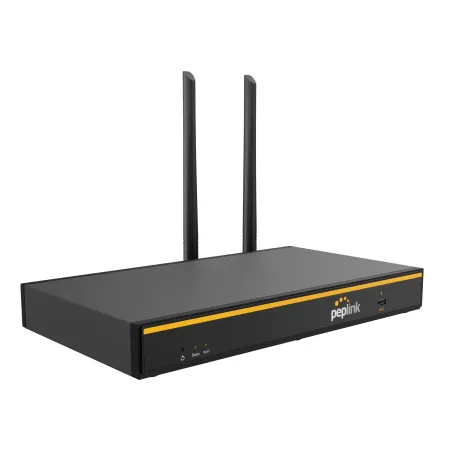

Overview | Peplink B One Loadbalance VPN Router 2 WAN, Internet Throughput 1Gbps, IPSecs 5 Tunnels Throughput 400Mbps, WIFI-6 สำหรับเชื่อมต่อเครือข่ายระหว่างสาขา VPN ที่ต้องการความเสถียรสูงมาก VPN Throughput สูง 400Mbps การ Config ง่ายด้วย Function PepVPN เหมาะสำหรับงานเชื่อมต่อเครือข่ายระหว่างสาขาที่ต้องการความเสถียรสูงมาก |
Ethernet WAN | 2 (GE) |
Ethernet LAN | 4 (GE) |
Router Throughput | 1Gbps |
SpeedFusion VPN Throughput (No Encryption) | 400 Mbps |
SpeedFusion VPN Throughput (256-bit AES) | 200 Mbps |
Interfaces |
Wi-Fi AP | Support |
Wi-Fi WAN | Support |
USB WAN | Support |

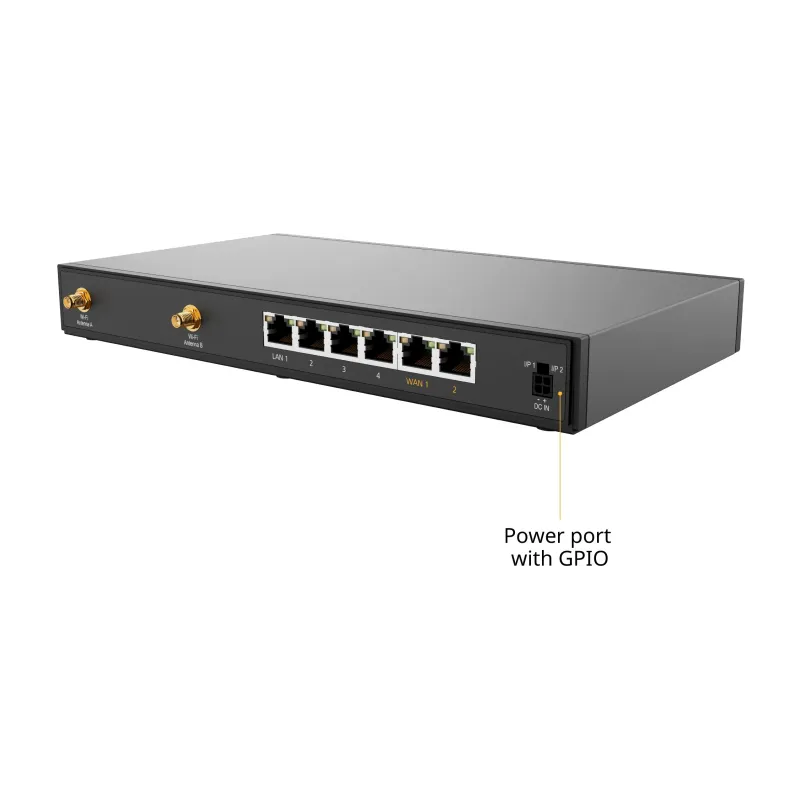

GPIO | Support |
Wireless Details |
Wi-Fi Radio | Dual (2.4GHz + 5GHz)
2x2 Wi-Fi 6 |
Transmit Power (2.4GHz, single chain) | undefined |
Transmit Power (5GHz, single chain) | 24dBm |
Multiple SSIDs | 16 |
Captive Portal | Support |
Features |
802.1 q VLANs Supported | 16 |
Drop-In Mode | Support |
High Availability | Support |
Web Blocking | Support |
In Control Cloud Management | Support |
VPN Functionality |
SpeedFusion VPN | Yes |
SpeedFusion Hot Failover | Yes (Require PrimeCare Subscription License) |
SpeedFusion WAN Smoothing | Yes (Require PrimeCare Subscription License) |
SpeedFusion Bandwidth Bonding | Yes (Require PrimeCare Subscription License) |
Number of IPsec Tunnels | 5 |
Maximum PPTP/L2TP/ OpenVPN Users | 3 |
Hardware |
Enclosure | Indoor, Plastic |
AC Adapter | AC Adapter: AC Input 100V- 240V / DC Output 12V |
Input Voltage | DC 10 - 30V |
Power Consumption | Max.: 15W |
Dimensions in mm | 262 x 161 x 33.5 mm |
Weight (Grams) | 727 grams |
Operating Temperature | -40° - 113°F / -40° - 45°C |
Humidity | 10% - 90% (non-condensing) |
Certifications | FCC, CE, RoHS EN 61000 Electromagnetic Compatibility |
| Software | Pepwave MAX Firmware |
| WAN | Support for PPPoE, Static IP, DHCP WAN Link Health Check Bandwidth Allowance Monitor Support for Dynamic DNS services IPv6 Support |
| LAN | DHCP Server for LAN Clients Extended DHCP Option DHCP Reservation DNS Proxy for LAN Clients VLAN on LAN Support |
| Load Balancing | Intelligent Failover Session Persistence Per-Service Load Distribution Multiple Algorithms -Weighted Balance -Priority -Overflow -Persistence -Least Used -Lowest Latency -Enforced -Fastest Response Time |
| Complete VPN Solution | SpeedFusion VPN - Site-to-Site VPN - SpeedFusion Hot Failover^ - SpeedFusion WAN Smoothing^ - SpeedFusion Bandwidth Bonding ^ - 256-bit AES Encryption - Pre-shared Key Authentication - Dynamic Routing - PPTP VPN Server - RADIUS, LDAP Authentication IPsec VPN (Network-to-Network)@ |
| Networking | NAT and IP Forwarding Static Routes Port Forwarding Many to One, One to One NAT NAT Pool SIP ALG, H.323 ALG UPnP, NAT-PMP WINS Server |
| Security | Stateful Firewall DoS Prevention Web Blocking |
| Advanced QoS | Individual Bandwidth Limit Application Prioritization -SIP, HTTPS, VPN QoS -Custom Application QoS |
| AP Controller | AP Controller Support Wi-Fi Usage Statistics Auto AP Firmware Management AP Profile Configuration Wi-Fi Usage Statistics |
| Captive Portal Support | Support for Wired and Wireless LAN Clients Support RADIUS Authentication Time and Usage Quotas on Open Access Mode Built-in Customizable Splash Page |
| Device Management | Web Administrative Interface Command Line Interface InControl Cloud Management Email Notification Active Client and Session Lists Bandwidth Usage Statistics Syslog Service SNMP v1, v2c and v3 |
Package Content | 1x B One 2x Wi-Fi Dual Band Antennas 1x 12V 3A 4 Pin Power Supply |
| |
รับประกัน | รับประกัน 1 ปี ** ฟรี PrimeCare 1 ปีแรก บริการต่อ License PimeCare Full SpeedFusion Capability Hardware Warranty Firmware Upgrade InControl 2 Access |
