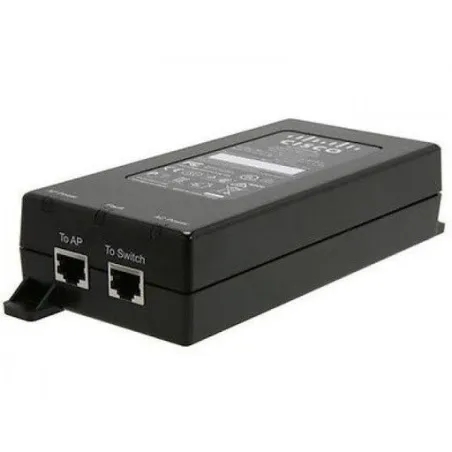

Cisco Aironet Power Injector AIR-PWRINJ6 POE 802.3at 30W Port Gigabit

Product Specification

Overview

Cisco Aironet Power Injector AIR-PWRINJ6 POE มาตรฐาน 802.3af/at กำลังไฟ 30W Port Gigabit

เหมาะสำหรับ Cisco Aironet 2800 series และ Cisco Aironet 3800 series หรืออุปกรณ์ Network ที่รองรับ POE มาตรฐาน 802.3at

Dimensions (W, H, L)

Model 1: 53 mm x 32.5 mm x 140 mm
2.09 in x 1.28 in x 5.5 in
Model 2: 65 mm x 36 mm x 140 mm
2.55 in x 1.42 in x 5.51 in

Data Rates

10/100/100 Mbps

PoE Output

Pin Assignment and Polarity:
4/5 (+), 7/8 (-)
Output Power Voltage: 55V DC

User Port Power

30 Watts

Input Power Requirements

AC Input Voltage: 100 to 240V AC
AC Input Current: 0.67 A @ 100 - 240 V AC
AC Frequency: 50 to 60 Hz

Weight

Model 1: 0.44 lbs (200 g)
Model 2: 0.47 lbs (215 g)

Connectors

Shielded RJ-45, EIA 568A and 568B

Environmental Conditions

Operating Ambient Temperature:
-4ºF to 104ºF (-20ºC to 40ºC) at 30 W
-4ºF to 122ºF (-20ºC to 50ºC) at 25 W

Operating Humidity:
Maximum 90%, Non-condensing

Storage Temperature:
-4ºF to 158ºF (-20ºC to 70ºC)

Reliability

MTBF: 100,000 hrs @ 25ºC

Thermal Rating

20 BTU/Hr @ 240 V AC

Regulatory Compliance

IEEE 802.3 at (PoE), China RoHS Compliant, WEEE Compliant, CE Compliant

Electromagnetic Emission and Immunity

FCC Part 15, Class B
EN 55022 Class B (Emissions)
EN 55024 (Immunity)
VCCI

Safety

UL 60950-1
IEC/EN 60950-1

รับประกัน

1 ปี
