Interfaces
|
|
LAN IN
|
1 x 10/100Base-TX Ethernet with IEEE 802.3af PoE “Data + DC” in
Auto MDI/MDI-X, auto-negotiation RJ-45 connector
|
|
LAN OUT
|
1 x 10/100Base-TX Ethernet with IEEE 802.3af PoE “Data + DC” out
Auto MDI/MDI-X, auto-negotiation RJ-45 connector
|
|
Power over Ethernet
|
|
PoE Standard
|
IEEE 802.3af Power over Ethernet
|
|
PoE Power Supply Type
|
Mid-Span / Type B
|
|
PoE Power Output
|
48V DC, 270mA, Max. 13Watts
|
|
Power Pin Assignment
|
4/5(+), 7/8(-)
|
|

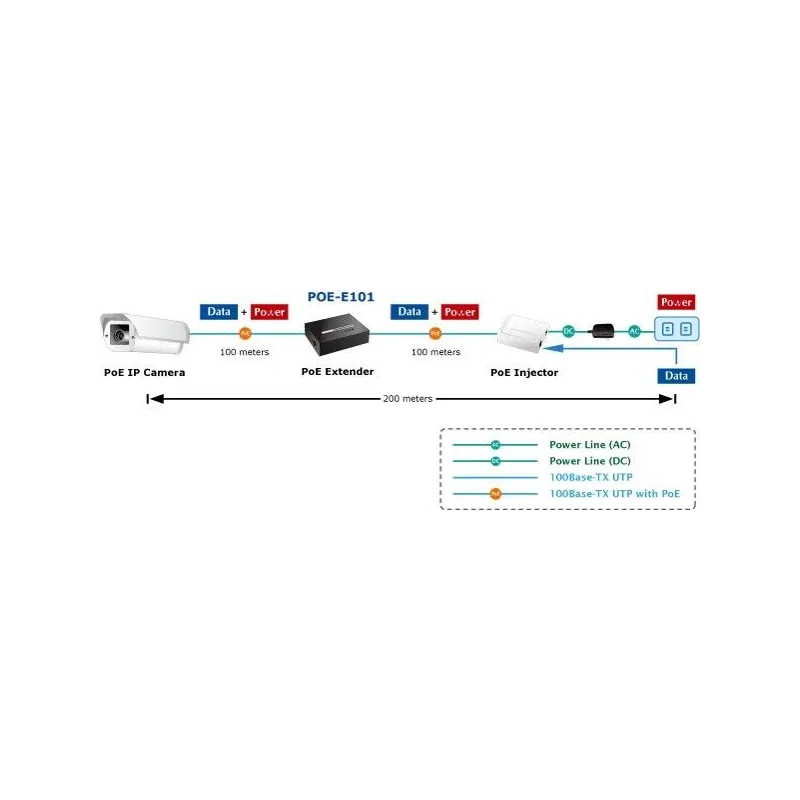

Maximum Distance
|
Class 1 (3.8 watts): 300m
Class 2 (6.5 watts): 300m
Class 3 (12.9 watts): 200m
Non-PoE (Data): 300m
|
|
Hardware Specifications
|
|
Hardware Version
|
Version 2
|
|
Data Rate
|
10/100Mbps
|
|
Switch Architecture
|
Store-and-Forward
|
|
Switch Throughput
|
148810pps@64Bytes
|
|
Latency
|
7.840?s
|
|
Maximum Frame Size
|
1552Bytes
|
|
Flow Control
|
Back pressure for half-duplex
IEEE 802.3x pause frame for full-duplex
|
|
LED Indicators
|
1 x PoE IN (Green)
1 x LAN Data (Green)
1 x PoE OUT (Green)
|
|
Protection
|
ESD(Ethernet): 6KV
Surge (EFT for power) : 6KV
|
|
Dimensions (W x D x H)
|
94 x 70 x 26 mm
|
|
Weight
|
215g
|
|
Power Requirements
|
IEEE 802.3af compliant with voltage within 44V-56V DC
|
|
Power Consumption
|
2 watts (maximum)
|
|
Mechanical
|
Metal / wall mountable and optional DIN-rail kit for installation
|
|
Cable
|
TIA / EIA-568, Category 5/5e cable
|
|
Standards Conformance
|
|
Regulation Compliance
|
FCC Part 15 Class A, CE
|
|
Standard Compliance
|
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 10/100Base-TX Fast Ethernet
IEEE 802.3af Power over Ethernet PSE / Mid-Span
IEEE 802.3af Power over Ethernet PD / Mid-Span
IEEE 802.3x Flow Control
|
|
Environment
|
|
Operating
|
Temperature: 0 ~ 50 degrees C
Relative Humidity: 0 ~ 95% (non-condensing)
|
|
Storage
|
Temperature: -10 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
|
