Overview
|

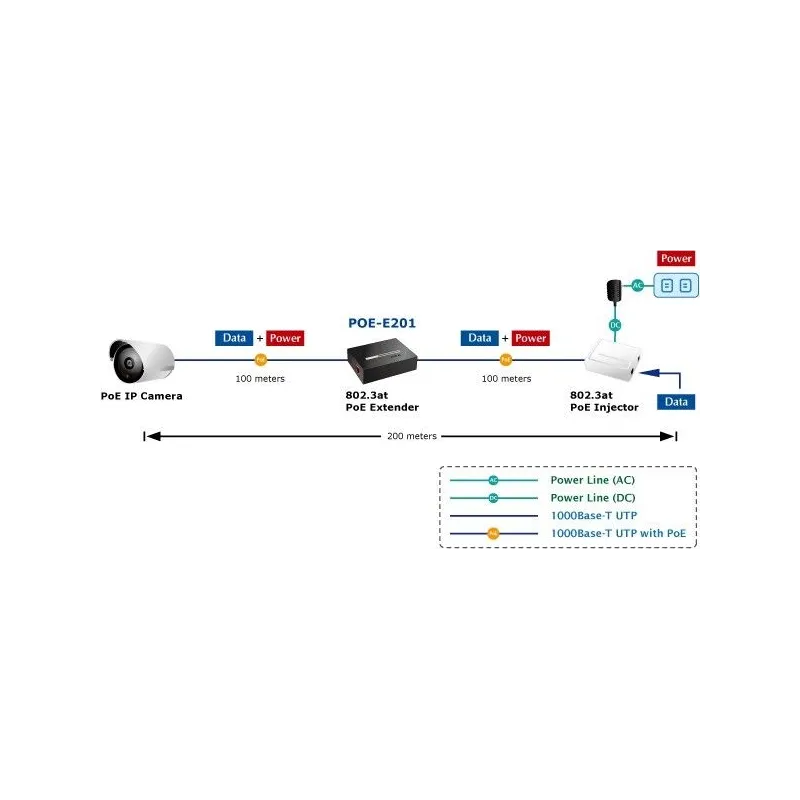

Planet POE-E201 อุปกรณ์ POE Extender เพื่อเพิ่มระยะสาย Lan พร้อมไฟ POE มาตรฐาน 802.3at ไปกับสาย ได้อีก 100 เมตร โดยไม่ต้องต่อปลั๊กไฟ (กำลังไฟไฟ้า WATT จะลดลงตามระยะทาง) และ สามารถ ต่อพ่วงอนุกรมได้สูงสุด 4 ตัว รวมได้ระยะ 400 เมตร ความเร็ว Gigabit 10/100/1000Mbps
|
|
Interfaces
|
|
LAN IN
|
1 x 10/100/1000Base-T Ethernet with IEEE 802.3at / 802.3af PoE “Data + DC” in auto MDI/MDI-X, auto-negotiation RJ-45 connector
|
|
LAN OUT
|
1 x 10/100/1000Base-T Ethernet with IEEE 802.3at / 802.3af PoE “Data + DC” out auto MDI/MDI-X, auto-negotiation RJ-45 connector
|
|
Power over Ethernet
|
|
PoE Standard
|
IEEE 802.3af (Power over Ethernet)
IEEE 802.3at (High Power over Ethernet)
|
|
PoE Power Supply Type
|
Mid-Span / Type B
|
|
PoE Power Output
|
52V DC, 510mA, Max. 26 watts
|
|
Power Pin Assignment
|
4/5(+), 7/8(-)
|
|
Maximum Distance
|

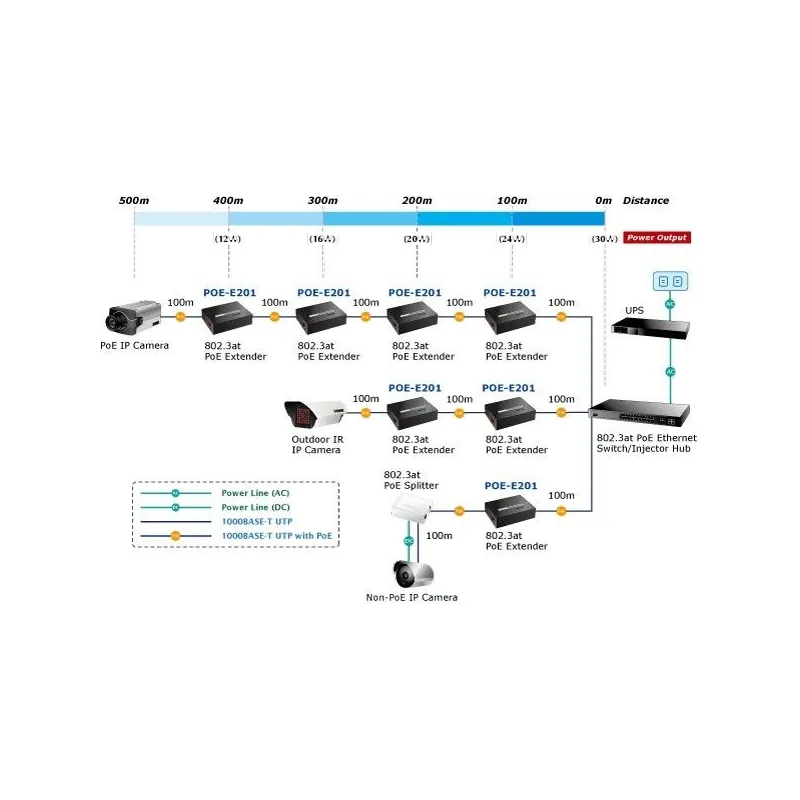

4 units, daisy-chain installation with 500m support
|
|
Hardware Specifications
|
|
Data Rate
|
10/100/1000Mbps
|
|
Switch Architecture
|
Store-and-Forward
|
|
Switch Throughput
|
10Mbps:14880pps@64Bytes
100Mbps:148810pps@64Bytes
1000Mbps:1488000pps@64Bytes
|
|
Maximum Frame Size
|
1552Bytes
|
|
Flow Control
|
Back pressure for half-duplex
IEEE 802.3x pause frame for full-duplex
|
|
LED Indicators
|
??? 1 x PoE IN (Green)
??? 1 x LAN Data (Green)
??? 1 x PoE OUT (Green)
|
|
Protection
|
ESD (Ethernet): 2KV (TBD)
Surge (EFT for power) : 2KV (TBD)
|
|
Dimensions (W x D x H)
|
94 x 70 x 26 mm
|
|
Weight
|
197g
|
|
Power Requirements
|
IEEE 802.3at compliant with voltage within 52V-56V DC
|
|
Power Consumption
|
3.2 watts (system maximum)
|
|
Mechanical
|
Metal / Wall mountable
|
|
Network Cable
|
10Base-T: 4-Pair UTP Cat. 5 up to 100m (328ft)
100Base-TX: 4-Pair UTP Cat. 5 up to 100m (328ft)
1000Base-T: 4-Pair UTP Cat. 5e, 6, up to 100m (328ft)
EIA/TIA- 568 100-ohm STP (100m, 328ft)
|
|
Standards Conformance
|
|
Regulation Compliance
|
FCC Part 15 Class A, CE
|
|
Standard Compliance
|
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet
IEEE 802.3x Flow Control
|
|
Environment
|
|
Operating
|
Temperature: 0 ~ 50 degrees C
Relative Humidity: 0 ~ 95% (non-condensing)
|
|
Storage
|
Temperature: -10 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
|
