Product Specification
|
|
Overview
|
POE Injector TP-Link TL-PoE170S PoE++ Injector Port Gigabit มาตรฐาน IEEE802.3bt 60W ได้ความยาวสาย Lan สูงสุดถึง 100 เมตร
|
NETWORK
|
|
Standards and Protocols
|
IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt*
|
GENERAL
|
|
Certification
|
FCC, CE, RoHS
|
|
Environment
|
Operating Temperature: 0°C to 45°C (32°F to 113°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90%RH non-condensing
Storage Humidity: 5% to 90%RH non-condensing
|
|
Material
|
Metal Casing
|
PACKAGE CONTENTS
|
|
Package Contents
|
PoE++ Injector TL-POE170S
Installation Guide
Power Cord
RJ45 Cable
|
HARDWARE FEATURES
|
|
Network Media
|
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100Ω STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100Ω STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
|
|

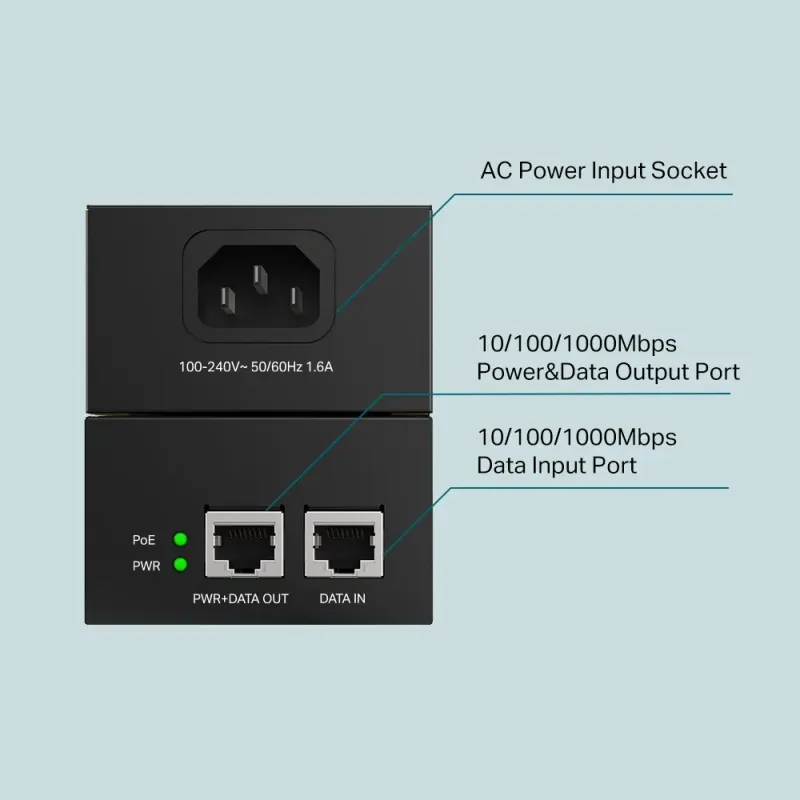

Ports
|
1 10/100/1000Mbps RJ45 data-in port
1 10/100/1000Mbps RJ45 power+data-out port
1 AC socket
|
|
Power Consumption
|
Input: 100-240 V, 50/60 Hz, 1.6A
Output: Auto-determine the necessary power requirements (max. 60 W)
|
|
Basic Function
|
Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD
Auto-determine the necessary power requirements

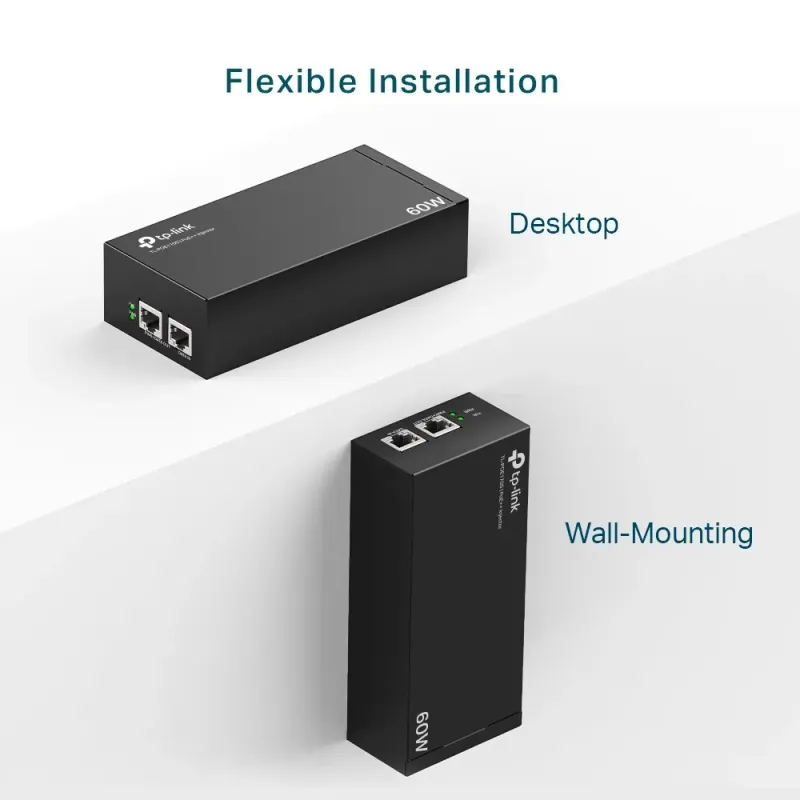

Wall-mounting and desktop installation supported

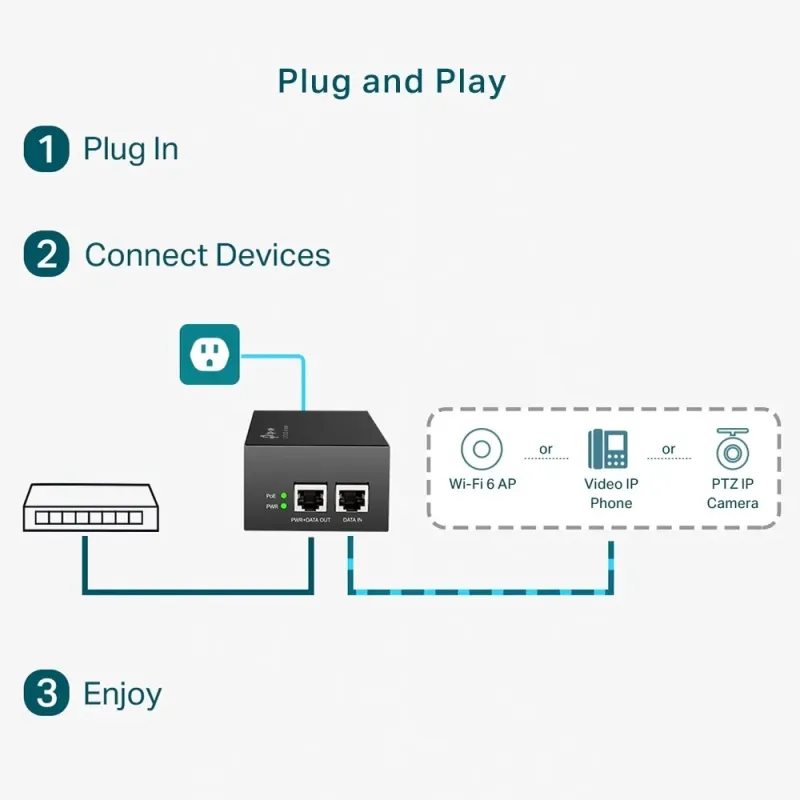

Plug-and-Play
|
|

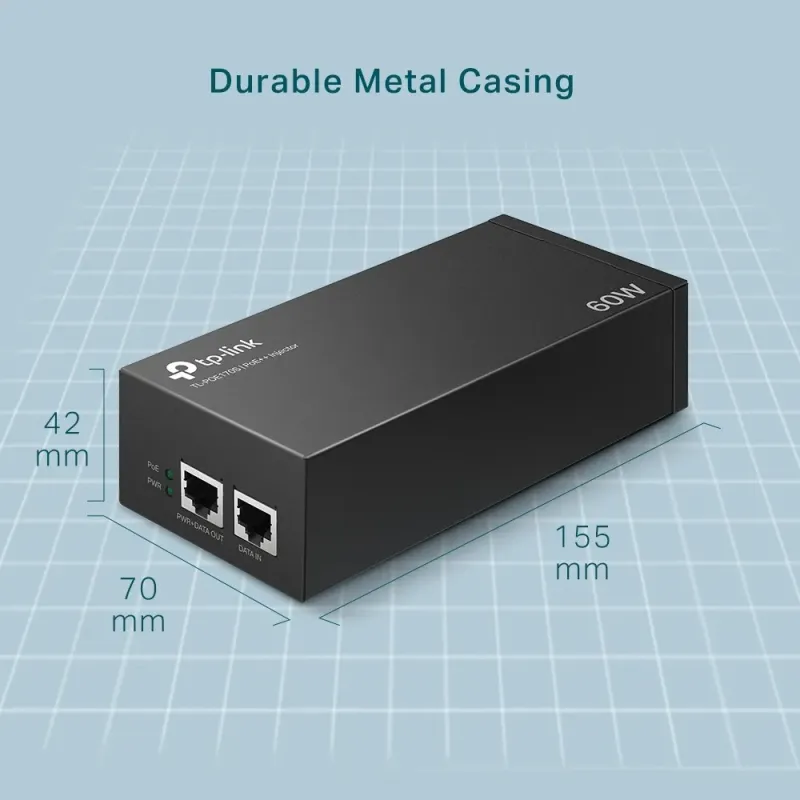

Dimensions ( W x D x H )
|
6.1*2.8*1.7 in (155*70*42 mm)
|
รับประกัน
|
1 ปี
|
