Product Specification
|
|
Overview
|

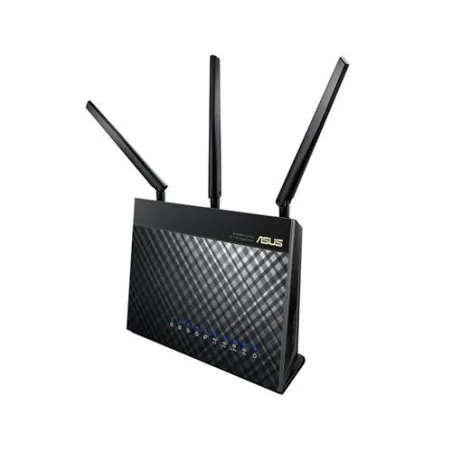

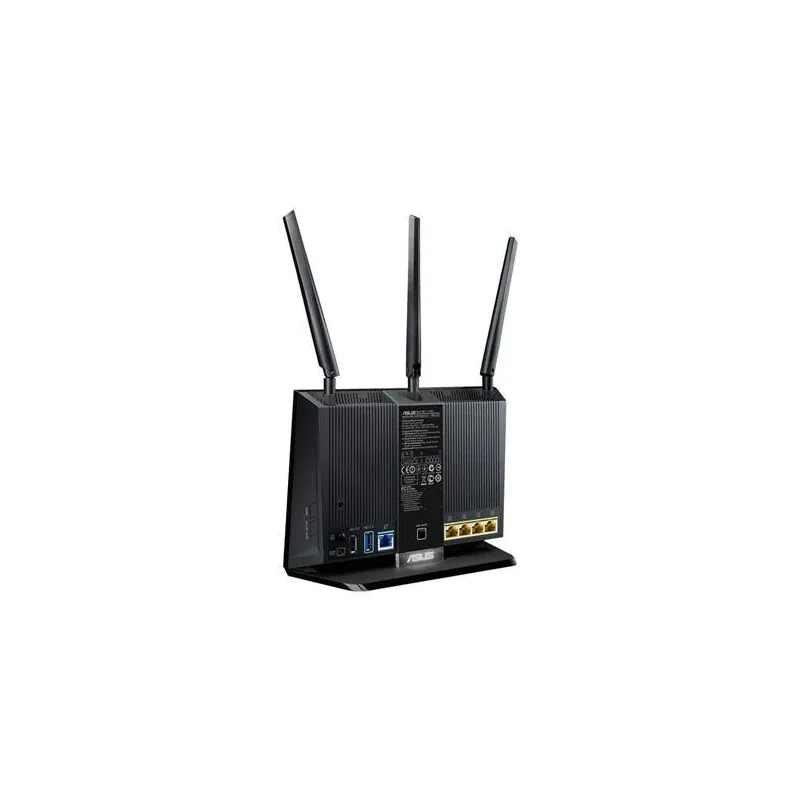

Asus RT-AC68U AC1900 Dual Band Gigabit WiFi Router รองรับ AiMesh, AiProtection, QOS และ Parental Control USB 3.0
|
|
Network Standard
|
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6
|
|
Product Segment
|
AC1900 ultimate AC performance : 600+1300 Mbps
|
|
Coverage
|
Very large homes
|
|
Data Rate
|
802.11n : up to 450 Mbps
802.11n TurboQAM : up to 600 Mbps
802.11ac : up to 1300 Mbps |
|
Antenna
|
External antenna x 3
|
|
Transmit/Receive
|
MIMO technology
2.4 GHz 3 x 3
5 GHz-1 3 x 3 |
|

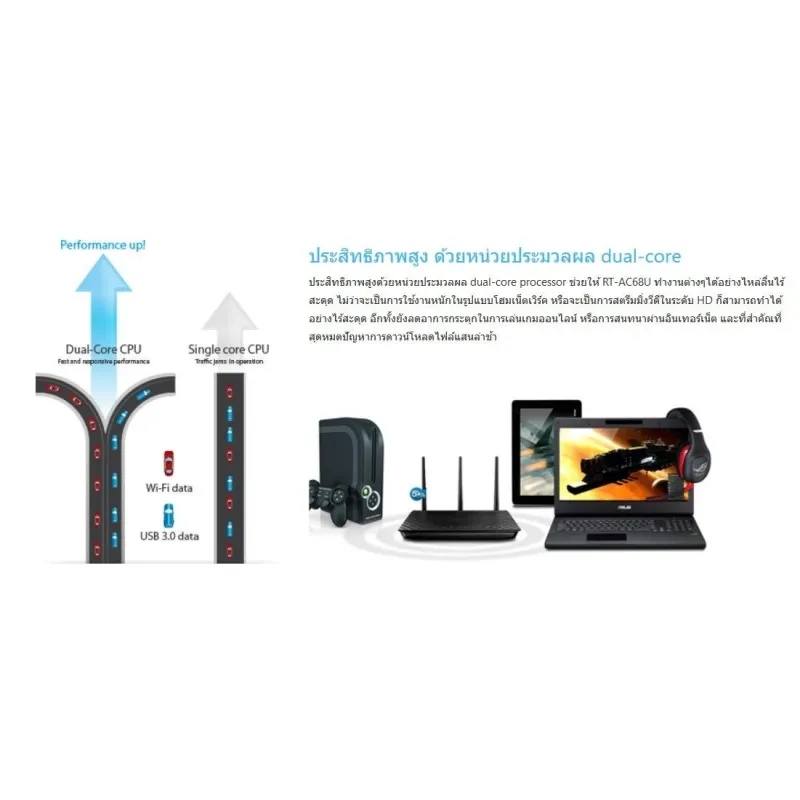

Processor
|
BCM47189+ BCM43217
|
|
Memory
|
128 MB Flash
128 MB RAM
|
|
Operating Frequency
|
2.4 GHz / 5 GHz
|
|
Encryption
|
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
|
|
Firewall & Access Control
|
Firewall：SPI intrusion detection,DoS protection
Access control：Parental control, Network service filter, URL filter, Port filter |
|
Management
|
UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Universal Repeater, System Event Log
|
|
WAN Connection Type
|
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
WAN Bridge support
Multicast Proxy support
Multicast Rate Setting support |
|

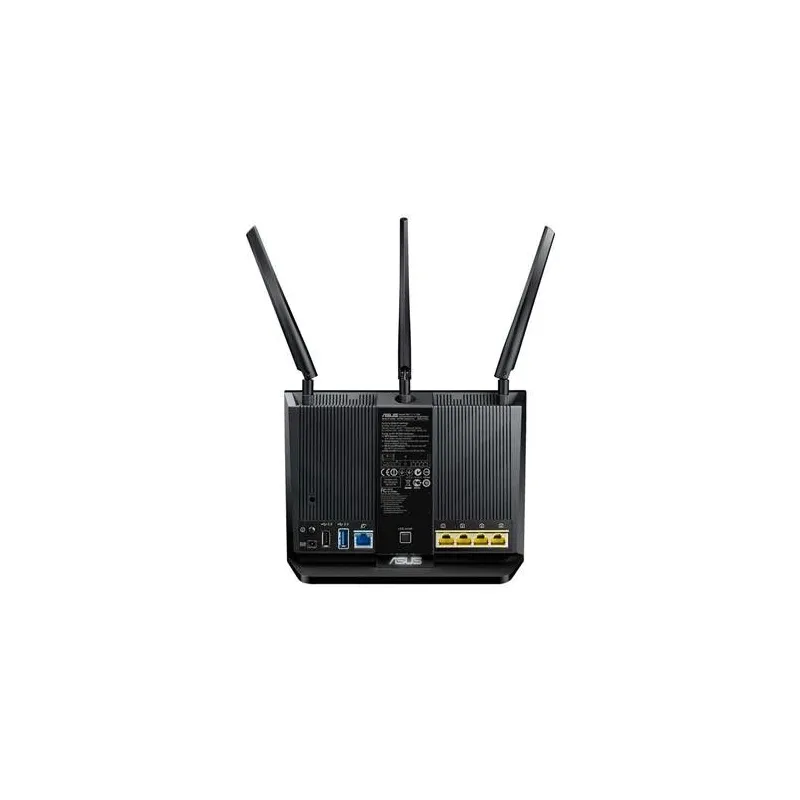

Ports
|
RJ45 for 10/100/1000/Gigabits BaseT for LAN x 4, RJ45 for 10/100/1000/Gigabits BaseT for WAN x 1
USB 2.0 x 1
USB 3.0 x 1 |
|
Button
|
WPS Button, Reset Button, Power Button
|
|
Features
|
Airtime Fairness
Traffic Analyzer
Adaptive QoS

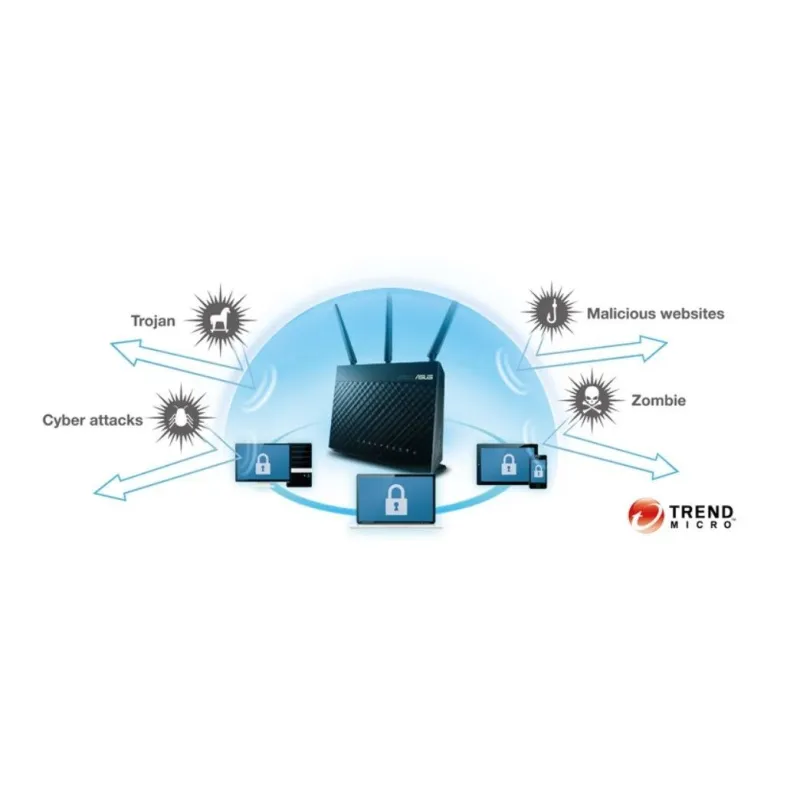

AiProtection
Guest Network : 2.4 GHz x 3, 5 GHz x 3

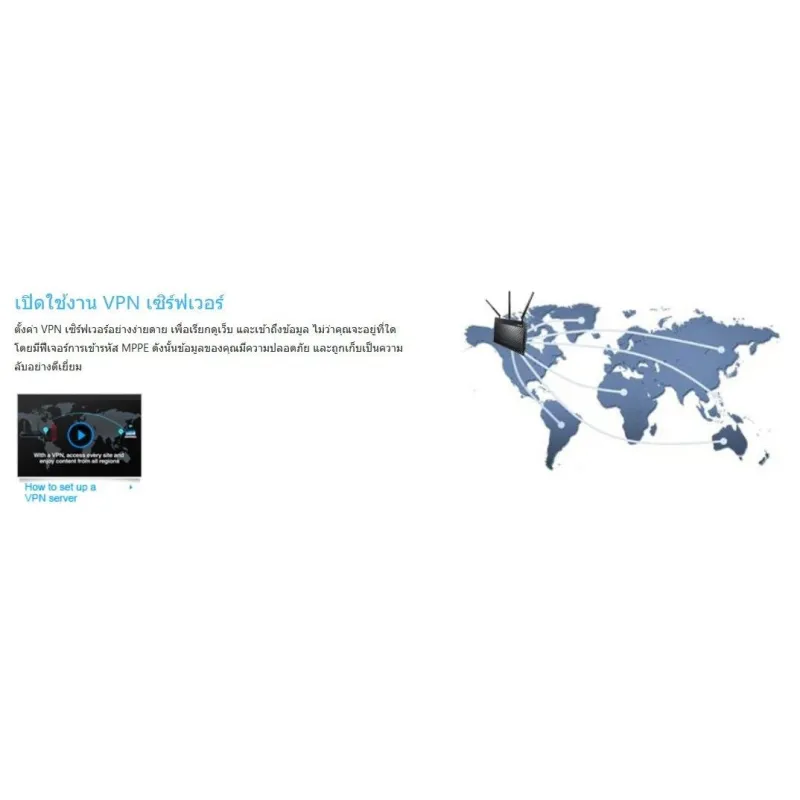

VPN server : IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP Server, OpenVPN Server
VPN client : PPTP client, L2TP client, OpenVPN client
Mac OS Backup
Enhanced media server (AiPlayer app compatible)
- Image : Jpeg
- Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
- Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov

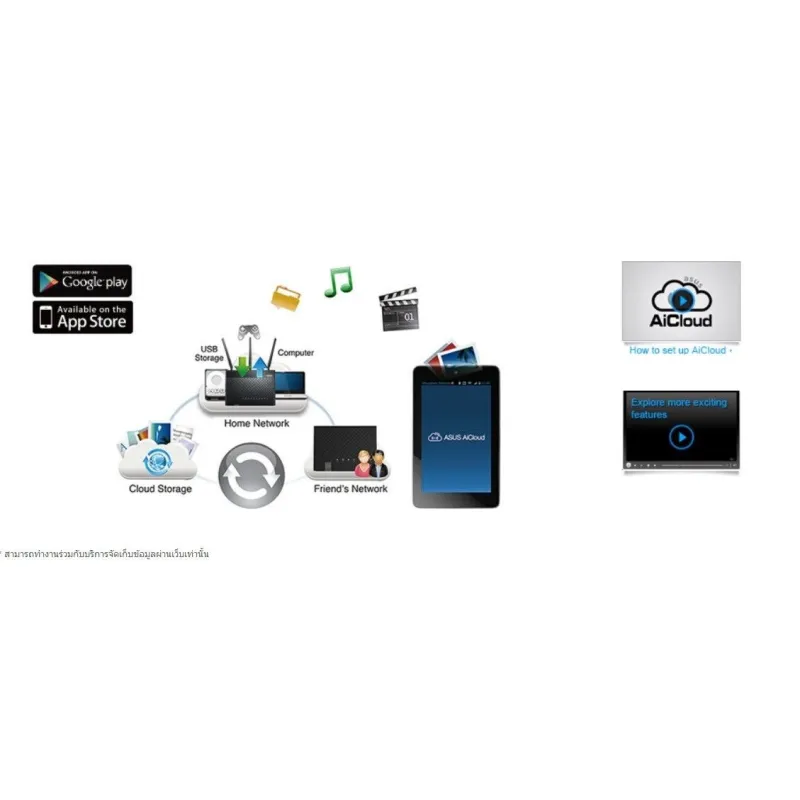

AiCloud personal cloud service
3G/4G data sharing
Printer Server
- Multifunctional printer support (Windows only)
- LPR protocol support

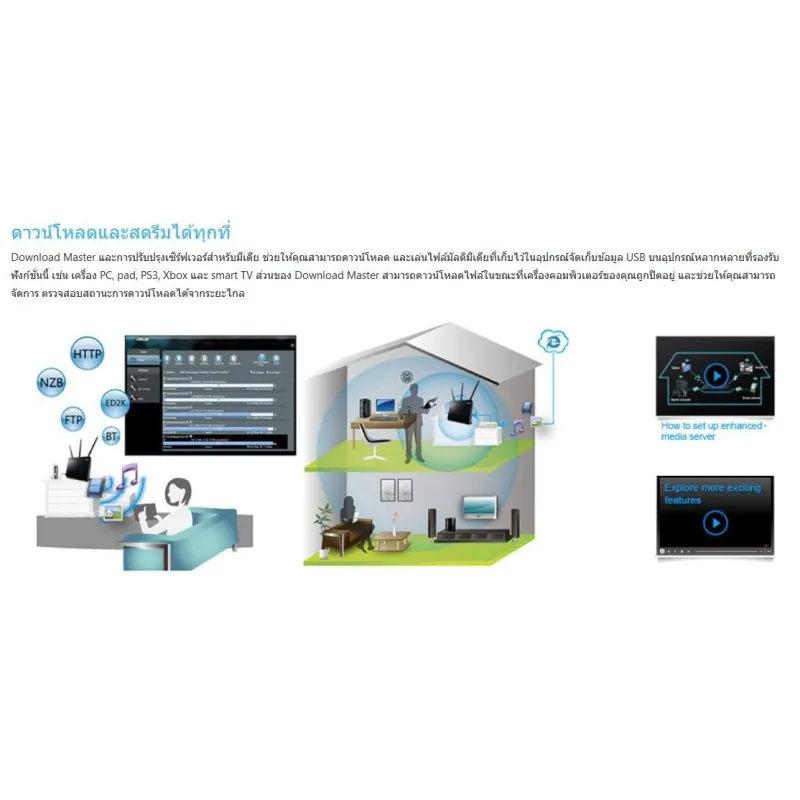

Download Master
- Support bt, nzb, http, ed2k
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
AiDisk file server
- Samba and FTP server with account management
Dual WAN
IPTV support
Roaming Assist
|
|
LED Indicator
|
Power x 1
Wi-Fi x 2
LAN x 4
WAN x 1
USB x 2 |
|
Power Supply
|
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current |
|
OS Support
|
Windows® 10
Windows® 8.1
Windows® 8
Windows® 7
Windows® Vista
Windows® 2000
Windows® ME
Windows® XP
Mac OS X 10.1
Mac OS X 10.4
Mac OS X 10.4
Mac OS X 10.5
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
Linux Kernel (Support Ubuntu only)
|
|
Dimensions
|
220 x 83.3 x 160 ~ mm (WxDxH) (Without Bezel)
|
|
Weight
|
-
|
|

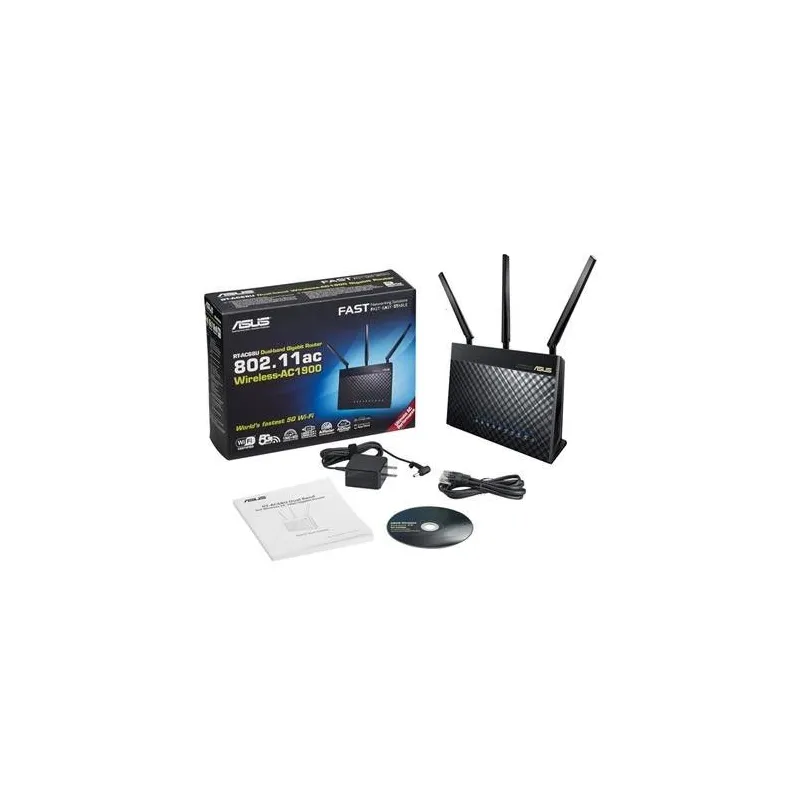

Package Content
|
1 x RT-AC68U Wireless-AC1900 Dual Band Gigabit Router
1 x RJ-45 cable
1 x Power adapter
1 x QSG
1 x Support CD(user manual and ultility) |
|
Operation mode
|
Wireless router mode
Range extender mode
Access point mode
Media bridge mode |
|
รับประกัน
|
5 ปี
|
