Overview
|

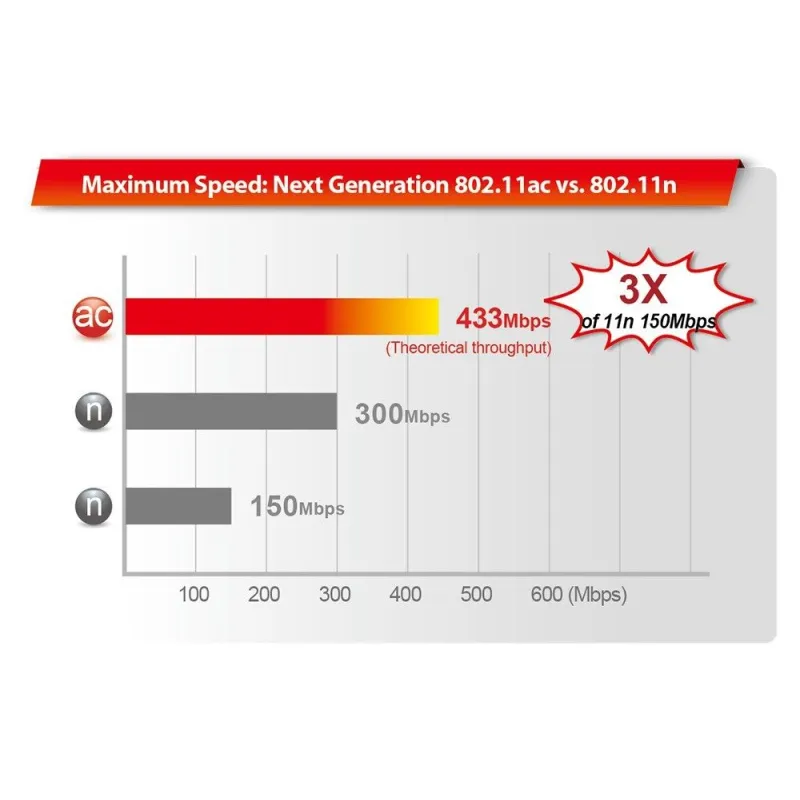

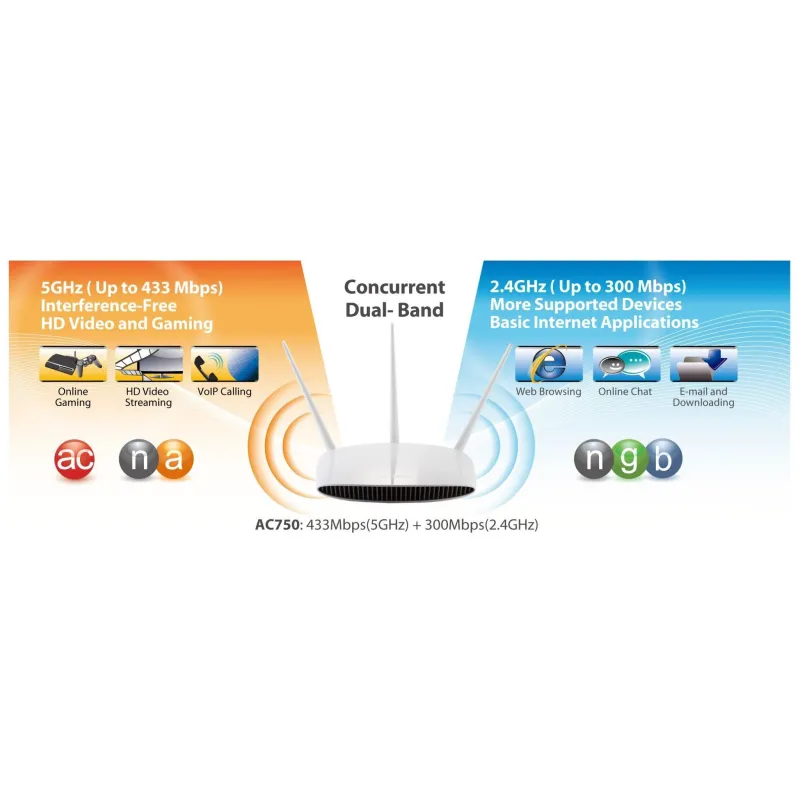

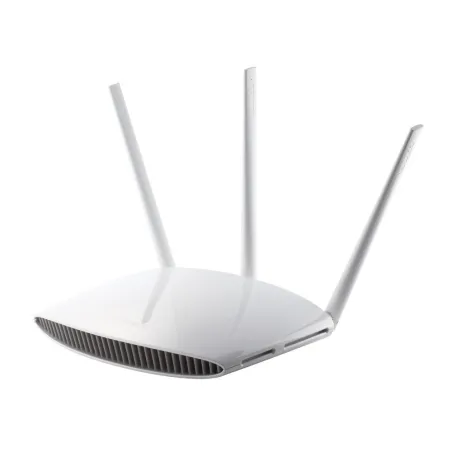

Edimax BR-6208AC AC750 Multi-Function Wi-Fi Router Dual-Band 2.4/5GHz มาตรฐาน AC ความเร็วสูงสุด 750Mbps รองรับ Mode Access Point, Range Extender, Wireless Bridge และ WISP
|
|
FUNCTIONS
|

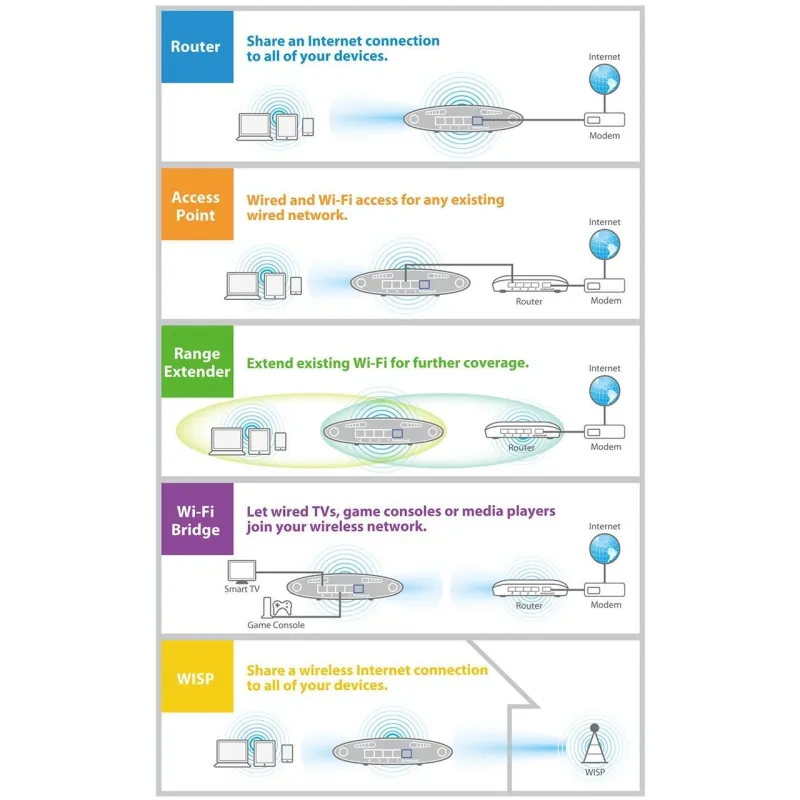

•Supports router, access point, range extender, wireless bridge and WISP modes

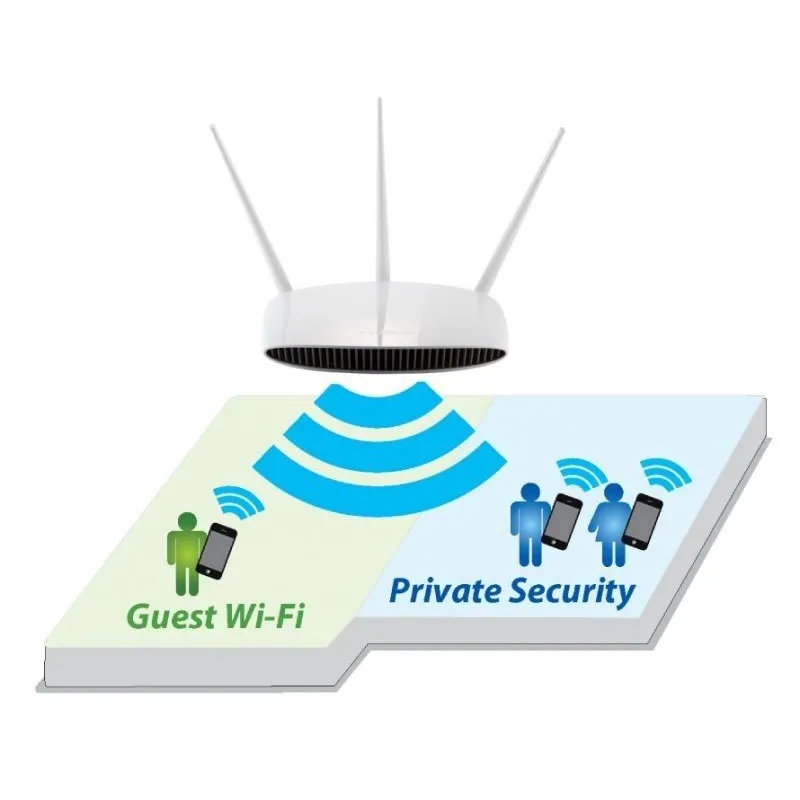

•Guest network

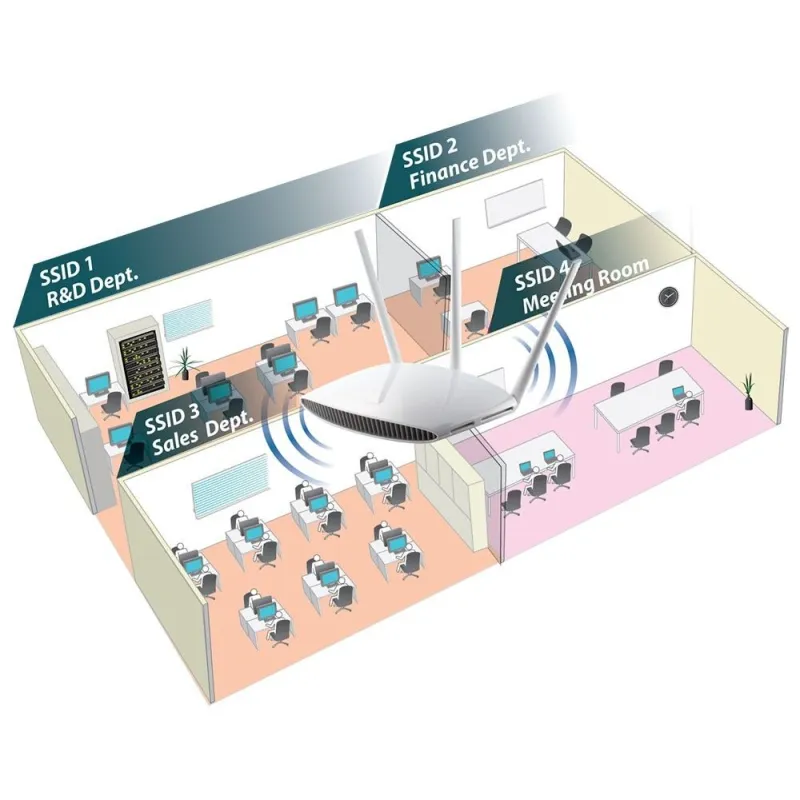

•Up to 8 SSIDs (2.4GHz x 4 and 5GHz x 4) with VLAN support in AP mode
•IGMP proxy and IGMP snooping
•DDNS and DHCP
•Port triggering for special applications
•IGMP proxy and IGMP snooping
•Virtual server and DMZ hosting
•MAC/IP filter and URL blocking
•iQoS for smart bandwidth management
•Static routing
•UPnP architecture
•VPN pass-through (IPSec/PPTP)
•Wi-Fi schedule control
•Fault tolerance firmware upgrade
|
|

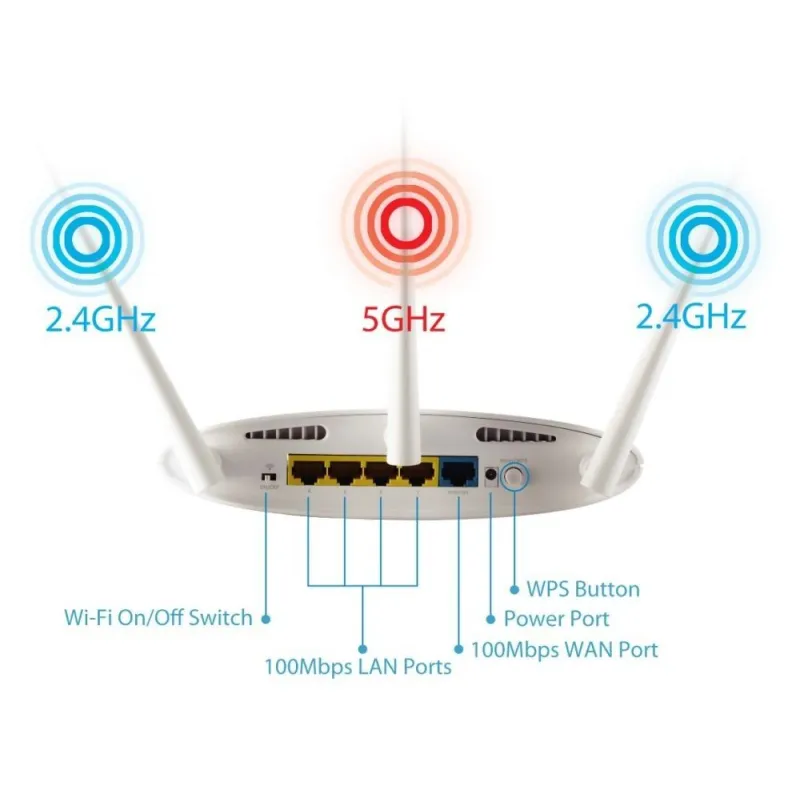

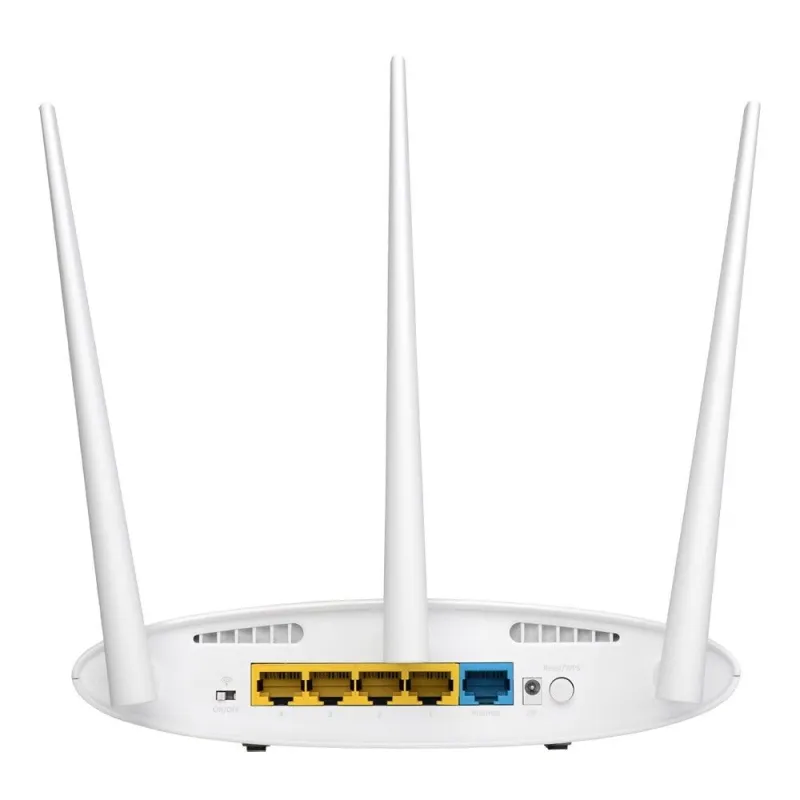

HARDWARE INTERFACE
|
•1 x RJ-45 10/100M WAN port
•4 x RJ-45 10/100M LAN port
•LED indicators: power, Internet, 2.4GHz wireless, 5GHz Wireless

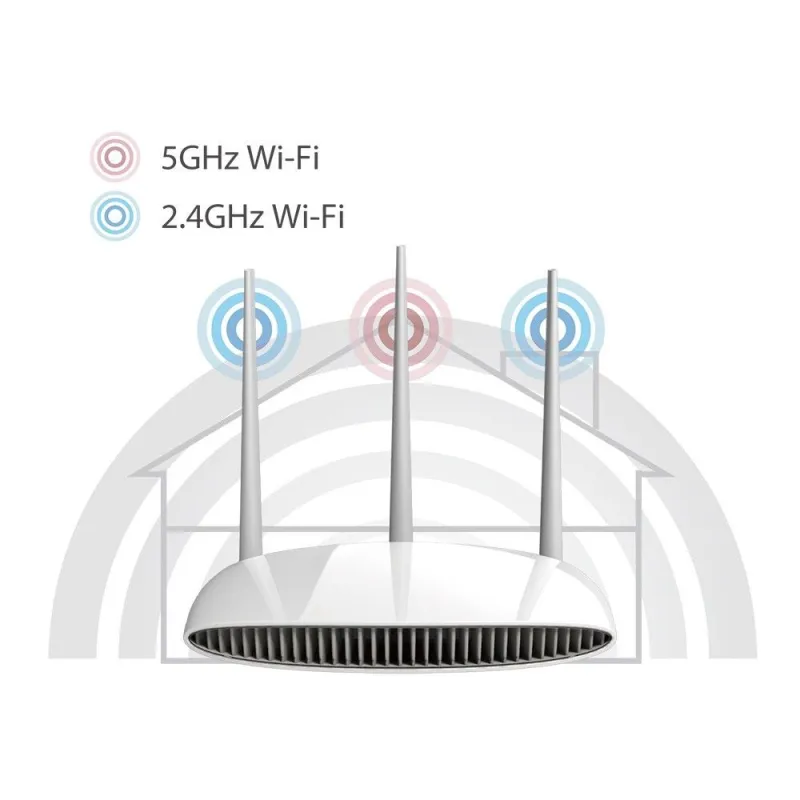

•2 x 2.4GHz antennas and 1 x 5GHz antenna
•WPS/Reset button
•Wireless on/off switch
|
|
MANAGEMENT & INSTALLATION
|
•Multi-language user interface
•Supports remote management
•System status and security log
•Firmware upgradable

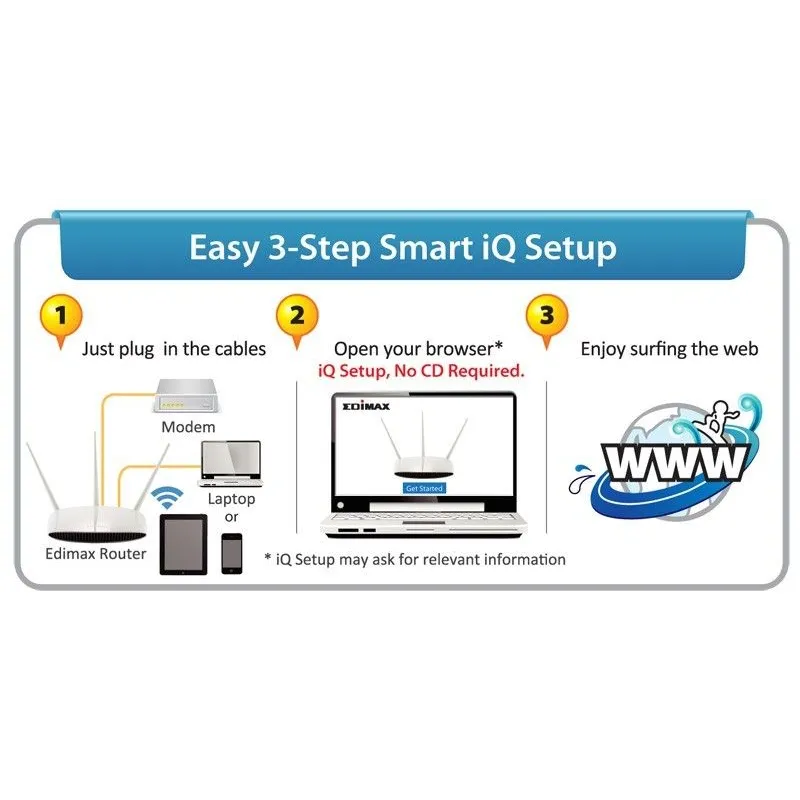

•Smart iQ Setup, no CD required
•Supports smartphone, tablet or laptop setup (iOS 4 or Android 4 and above are required for smartphone or tablet setup)
|
|
WAN
|
•Supports WISP connection mode
•Supports RJ-45 cable/xDSL modems
•WAN protocol: PPPoE, static IP, dynamic IP, PPTP and L2TP
|
|
OUTPUT POWER & SENSITIVITY GAIN (5GHz)
|
Output Power
•11a(54Mbps): 16?1.5dBm
•11n(20MHz, MCS7): 16?1.5dBm
•11n(40MHz, MCS7): 16?1.5dBm
•11n(80MHz, MCS9): 14?1.5dBm
Receive Sensitivity
•11a(54Mbps): ?69?2dBm
•11n(20MHz, MCS7): ?68?2dBm
•11n(40MHz, MCS7): ?64?2dBm
•11n(80MHz, MCS9): -57?2dBm
|
|
OUTPUT POWER & SENSITIVITY GAIN (2.4GHz)
|
Output Power
•11b (11Mbps): 18?1.5dBm
•11g (54Mbps): 17?1.5dBm
•11n (20MHz, MCS7): 16?1.5dBm
•11n (40MHz, MCS7): 16?1.5dBm
Receive Sensitivity
•11b(11Mbps): ?83?2dBm
•11g (54Mbps): ?69?2dBm
•11n(20MHz, MCS7): ?67?2dBm
•11n(40MHz, MCS7): ?64?2dBm
|
|
SECURITY
|
•64/128-bit WEP encryption, WPA and WPA2 security
•QoS for critical operations
•SPI anti-DoS firewall
|
|
MEMORY
|
•4MB NOR Flash
•64MB RAM
|
|
HUMIDITY & TEMPERATURE
|
•10-90% (non-condensing)
•0-40oC
|
|
POWER ADAPTER
|
•DC 5V, 1.5A
|
|
DIMENSIONS
|
•190.2mm x 141mm x 42mm
|
|
CERTIFICATIONS
|
•FCC/CE
|
|
PACKAGE CONTENT
|
Broadband router (main body, 1 pcs)
Quick Installation Guide (1 pcs)
One CD-ROM (Including the Setup Wizard, Multi-languages Quick Installation Guide and User Manual)
5V DC power adapter (1 pcs)
Ethernet Cable
|
|
|
|
