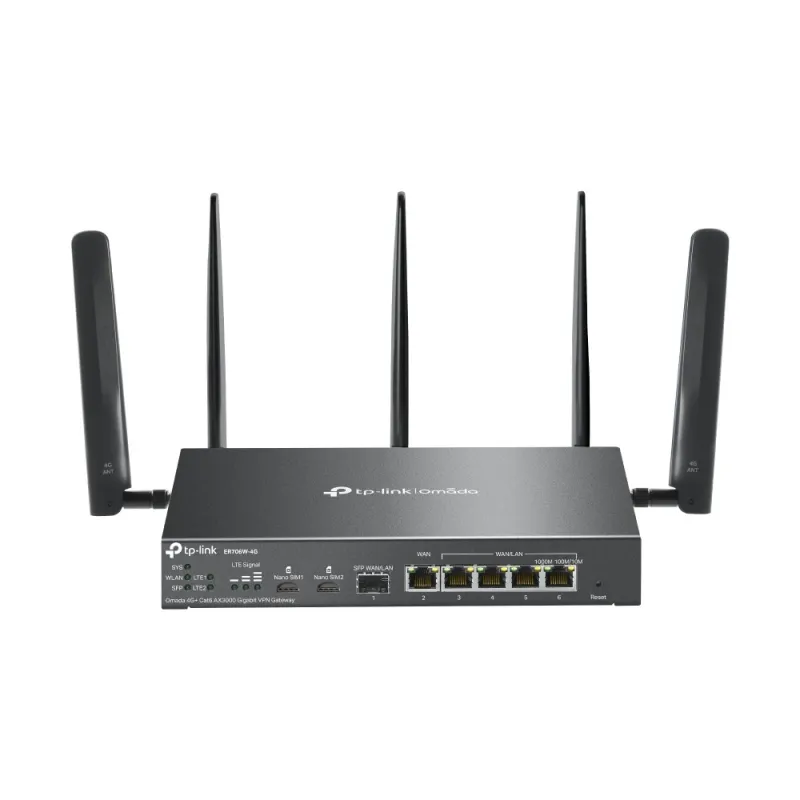

ER706W-4G V2 TP-LINK Omada 4G (Dual SIM) + Cat6 AX3000 Gigabit VPN Router

Product Specification

Overview

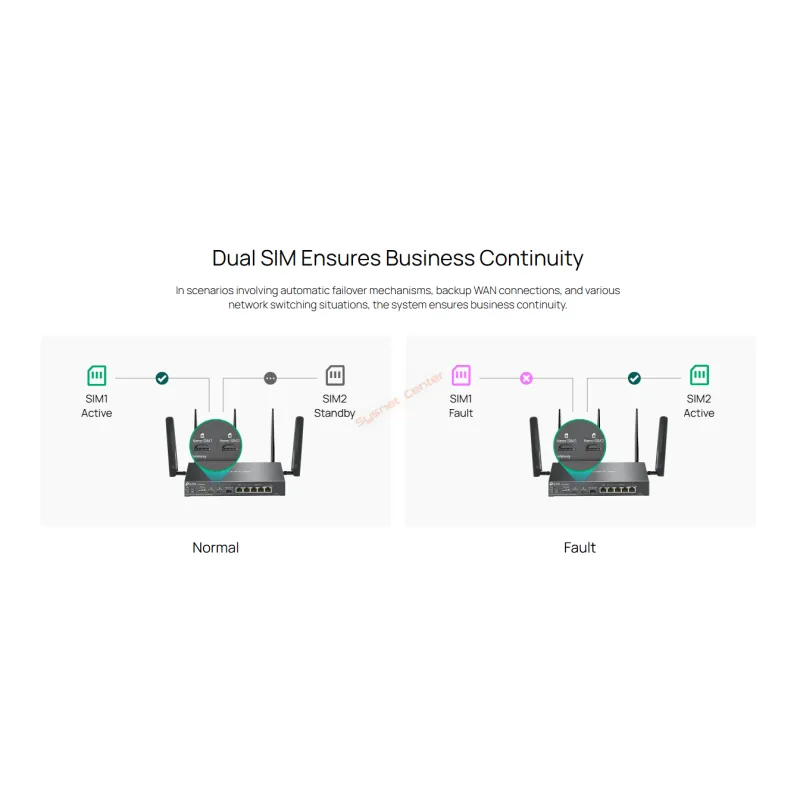

TP-LINK ER706W-4G-V2 Omada 4G+ Cat6 AX3000 Gigabit VPN Router, PSec VPN , L2TP, WireGuard รองรับ Loadbalance ได้ 4 WAN, 4G LTE Router แบบใส่ Dual Sim ทำงานแบบ Active-Standby, 5 Port Lan/WAN, 1 Port SFP, รองรับ Omada Controller และ Standalone Mode

LTE Band of EU:
• 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)
• 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
• 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz)

Carrier Aggregation:
B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
B5+B5/B7/B38/B40/B41
B7+B7/B8/B20/B28/B32
B8+B32/B38/B40/B41
B20+B32/B38/B40
B28+B32/B38/B40/B41
B38+B38
B40+B40
B41+B41

2× Nano SIM Card

• Downlink: 300 Mbps;
• Uplink: 50 Mbps

Application control via DPI / Updated app library

Signature-based IPS/IDS threat detection

Source/Destination IP Based Access Control

• Web Group Filtering^†
• URL Filtering
• Web Security^†

• Sending GARP Packets
• ARP Scanning^†
• IP-MAC Binding

• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

• 1 Gigabit SFP WAN/LAN Port
• 1 Gigabit WAN Port
• 4 Gigabit LAN/WAN Ports

• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

Reset Button

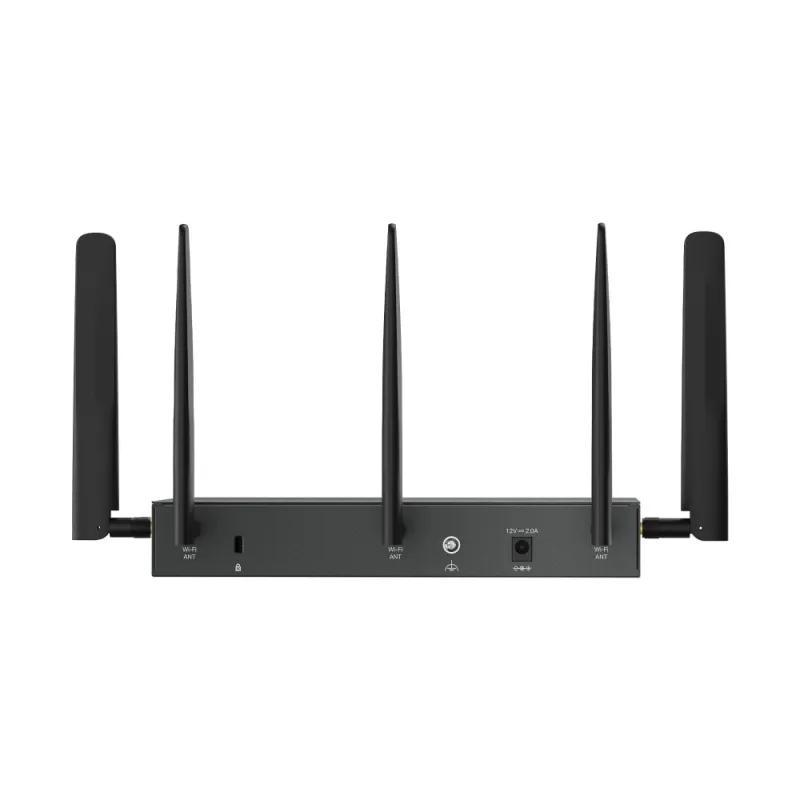

12VDC / 2A Power Adapter

• 2.4 GHz: 574 Mbps
• 5 GHz: 2402 Mbps (HE160)

128 MB NAND

512 MB DDR4

SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)

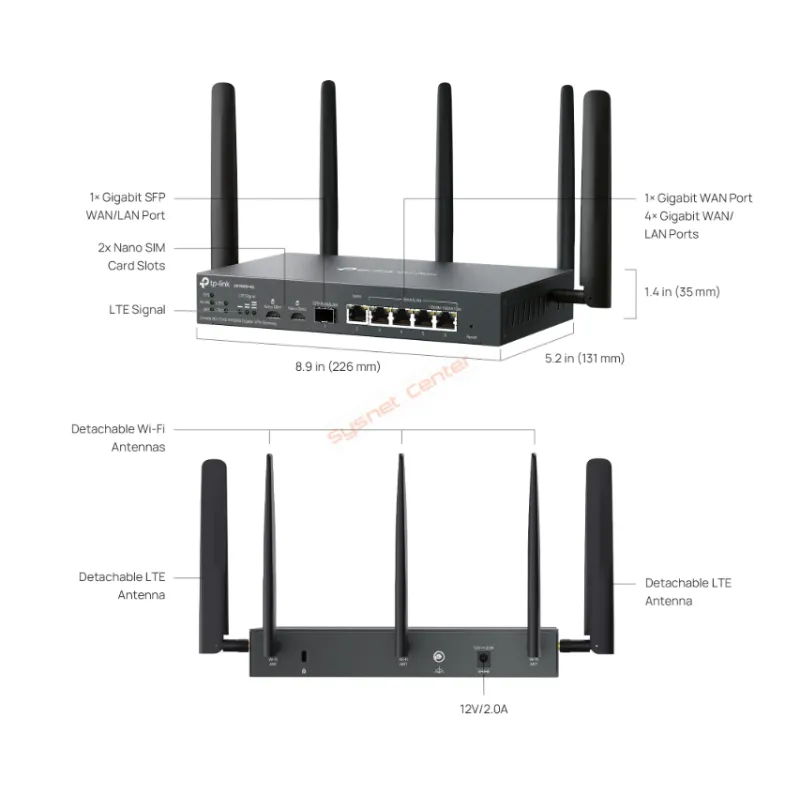

8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not
included)

• Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas
• LTE: Two 4.0dBi omnidirectional detachable antennas

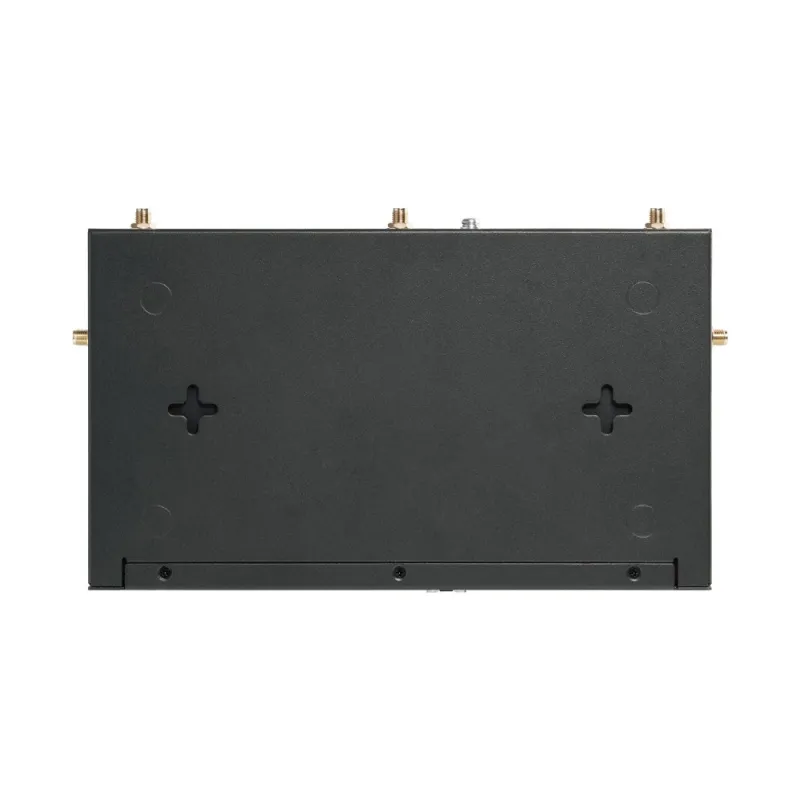

Desktop/Wall-Mounting

EU: 15.4W

US: 17.3W

• TCP: 229 Mbps
• UDP: 188 Mbps

• Unencrypted: 545.3Mbps
• Encrypted: 282.6Mbps

387.7Mbps

150,000

5,100

947.1Mbps / 940.1Mbps

949.2Mbps / 941.1Mbps

942.6Mbps / 941.1Mbps

875.4Mbps / 892.0Mbps

881.2Mbps / 895.8Mbps

• ESP-SHA1-AES256: 652.2Mbps
• ESP-SHA256-AES256: 654.4Mbps
• ESP-SHA384-AES256: 646.5Mbps
• ESP-SHA512-AES256: 670.5 Mbps

115.5Mbps

• Unencrypted: 990.0Mbps
• Encrypted: 475.0Mbps

• Unencrypted: 1177.9Mbps
• Encrypted: 177.4Mbps

122.5Mbps

1,453,489 pps / 1,453,488 pps

81274 pps / 91275 pps

• Seamless Roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• MU-MIMO
• Rate Limit: Based on SSID/Client
• Airtime Fairness
• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
• Multiple SSIDs: 16 in total (8 per radio)

Support

• Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP

Modify WAN Address

• DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP

Receive / Send SMS

StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode

802.1Q VLAN

IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

IP/Port/Protocol/Domain Name Filtering

• Static Routing
• Policy Routing
• RIP^†
• OSPF^†

IP-Based Bandwidth Control

• Intelligent Load Balance
• Application Optimized Routing
• Link Backup(Timing, Failover)
• Online Detection

• One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering^†
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP

IP-Based Session Limit

Only in Standalone Mode

50 Tunnels

• 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

• PPTP VPN Server
• PPTP VPN Client (10)^△
• 50 Tunnels
• PPTP with MPPE Encryption

• L2TP VPN Server
• L2TP VPN Client (10)^△
• 50 Tunnels
• L2TP over IPSec

• OpenVPN Server
• OpenVPN Client (5)^△
• 55 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode

• No Authentication
• Simple Password^§
• Hotspot (Local User / Voucher^§ / SMS^§ / Radius^§)
• External Radius Sever
• External Portal Sever^§
• LDAP

Yes.

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Yes.

Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)^†
• NTP Synchronize^†
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support

Yes. Require the use of Omada Cloud-Based Controller.

• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration

CE, FCC, RoHS

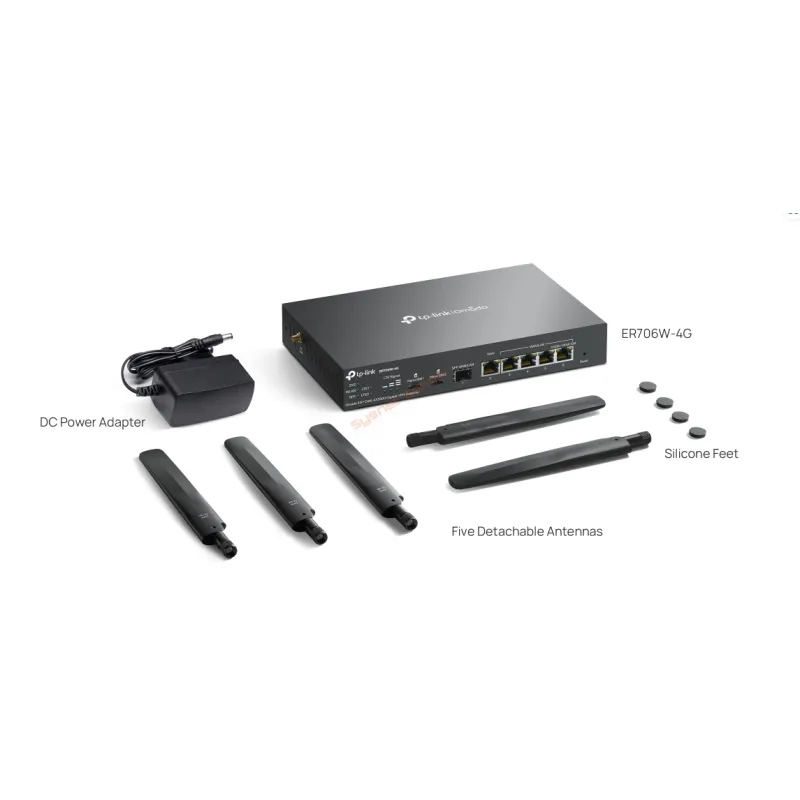

• ER706W-4G V2
• Power Adapter
• Quick Installation Guide

• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing

รับประกัน

Limited Lifetime
