Product Specification
|
|

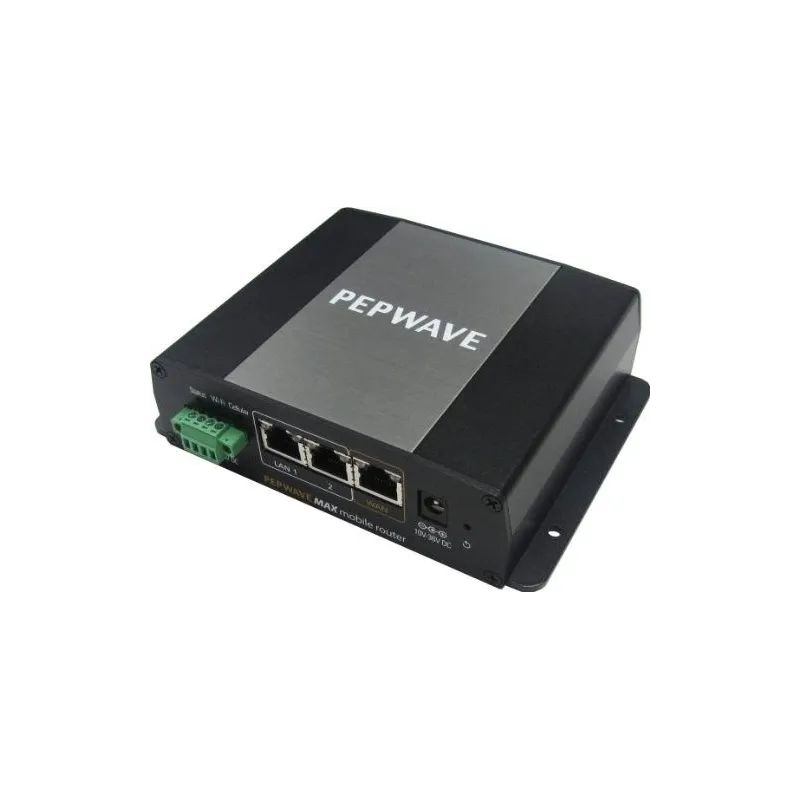

Pepwave MAX BR1 อุปกรณ์ 3G VPN รองรับเครือข่าย 3G จำนวน 1Wan รองรับการทำ VPN ผ่านเครือข่ายระบบ 3G อุปกรณ์ Industrial Grade คุณภาพสูงจากอเมริกา
|
| |
|
|
Cellular WAN
|
|
Embedded 3G
|
1 Sim Slot
|
|
Redundant SIM Slots
|
Yes
|
|
USB 4G LTE/3G WAN
|
N/A
|
|
WAN
|
|
Ethernet WAN Ports
|
1 Port 10/100Mbps
|
|
802.11b/g/n Wi-Fi as WAN
|
Yes
|
|
802.11a/n Wi-Fi as WAN
|
N/A
|
|
LAN
|
|
Ethernet LAN Ports
|
2 Port 10/100Mbps
|
|
802.11b/g/n Wi-Fi AP
|
Yes
|
|
802.11a/n Wi-Fi AP
|
Yes
|
|
Capacity
|
|
Recommended Users
|
1-25 Users
|
|
Router Throughput
|
100Mbps
|
|

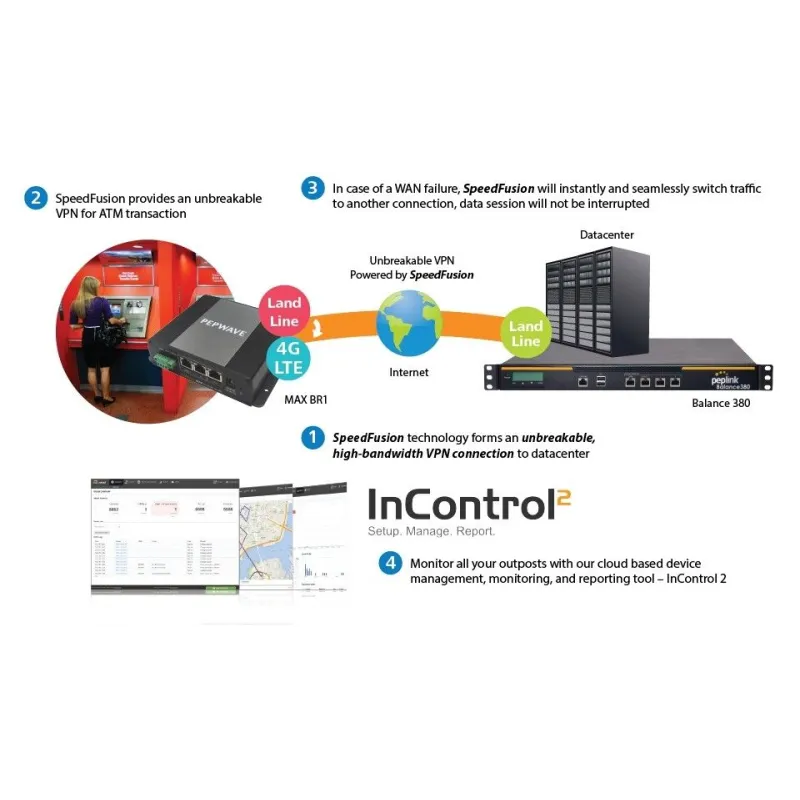

VPN Functionality
|
|
PepVPN
|
Yes
|
|
SpeedFusion Hot Failover
|
Yes
|
|
SpeedFusion Bandwidth Bonding
|
Yes
|
|
Number of PepVPN/SpeedFusion Peers
|
2
|
|
PepVPN/SpeedFusion Throughput (No Encryption)
|
40Mbps
|
|
PepVPN/SpeedFusion Throughput (256-bit AES)
|
20Mbps
|
|
Central Management
|
|

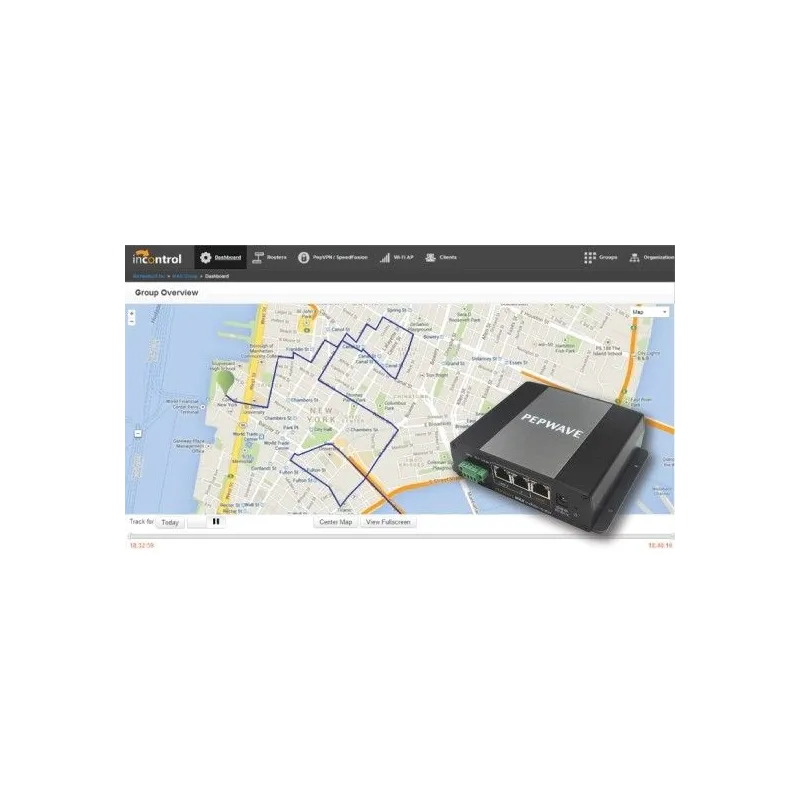

InControl Cloud Management
|
Yes
|
|
GPS Fleet Management
|
N/A
|
|
AP Controller Functionality
|
N/A
|
|
Manage Pepwave AP Series
|
N/A
|
|
Maximum Number of AP Support
|
N/A
|
|
Hardware Features
|
|
Enclosure
|
Low-Profile, All Purpose
|
|
PoE Output
|
N/A |
|
Terminal Block Power Connector for Mobile/Vehicular Deployment
|
N/A
|
|

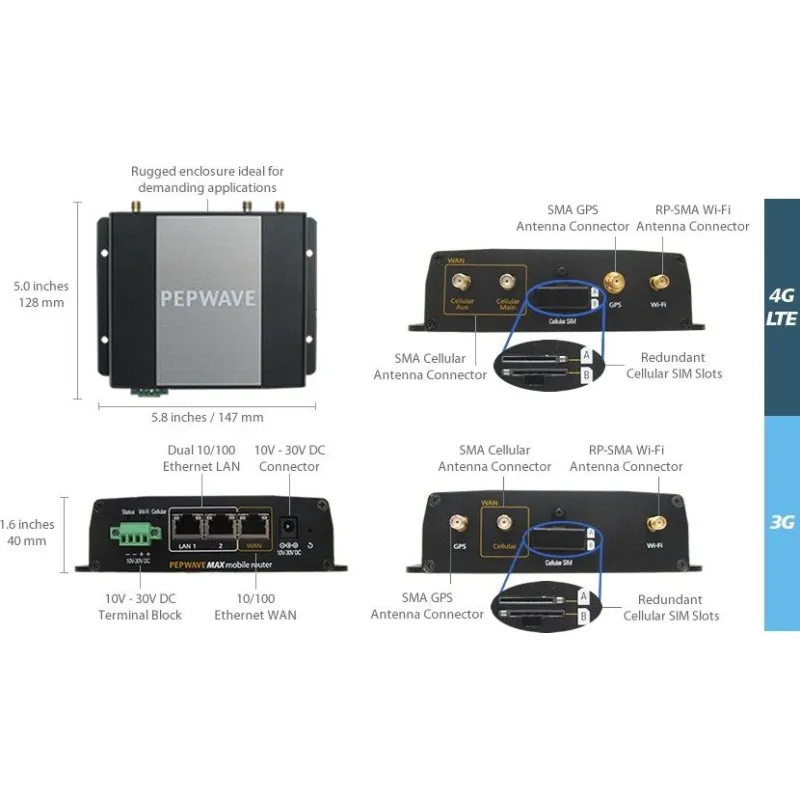

Dimensions
|
40 x 147 x 128 mm
|
|
Weight
|
435g
|
|
Operations
|
|
Power Input
|
Device: 10V – 30V DC, 2A
AC Adapter: AC Input 100V – 240V / DC Output 12V
Terminal Block: 10V – 30V DC, 2A
|
|
Power Consumption
|
9W (without modems) 20W (max.)
|
|
Operating Temperature
|
-10? – 65?C
|
|
Certifications
|
|
FCC, CE, RoHS
|
Yes
|
|
รองรับการ Software license key for Advanced Car-Fi Roaming and IPsec X.509 Certicate Support ราคา 8,900
|
