| RG-AP880-E Product Specifications |
| 802.11ax | Eight spatial streams
Radio 1 – 2.4 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams
Radio 2 – 5 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams
Radio 3 – 6 GHz: 4x4 uplink/downlink MU-MIMO, four spatial streams Channels:
Radio 1 – 2.4 GHz: 20 MHz and 40 MHz
Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz
Radio 3 – 6 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz Combined peak data rate: 7.780 Gbps:
Radio 1 – 2.4 GHz: 8.6 Mbps to 0.574 Gbps (MCS0 to MCS11)
Radio 2 – 5 GHz: 8.6 Mbps to 2.402 Gbps (MCS0 to MCS11)
Radio 3 – 6 GHz: 8.6 Mbps to 4.804 Gbps (MCS0 to MCS11)
Radio technologies: uplink/downlink Orthogonal Frequency-Division Multiple Access (OFDMA)
Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM Packet aggregation:
Aggregate MAC Protocol Data Unit (A-MPDU)
Aggregate MAC Service Data Unit (A-MSDU)
Dynamic Frequency Selection (DFS)
Cyclic Delay/Shift Diversity (CDD/CSD)
Maximum Ratio Combining (MRC)
Space-Time Block Coding (STBC)
Low-Density Parity Check (LDPC)
Transmit beam-forming (TxBF)
WPA3 |

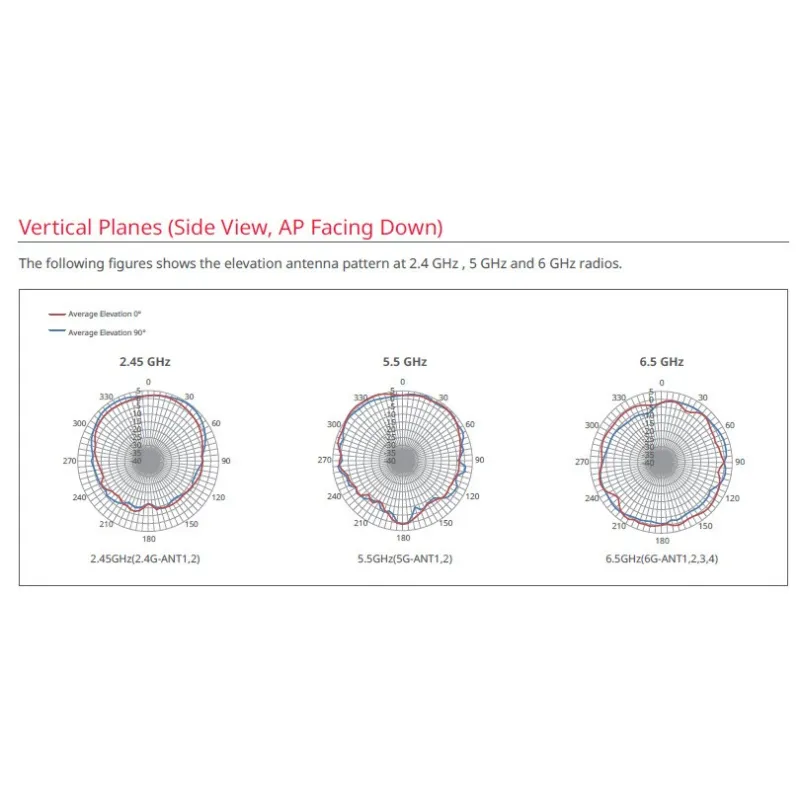

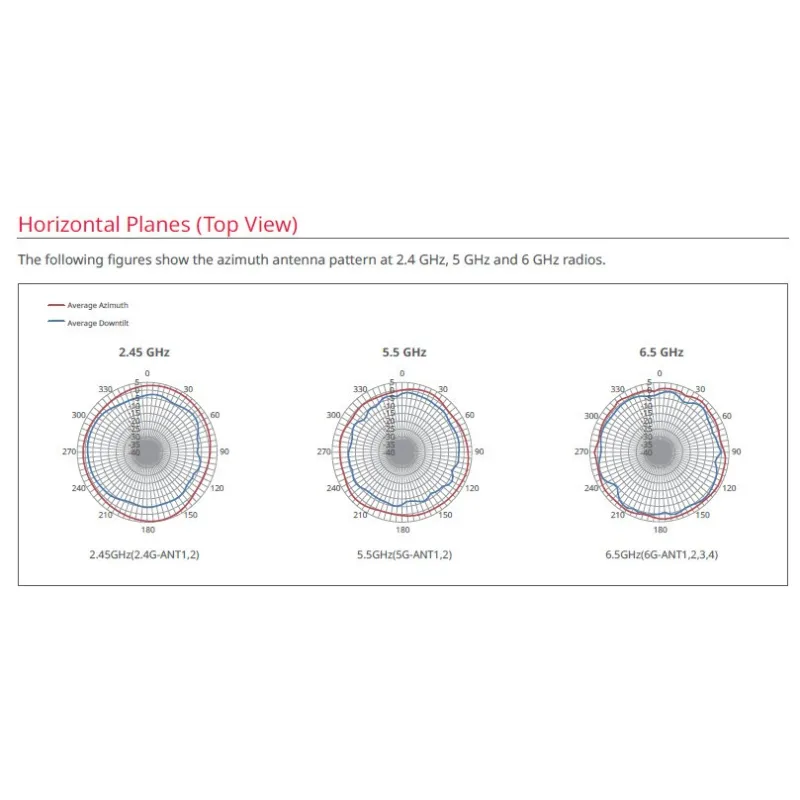

| Antenna | Wi-Fi
2.4 GHz: two built-in omnidirectional antennas, the max. antenna gain is 5.4 dBi.
5 GHz: two built-in omnidirectional antennas, the max. antenna gain is 5.2 dBi.
6 GHz: four built-in omnidirectional antennas, the max. antenna gain is 5.4 dBi. Bluetooth
One integrated vertically polarized omnidirectional antenna, the max. antenna gain is 4.6 dBi. |
| Port | 1 x 100/1000/2500/5000Base-T RJ45 Ethernet port with auto-negotiation
1 x 5GE combo port (SFP port/electrical port), compatibility with 1GE and 2.5GE SFP
1 x 10/100/1000Base-T RJ45 Ethernet port with auto-negotiation
1 x RJ45 console port (serial console port)
1 x USB 3.0 (Type-A connector)
1 x Bluetooth 5.1 |
| Button | 1 x Reset button
Press the button for shorter than 2 seconds. Then the device restarts.
Press the button for longer than 5 seconds. Then the device restores to factory settings. |
| Dimensions (W x D x H) | Main unit: 230 mm x 230 mm x 51 mm (9.06 in. x 9.06 in. x 2.01 in.)
Shipping: 284 mm x 262 mm x 124 mm (11.2 in. x 10.4 in. x 4.9 in.) |
| Weight | Main unit: 1.0 kg (2.20 lbs)
Mounting bracket: 0.1 kg (0.22 lbs)
Shipping: 1.25 kg (2.76 lbs) |
| Input power supply | The AP supports the following two power supply modes:
54 V DC/1.1 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power supply needs to be purchased independently.
PoE input over LAN 1: The power source equipment (PSE) complies with IEEE 802.3af/at/bt standard (PoE/PoE+/PoE++).
Note: If both DC power and PoE are available, DC power is preferred. |
| Power consumption | Maximum power consumption: 40 W
DC power: 40 W, 2.4 GHz radio 2x2, 5 GHz radio 2x2, 6 GHz radio 4x4, LAN 2 for PoE supply, and USB port enabled
802.3bt (PoE++): 40 W, 2.4 GHz radio 2x2, 5 GHz radio 2x2, 6 GHz radio 4x4, LAN 2 for PoE supply, and USB port enabled
802.3at (PoE+): 23 W, 2.4 GHz radio 2x2, 5 GHz radio 2x2, 6 GHz radio 4x4, LAN 2 and USB port that fail to provide power for external devices (PoE out disabled of LAN 2 and USB port disabled)
802.3af (PoE): 12.95 W, 2.4 GHz radio 1x1, 5 GHz radio 1x1, 6 GHz radio 1x1, LAN 2 and USB port that fail to provide power for external devices (PoE out disabled of LAN 2 and USB port disabled)
Idle mode: 10.3 W |
| Environment | Storage temperature: –40°C to +70°C (–40°F to +158°F)
Storage humidity: 5% RH to 95% RH (non-condensing)
Storage altitude: < 5,000 m (16,404.20 ft.) at 25°C (77°F)
Operating temperature: –10°C to +50°C (14°F to 122°F)
Operating humidity: 5% RH to 95% RH (non-condensing)
Operating altitude: < 3,000 m (9,842.52 ft.) at 40°C (104°F)
At an altitude between 3,000 m (9,842.52 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 166 m (546 ft.), the maximum temperature decreases by 1°C (1.8°F). |
| Transmit power | 2.4 GHz
Max. transmit power: 27 dBm (500 mW)
Min. transmit power: 7 dBm (5.01 mW) 5 GHz
Max. transmit power: 30 dBm (1000 mW)
Min. transmit power: 6 dBm (3.98 mW) 6 GHz
Max. transmit power: 26 dBm (398 mW)
Min. transmit power: 9 dBm (7.94 mW) Note: The transmit power adjusted in percentage. The transmit power is limited by local regulatory requirements. |
| WLAN |
| Max. number of associated STAs | 1,536 (up to 512 STAs per radio) |
| Max. number of BSSIDs | 45 (up to 15 BSSIDs per radio) |
| Max. number of WLAN IDs | 15 |
| STA management | SSID hiding
Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.
Remote Intelligent Perception Technology (RIPT)
ntelligent STA identification technology
Intelligent load balancing based on the STA quantity or traffic |
| STA limiting | SSID-based STA limiting
Radio-based STA limiting |
| Bandwidth limiting | STA/SSID/AP-based rate limiting |
| Wireless roaming | Layer 2 and Layer 3 roaming |
| Security and Authentication |
| Authentication and encryption | Remote Authentication Dial-In User Service (RADIUS)
PSK, UPSK and web authentication
QR code-based guest authentication, SMS authentication, and MAC address bypass (MAB) authentication
Data encryption: WEP (64/128 bits), WPA (TKIP), WPA-PSK, WPA2 (AES), WPA3-Enterprise, WPA3-Individual |
| Dynamic Policy | IP standard ACL, MAC extended ACL, IP extended ACL, and expert-level ACL
IPv6 ACL
Time range-based ACL
ACL based on a Layer 2 interface
ACL based on a Layer 3 interface
Ingress ACL based on a wireless interface
Dynamic ACL assignment based on 802.1X authentication (used with the AC)
CoA/DM |
| Routing and Switching |
| MAC | Static and filtered MAC addresses
MAC address table size: 2,048
Max. number of static MAC addresses: 2,048
Max. number of filtered MAC addresses: 2,048 |
| VLAN | Interface-based VLAN assignment
Max. number of SVIs: 200
Max. number of VLANs: 4,094
VLAN ID range: 1–4,094 |
| Network Management and Monitoring |
| Network management | NTP server and NTP client
SNTP client
SNMPv1/v2c/v3
Fault detection and alarm
Information statistics and logging |
| Network management platform | Web management (Eweb) |
| Cloud Management | Uniformly connecting, managing, and maintaining APs, ACs, and other devices, batch device configuration and upgrade, and other functions
Deployment through Zero Touch Provisioning (ZTP) – creating configuration templates and automatically applying configured templates
One-click discovery of the wired and wireless network topology and topology generation |
| Authentication mode | SMS authentication, fixed account authentication, one-click authentication, Facebook authentication, Instagram authentication, voucher authentication, and other authentication modes
Authentication implemented in the cloud, without the need to deploy the local authentication server |
| Customized portal | Customized Portal authentication page for mobile phones and PCs |
